ZWO Dew heater strip for ASI1600

$39.00

The anti-dew heater strip is designed to limit the build up of dew on the front window of the early model ASI cooled cameras. The ant-dew heater is not required for current model ASI1600 cameras.

SKU: ZWO-ANTI-DEW Category:

Description

The anti-dew heater strip is designed to limit the build up of dew on the front window of the early model ASI cooled cameras.

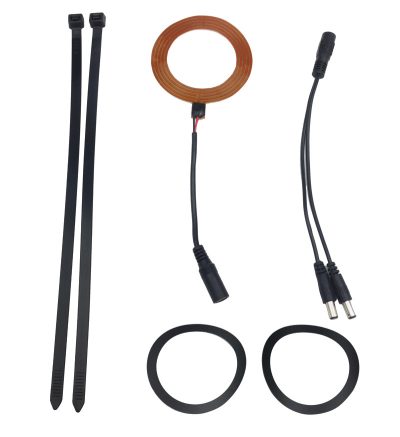

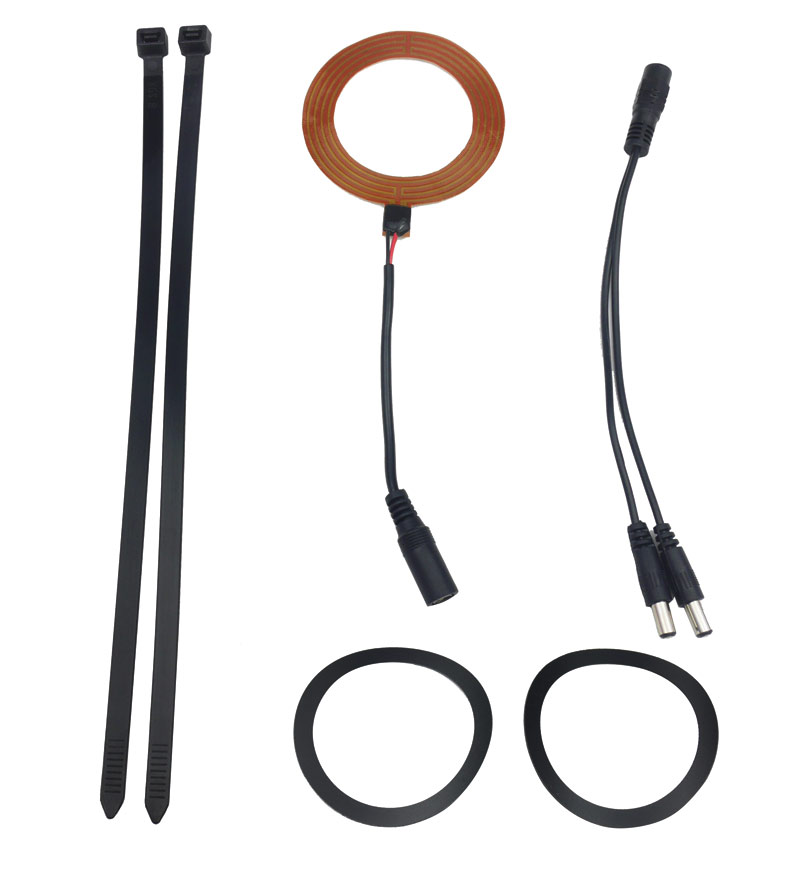

This  kit includes the zip-tie, anti-dew heater strip , an Y power cord and two spacers:

The thickness of the anti-dew heater strip is 0.2~0.3mm.

The “Y” power cord is designed to connect in-line with the cooler power supply for convenience.

The thickness of the spacers is 0.3mm and 0.5mm. They are used for aligning the camera and EFW.

And we recommends 12V at 0.35A  DC adapter where the heating power on the strip is ~4.2 watts.

You can use one and same power cord to power both the fan and heater simultaneously, but make sure not to exceed recommended amount of amps.

How to use it?

1. Tear out the protective film on adhesive tape

Step 1
Step 1
2. Put the anti-dew heater strip on the front facing of the camera and make sure the black cable is in the right position

(lining next to the DC plug at the rear end)

Step 2
Step 2

3. Tie the black cable with a zip-tie on the camera body.

Step 3
Step 3

4. Plug in the power cord, then everything is done.

Step 4
Step 4

5. Now you should be dew-free while shooting with the camera.

Step 5
Step 5

Additional information

Weight 0.2 kg
