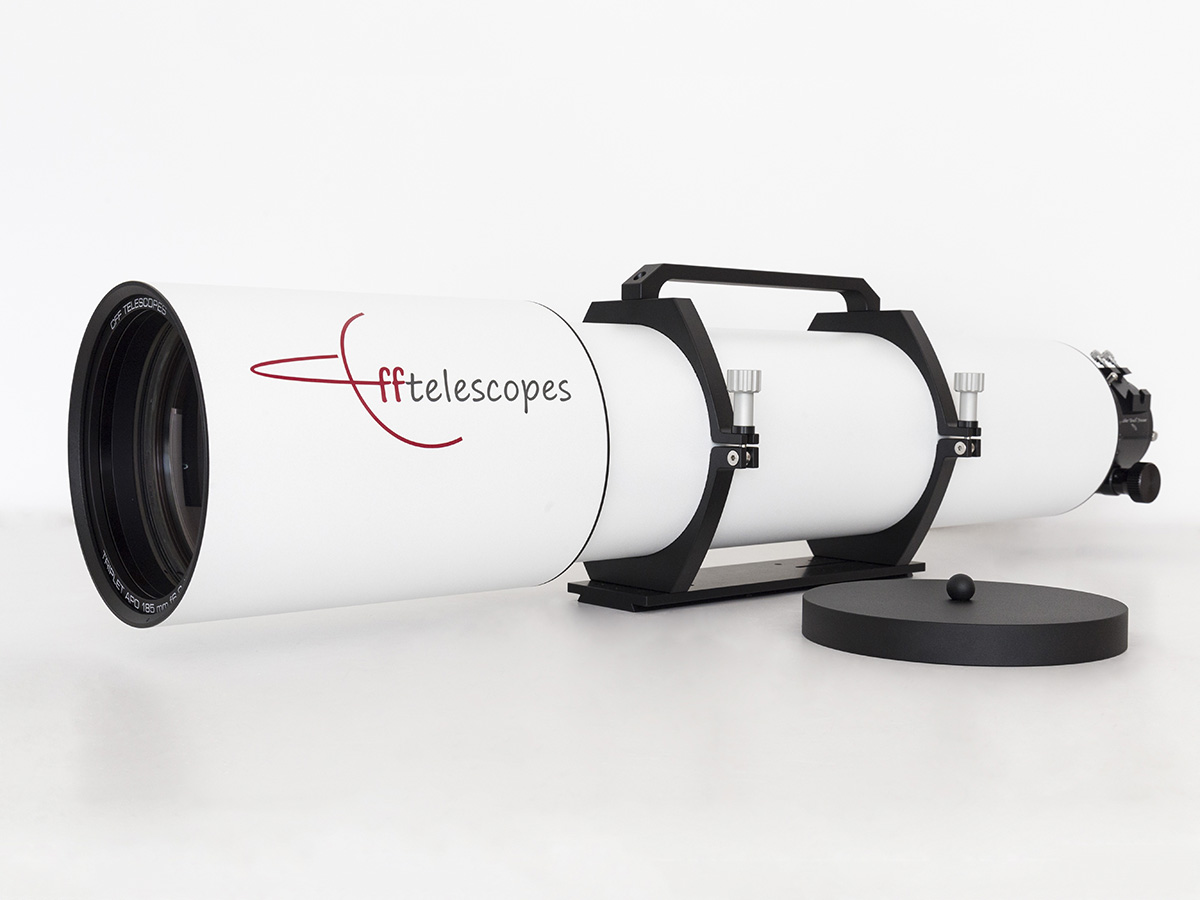

The CFF Telescopes 180mm f/7 Oil-spaced Triplet Refractor is an impressive instrument. Although having a short focal ratio for its aperture, this telescope is highly recommended to astronomers who enjoy a pure visual experience of Moon, planets, double stars and deep-sky objects as well as imagers looking to take advantage of its big aperture and increased resolution. Its cell contains hand-finished European lenses, which provide top quality planetary as well as unrivalled deep-sky views.

Suitable for imaging, the 180mm F/7 paired with the CFF field corrector will deliver a corrected image circle of ~55 mm diameter, allowing use of cameras equipped with full frame or 52mm diagonal chip for capturing wide field deep sky images.

Like all CFF objective lenses, the oil-spaced lens design helps in quickly reaching ambient temperatures, which is a big advantage when using these OTAs in places where significant temperature change can occur during observing/imaging sessions.

Note: this telescope is manufactured on request.

Main features:

  • 3.5″ rack and pinion type focuser from Starlight Instruments
  • dew shield with rotate & lock feature
  • bino-viewer friendly design
  • portable, large size refractor
  • Oil-spaced design for best possible light transmission & highest contrast.



* Overall length and weight depend on focal ratio, back-focus value and focuser

Specifications & technical data:

Core glass used – S-FPL55
Clear aperture – 180 mm
Focal length – 1260 mm
Focal ratio – F/7
Optical Quality (please click for our optical manufacturing specifications)

Dimensions:

Minimum Length – 1160 mm (fully retracted dew shield)
Maximum Length – 1330 mm (fully extended dew shield)
Back-focus – 220mm
Tube diameter – 185 mm
Dew shield diameter – 217 mm
Weight – 17 kg, including rings.

Included items:

Pair of CNC rings, 1 (one) 500mm dovetail – D-type (Losmandy), transport case.

Mechanical accessories: (sold separately)

Dovetail, D-type (Losmandy), 500 mm length, lightweight
Handle, 400mm length

Visual accessories: (sold separately)

A prism or mirror diagonal will be needed, together with good quality eyepieces, to be able to extract the most of your new telescope.
If the ordered telescope has 220mm back-focus, please consider a 50mm extension for single eyepiece visual use and imaging using a field corrector (no reduction/amplification factor).

Imaging accessories: (sold separately)

Field Corrector with Corrected Field = ~55 mm
Electronic focuser control (motor with integrated controller, from Optec)
Adapters and extensions to suit one’s observing and/or imaging needs.
