The Main Advantages of the 2M ScopeDome:
- Simple and fast installation of the dome, dome will be delivered to you assembled and tested, its installation does not require more work than a typical installation of the telescope,
- The dome is ready for operation immediately after unpacking,
- Motors and control card operate from 240VAC,
- The ability to automatically open the shutter on any azimuth using the built-in power ring rotating mechanism (slip ring),
- All the shutter rolls and rotating mechanism are hidden inside the dome to protect it from weather,
- Tightness better then in larger domes, design and production in 3D and CNC technology allowed us to minimize the space between the rotating parts of the dome.

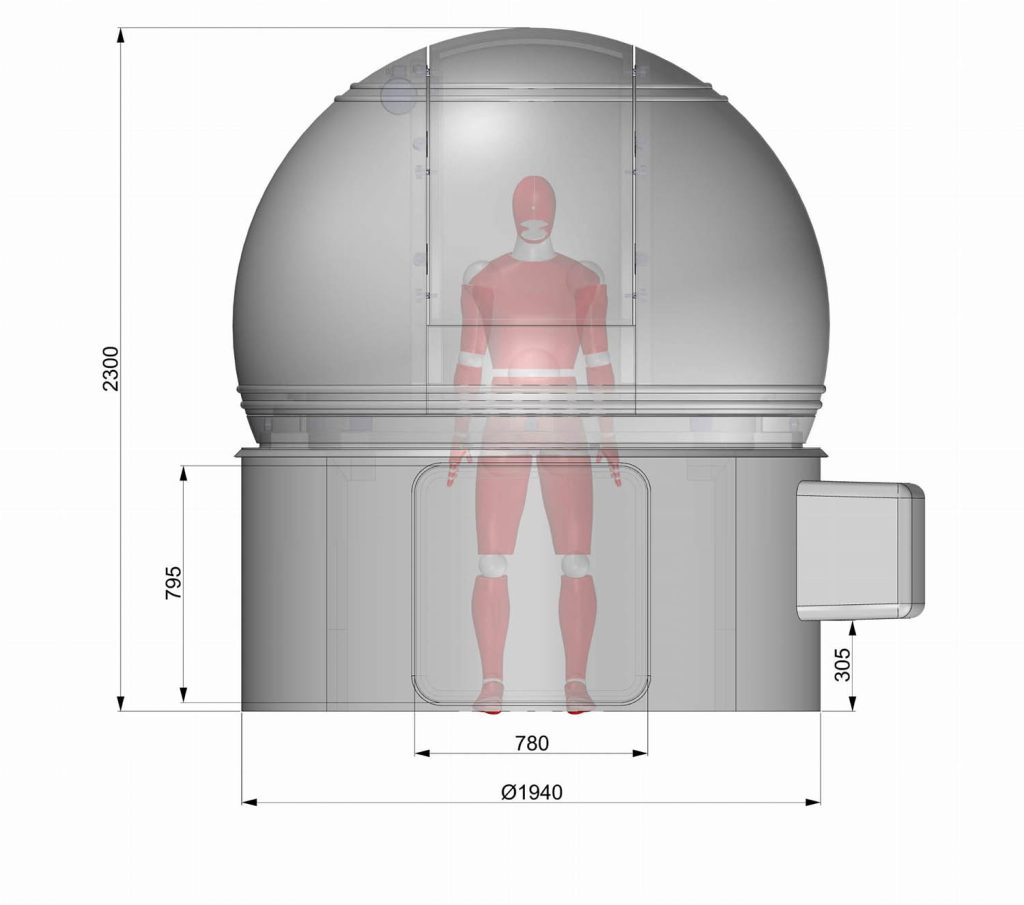

- Diameter of the dome: ~2000 mm
- Shutter width: ~590 mm
- Dome height: ~1400 mm
- Diameter of the base: ~1940 mm
- Diameter of the outer base ring: ~1940 mm
- Diameter of the inner base ring: ~1820 mm
- Weight (with pallet): ~ 250 kg
- Dome and Tower H80 : ~2300 mm
Note: All dimensions are approximate and can be changed by the manufacturer at anytime.
