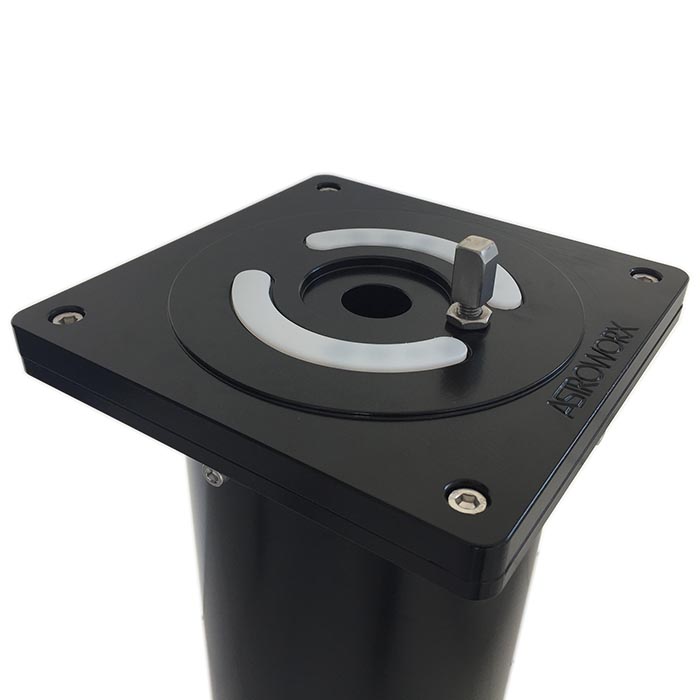

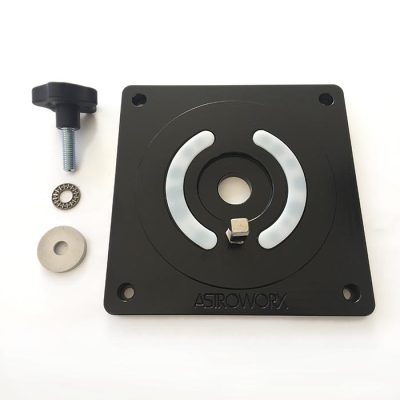

The Astroworx EQ6 Pier Adapter Plate features Delrin Plastic anti-friction mount supports and provides four recessed mounting holes (180mm x 180mm square pattern) to mount the plate. The pier adapter plate also includes four mounting bolts, an Azimuth Adjustment Post and a M12 Centre Bolt with Fluted Plastic Knob and Flat Bearing.

Compatible with all EQ6 Series mounts.

Mounting Pattern is compatible with the following piers:

Specification:

  • Material: Powder Coated Aluminium (Black)
  • Mounting Holes: 4x M8 Recessed,
  • Mounting Hole Pattern: 180mm x 180mm
  • Azimuth Post Hole: M10 Threaded
  • Includes Azimuth Adjustment Post
  • Includes M12 x 40mm Pier Plate Centre Bolt with Flat Bearing.

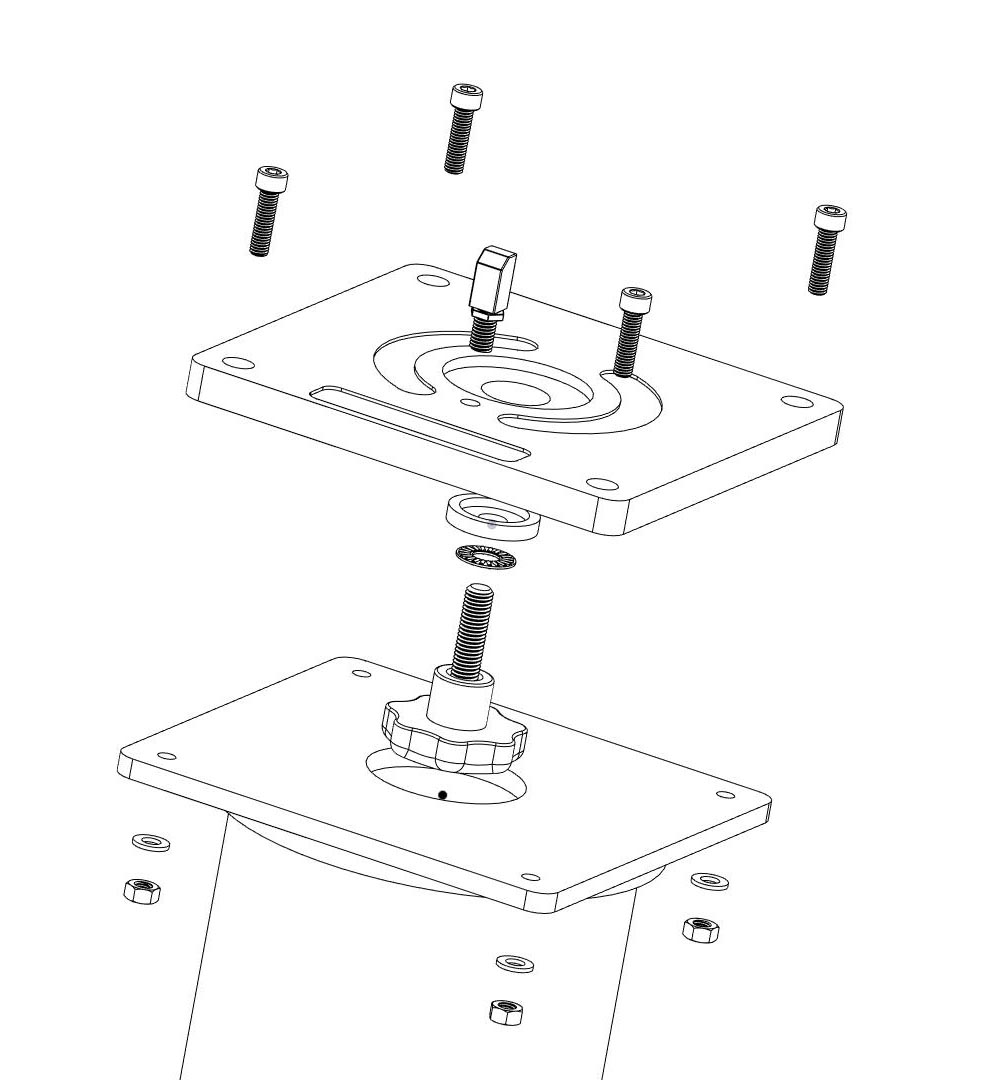

Assembly instructions:

  • Pier plate
  • Azimuth adjustment post and locking nut
  • Centre locking bolt
  • Flat bearing
  • Spacer
  • 4 x M8 plate attachment bolts, washer, nut
