TS-Optics Carbon Double Spider for 283-300 mm inside tube diameter


or 4 fortnightly payments of $69.75 with Afterpay More info

  • Carbon fibre double vanes for maximum stability and minimum diffraction
  • Fits to many secondary mirror cells, for example from TS-Optics, Sky-Watcher, or GSO
  • With central bore for M5 or M6 counter-sunk screws
  • With female threads for 4 collimation screws. 3x M4 knurled thumb screws are included
  • Diameter from female thread to female thread: 281 mm – by using M5 screws of other lengths (not supplied), the spider can be adapted to tubes up to approx. 300 mm inner diameter.

Available on backorder

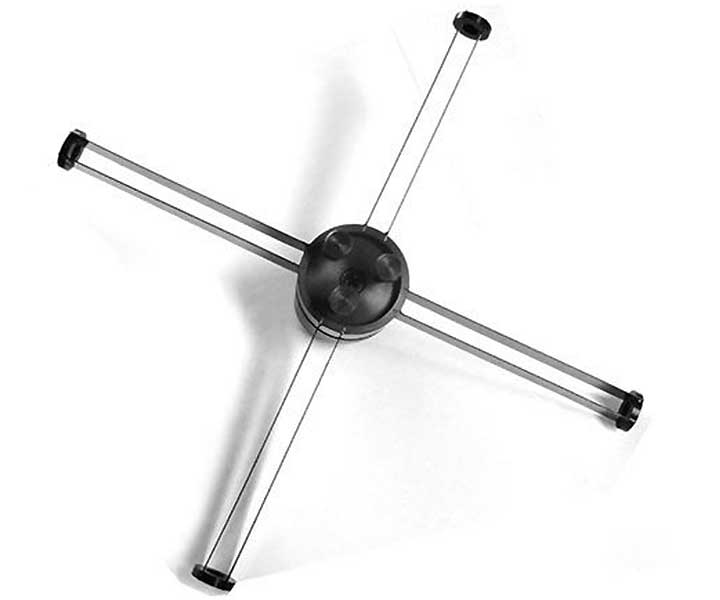

TS Double Secondary Mirror Spider made of Carbon Fiber for highest stability and minimal diffraction effects

Due to the double spider vanes of carbon fibre which have 11 mm distance to each other, the stiffness after mounting matches the one of a metal secondary mirror spider with vanes of 5 mm diameter.

The carbon vanes have a thickness of only 0.4 mm. This means minimal obstruction and extremely fine, subtle spikes around the brighter stars. The diffraction effects caused by the spider remain minimal.

Do twin spider vanes cause twin diffraction spikes at the stars?

Of course not! Once you have attained precise focus both spikes will merge into one very fine spike.

Double spider vanes as focusing aid:

Twin spider vanes are more sensitive to slight blurring due to inaccurate focusing than a single spider vane. This makes focusing on brighter stars easier. As soon as the spikes are clearly merged to one, focus has been exactly reached. Of course, all popular focusing aids, like a bahtinov mask, also work with the double spider.
