The new ZWO 2-inch Filter Drawer features an anti-light-leaking design that can effectively illiminate light leaking issues under long exposure times.

With a 21mm ring insertion length the ZWO 2″ filter drawer replaces the standard 21mm space supplied with ZWO cameras to preserve the 55mm backfocus requirements of most imaging trains.

ZWO 2″ filter drawer includes a M42 * 0.75 external male thread on the camera side, a M48 * 0.75 internal female thread for 2″ mounted filters and a M48 * 0.75 internal female thread on  the telescope side.

The filter drawer also comes with the M48-M42 adapter. You can use it with your camera or your telescope.

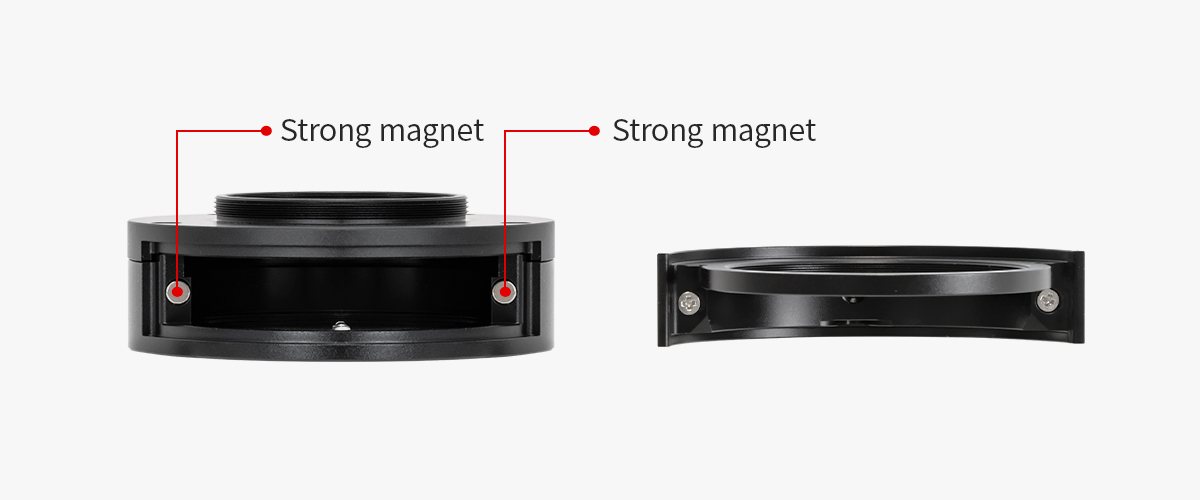

Double strong magnets create stronger adsorption, easier installation and pulling out.

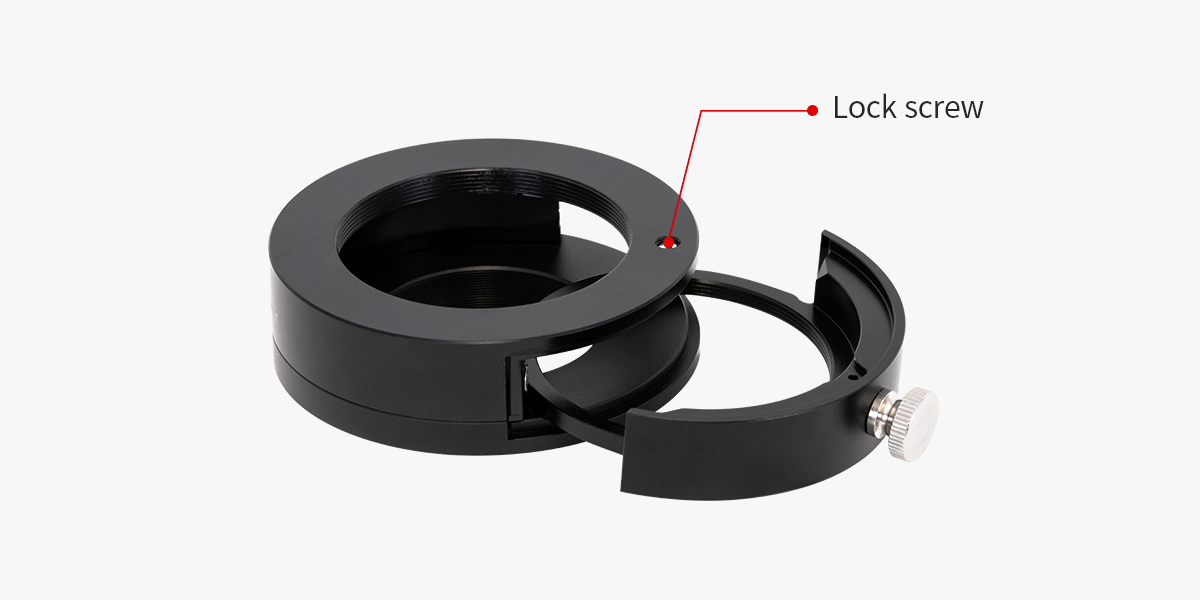

ZWO-FD strong magnetsThe locking screw provides a double insurance for users.

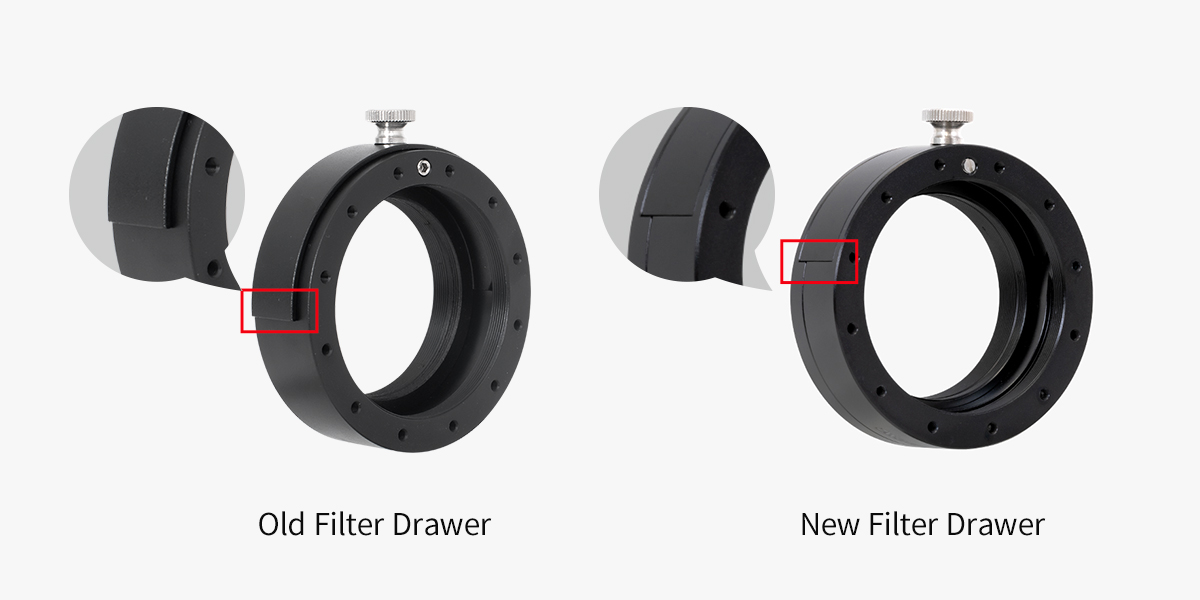

Old and New Filter Draw Comparison

  • Diameter 70mm
  • Thickness 21mm
  • M42 * 0.75 male (external) thread (camera side)
  • M48 * 0.75 female (internal) thread (filter end)
  • M48 * 0.75 female (internal) thread (telescope side)
  • Suitable for 2-inch astronomical filters

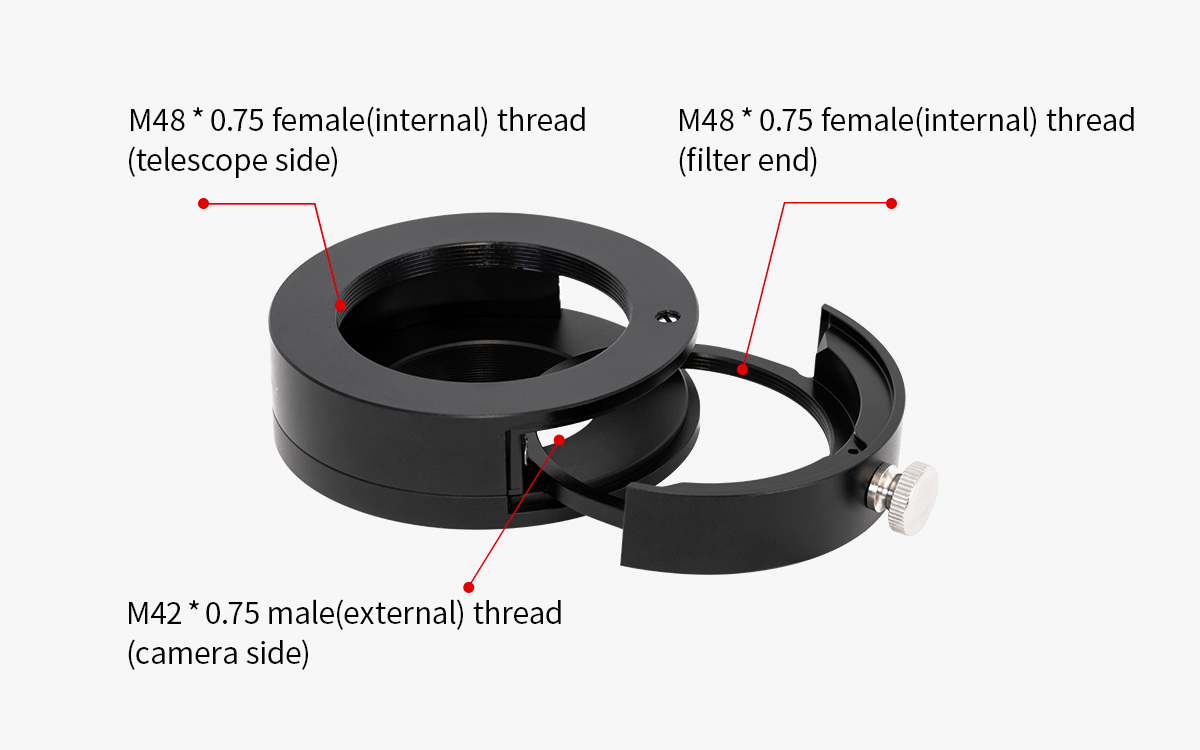

Mechanical Diagram

ZWO-FD-M42-II Threads

ZWO-FD-M42 threads

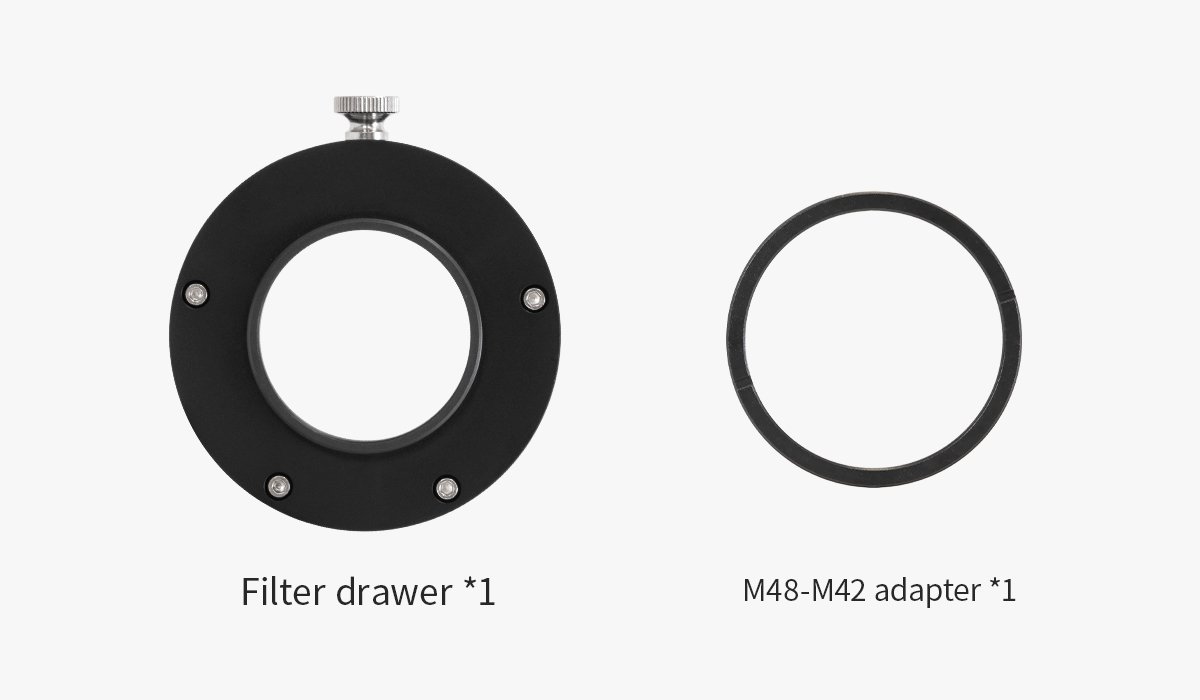

  • Filter drawer
  • M48-M42F adapter

Reviews

There are no reviews yet.

Be the first to review “ZWO 2inch Filter Drawer (M42) Version 2”

Your email address will not be published. Required fields are marked *

ZWO 2inch Filter Drawer (M42) Version 2

SKU: ZWO-FD-M42-II

$139.00

Available on back-order

✅ Fast Shipping & Tracking
✅ Stocked in Melbourne, Australia
✅ Expert Advice
✅ Lifetime Technical Support

    Need Expert Advice?

    Visual Astronomy, Astrophotography, Microscopy and Macro Photography can be a little complicated sometimes as there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!

    Enquire now or call us (03) 9042 2293
