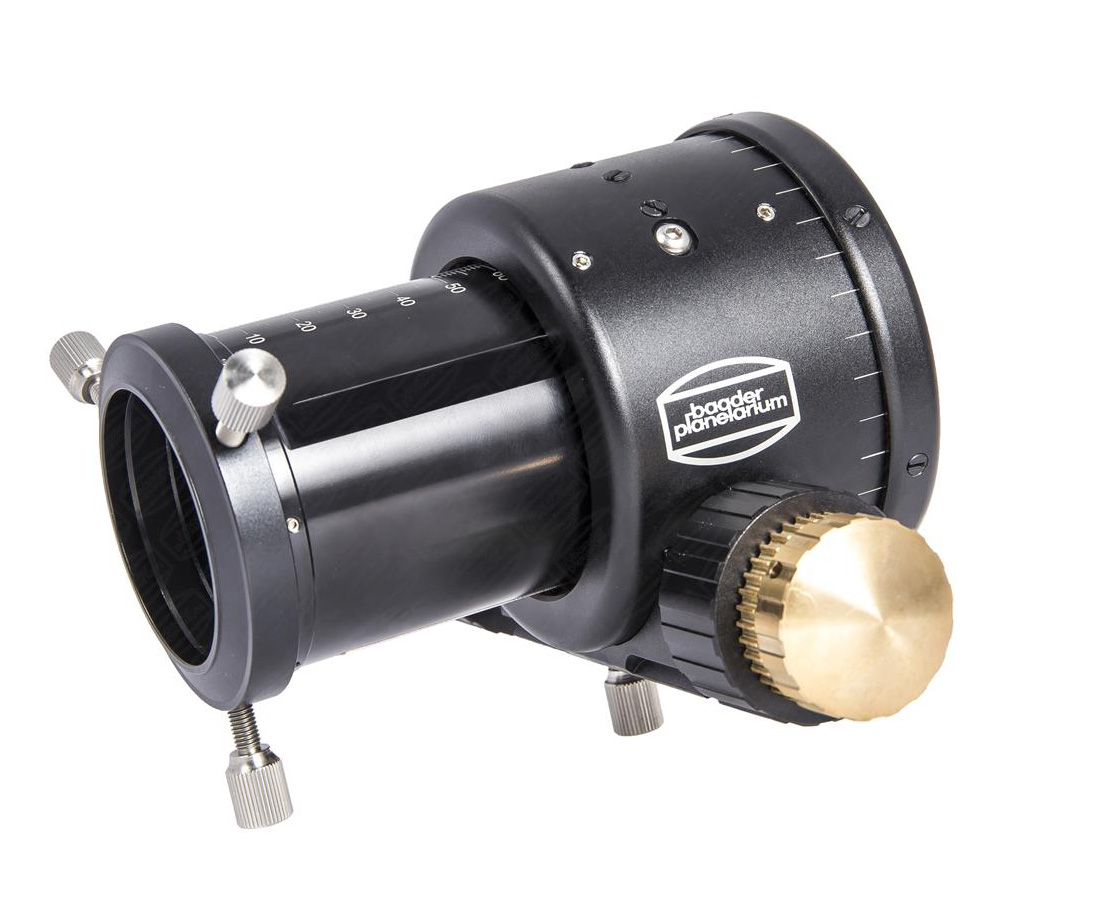

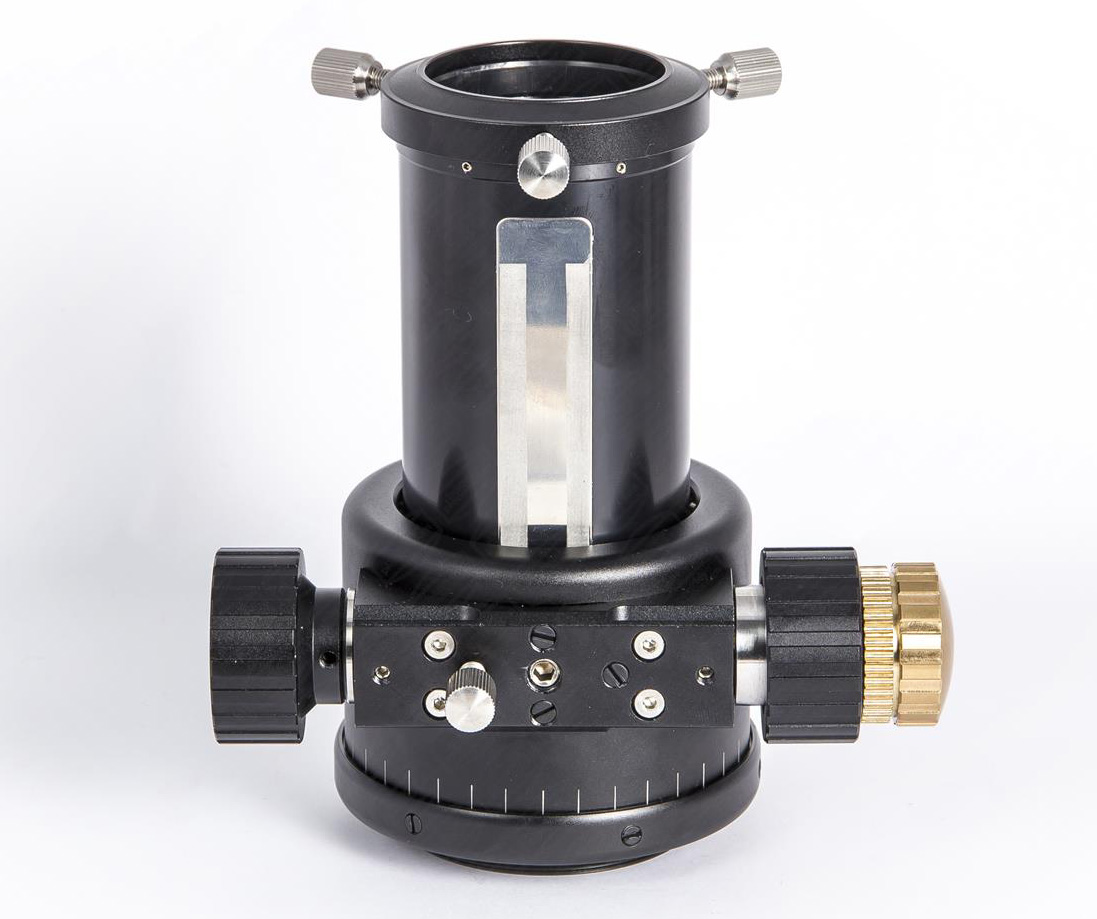

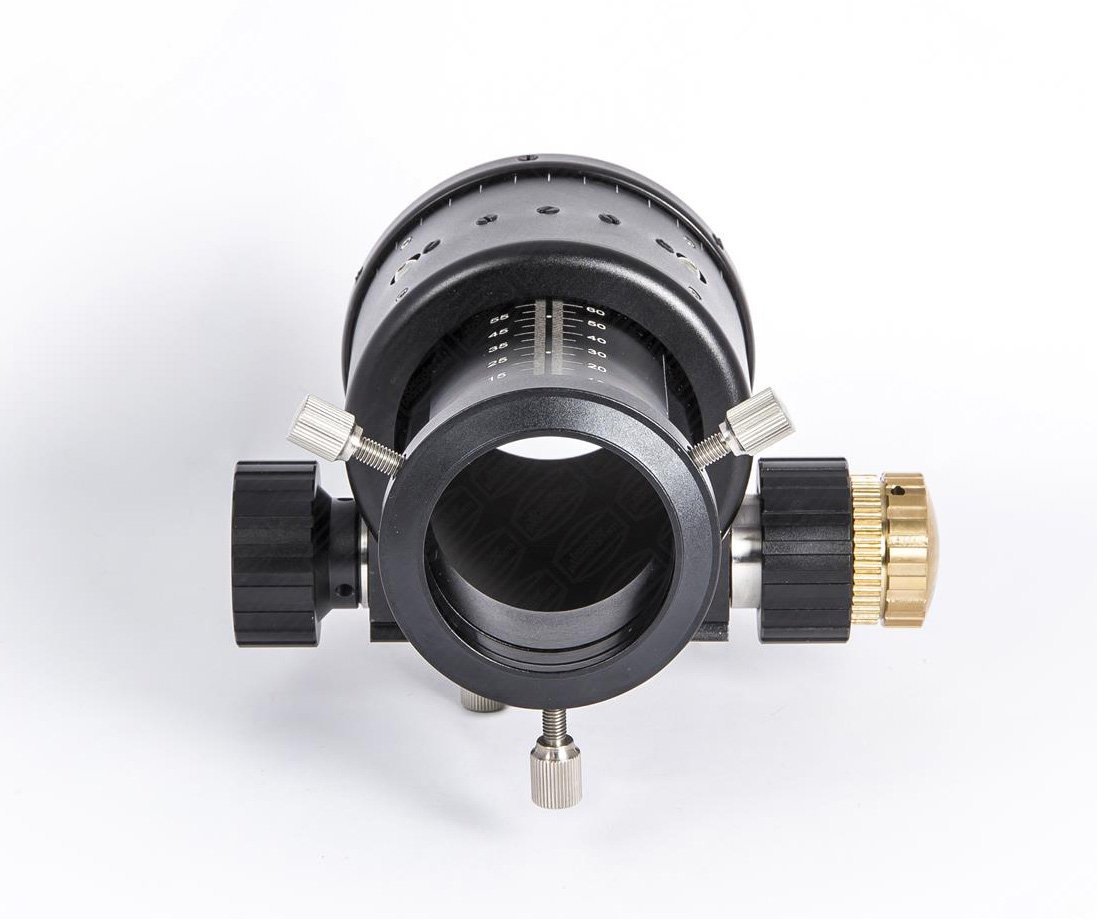

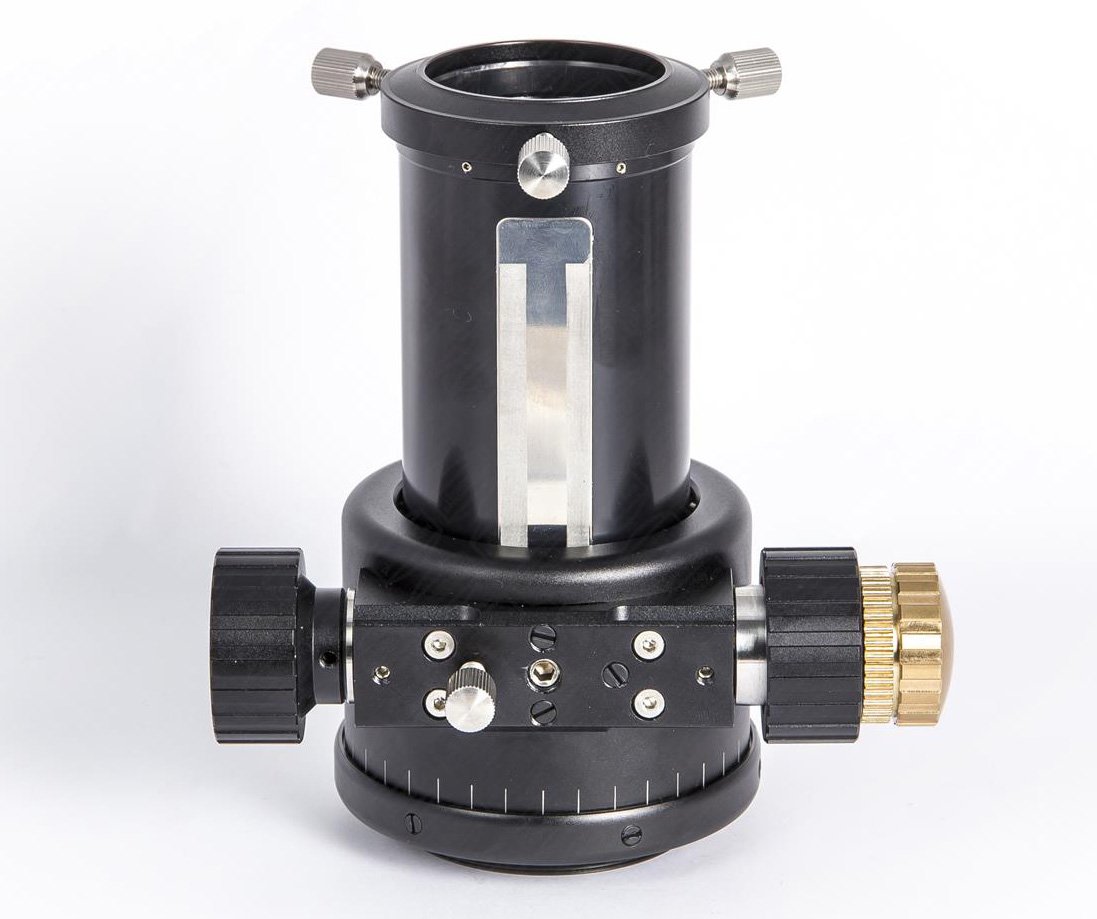

The Baader 2-inch Diamond Steeltrack for Refractors (BDS-RT) is a heavy duty focuser that is backlash free like a Crayford design, but capable of holding a greater weight due to the surface against which the roller presses.

To make the most of the focuser you will need:

• the correct telescope adapter (to allow the focuser to attach to your telescope tube after you have removed the stock focuser)
• the correct eyepiece or camera-side adapter (to allow you to attach whatever equipment will go on). The focuser is supplied with a 2″ compression ring.

The focuser has

• 80 mm focus travel
• Minimum height (as supplied – incl. 2″ compression ring): 78 mm
• Minimum height (with optional S58 to M68 / M68i / M48 / T-2 direct-adapter): 65 mm
• Minimum height (with optional S58 ClickLock clamp): 89 mm
• Focuser weight (as supplied – incl. 2″ compression ring): 1.160 g (40.9 oz)
• Adapters available or under development to fit a wide variety of refractor telescopes

Drive system

• True diamonds form a micro-geared high precision drive system never accomplished before
• In comparison to conventional crayford or rack & pinion drives, this micro-geared movement has zero backlash, zero cogging, and zero flexure
• Diamond Steeltrack 2″ focusers lift a payload of 6kg (13 lbs) straight up, without slipping, without excessive bearing preload (bearing preload can be increased further if necessary)
• Bearing system utilizes unbreakable Instrument Grade Roller-Bearings instead of simpler Ball Bearings – handles higher loads with greater rigidity and accuracy. No Teflon-pads anywhere
• 1:10 Stainless Steel fine-focus mechanism, ready for attachment of the optional Diamond Steeldrive temperature-compensating motor drive system
• Detachable drive block assembly is reversible for right hand or left hand fine-focus operation and for attaching the Diamond Steeldrive motor block
• Shortest possible mechanical design achieves optimum balance between focuser height (backfocus) and rigidity requirements
• Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment

Clamping system

• S58 Dovetail ring-clamp built into focusing tube for accepting optional T-2 / M48 / M68 and other S58 direct-thread adapters to enable direct thread connection of accessories and cameras without 2″ clamp
• 2″ eyepiece clamp with hardened bronze clamp ring (length of clamp: 12.5mm / ½”) included as standard
• Optionally available 2″ Baader Clicklock-clamp w. integrated S58 dovetail (added length: 16mm / 5/8″)
• Two auxiliary threads (M60x1 and M55x0,75) cut into the RT & NT focusing-tube for attachment of dedicated field flatteners or focal reducers/correctors

Focusing Drawtube:

• Each bearing individually adjustable for precise alignment of mechanical vs. optical axis
• Ultra-hard subzero coated bearing races – precision milled and much harder than anodizing or stainless steel
• Oversized 55mm inner clear diameter, to prevent vignetting, with anti-reflection knife-edge baffles
