New Release: Upgraded ZWO ASI6200 Pro Colour Camera – Full-Frame Imaging Power

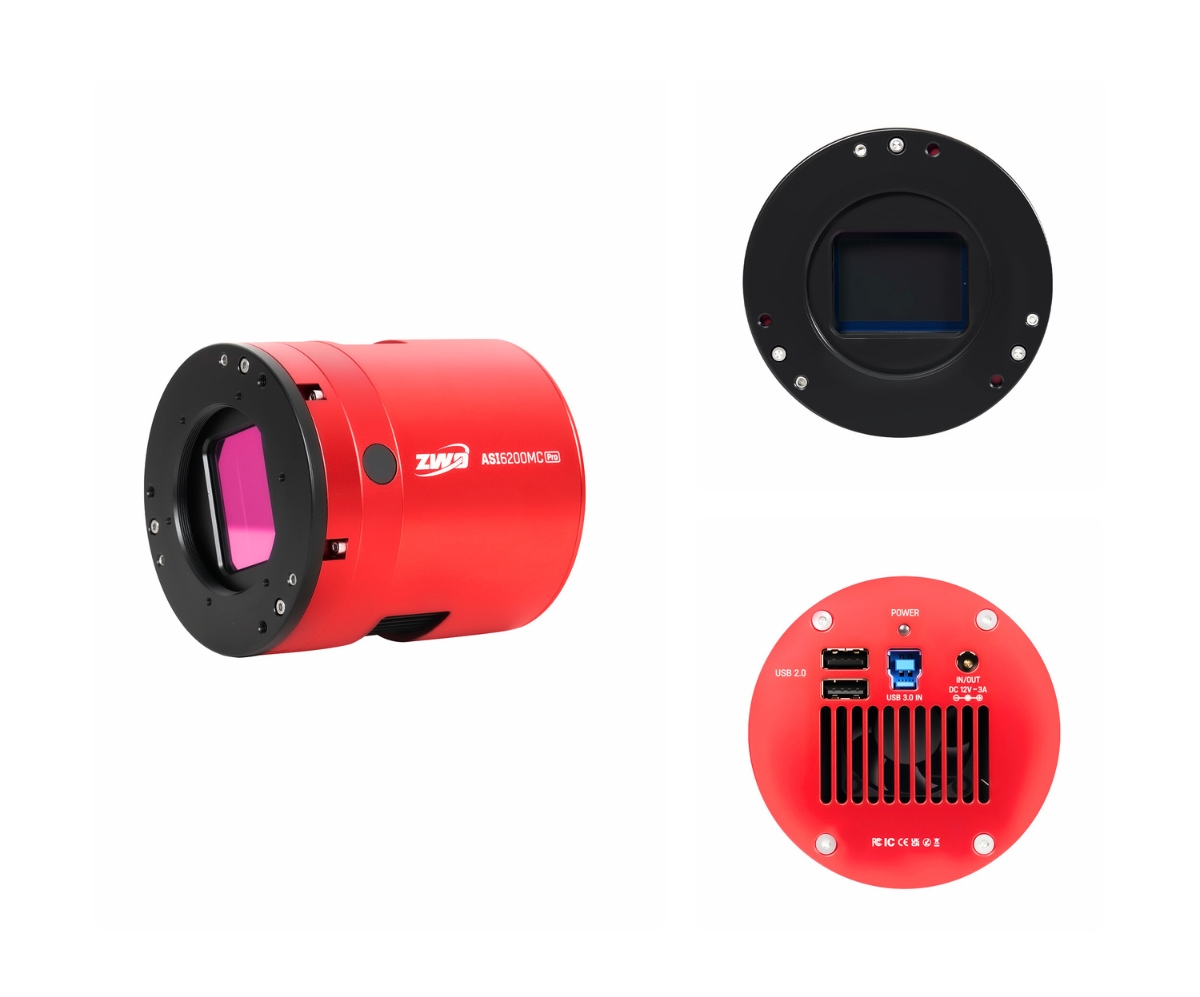

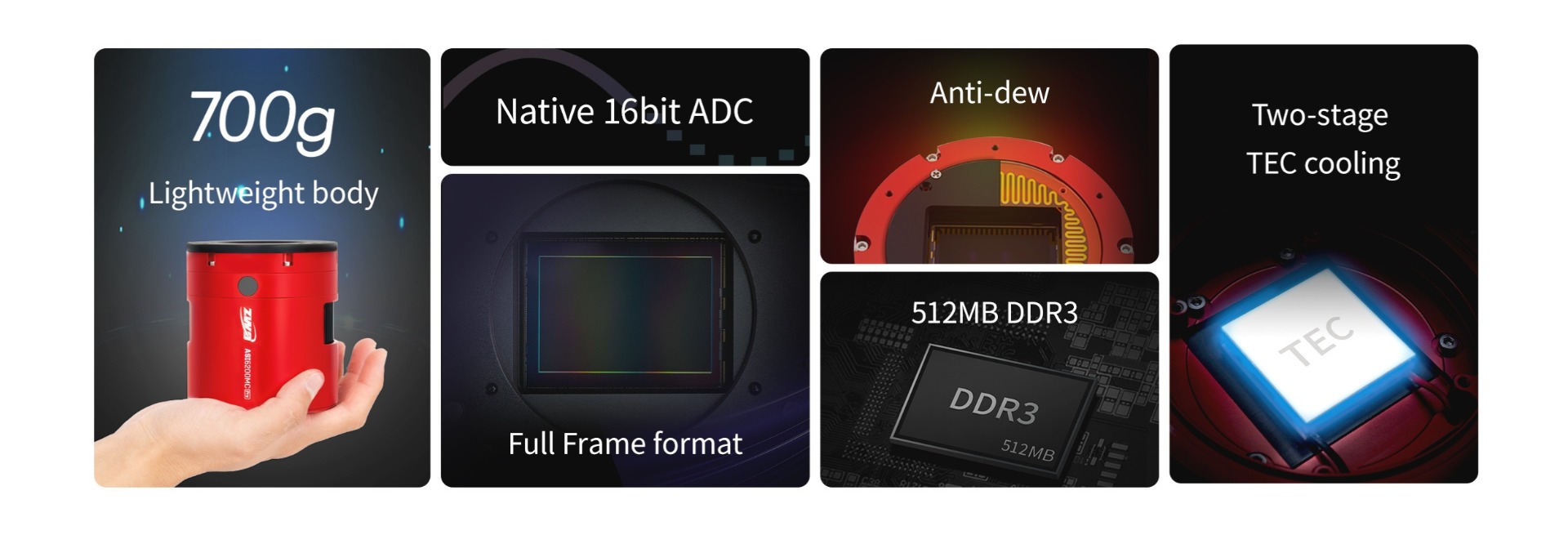

The upgraded ZWO ASI6200MC Pro Colour is the latest version of ZWO’s flagship full-frame cooled astronomy camera. Formerly known as the ASI6200MC Pro, this new release features a sleek matte finish and redesigned internal circuitry that enhances imaging stability and performance. Despite its full-frame capabilities, the camera weighs just 700 grams—ideal for portable setups that demand professional-level results without adding extra weight.

High Resolution Meets Refined Sensitivity

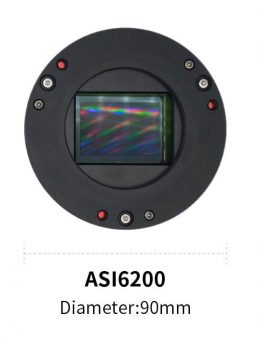

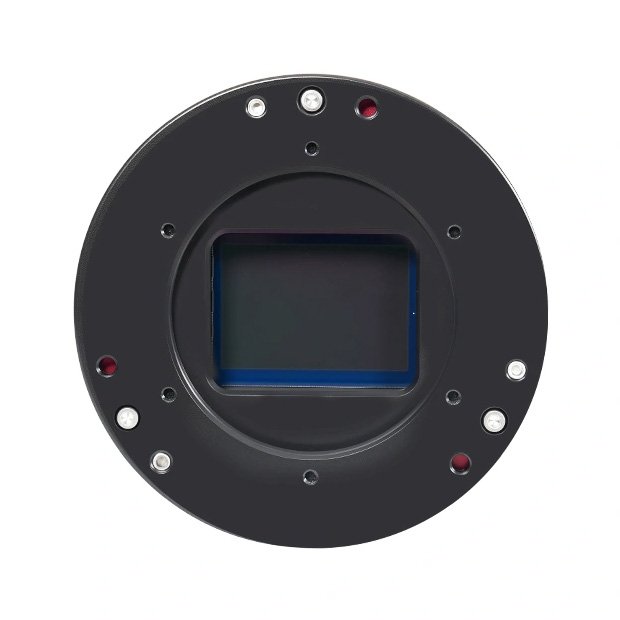

At the heart of the ASI6200MC Pro is the powerful Sony IMX455 back-illuminated CMOS sensor, delivering a massive 62MP resolution and 3.76μm pixels. This pixel size strikes the perfect balance between sharp detail and high sensitivity, ideal for capturing wide-field deep-sky targets with excellent clarity.
ZWO’s Zero Amp Glow design eliminates glow from the corners of long exposures, giving you cleaner data and reducing time spent correcting artefacts during post-processing.

Stunning Image Quality and Tonal Control

• True 16-bit ADC with up to 14 stops of dynamic range, letting you retain fine details in faint nebulae and bright stars alike.

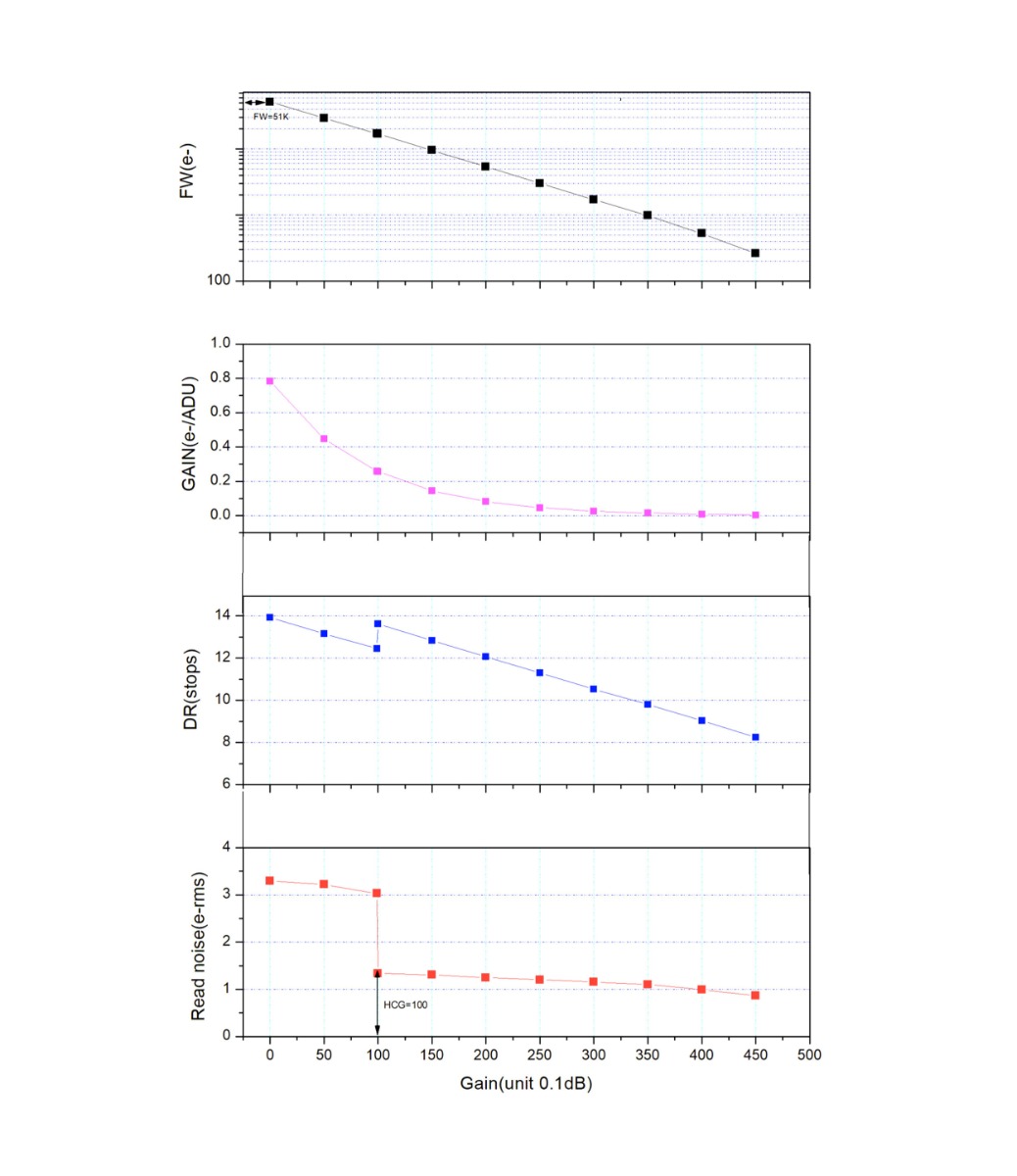

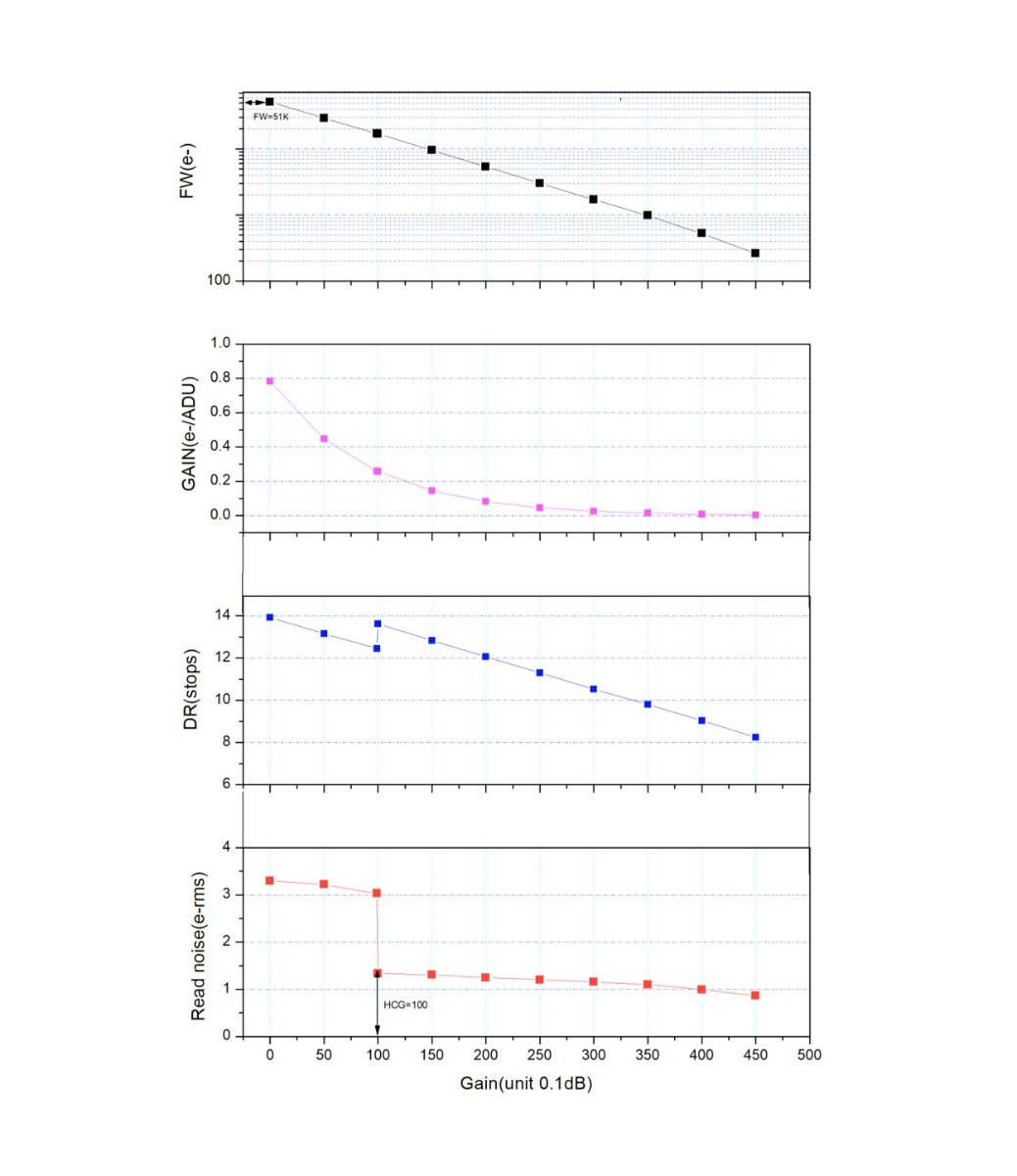

• High Conversion Gain (HCG) mode automatically activates at Gain 100, reducing read noise without compromising dynamic range—ideal for deep-sky work.

• Pixel resolution enables exceptional image sharpness across the entire full-frame sensor, perfect for everything from galaxies to lunar surface shots.

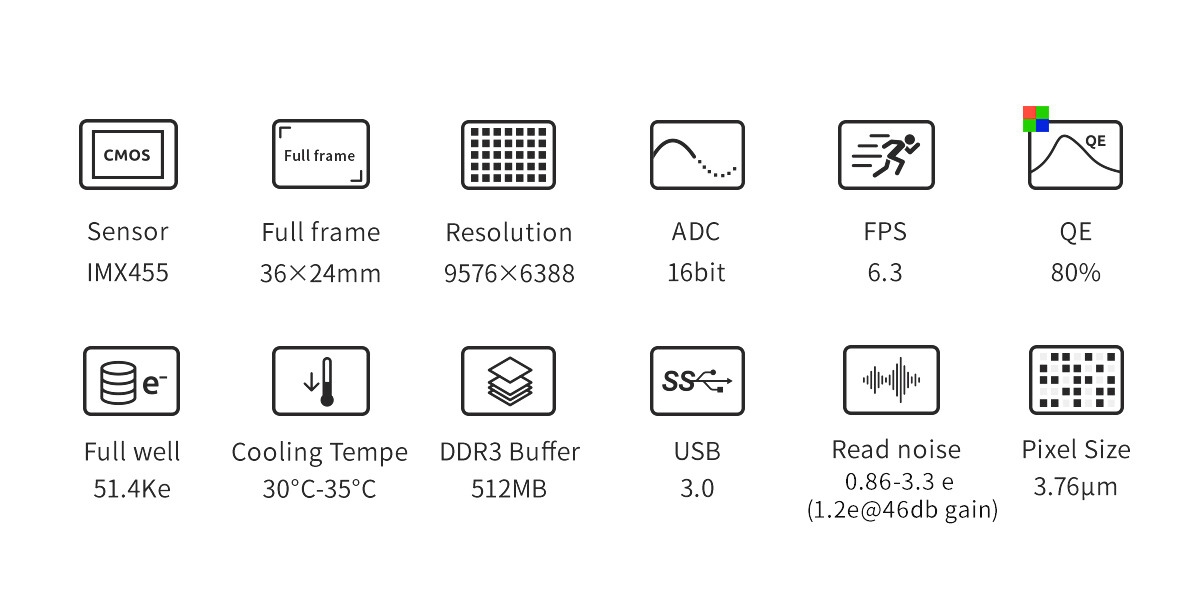

Professional-Grade Performance Features

• Read noise as low as 1.2e, scaling up to just 3.5e, lets you capture faint details even in shorter exposures.

• Two-stage thermoelectric cooling reaches up to -35°C below ambient, cutting thermal noise in long exposures.

• 512MB DDR3 memory buffer ensures stable data transfer and prevents dropped frames during large file captures.

• Full well depth of 51,400e delivers smooth tonal transitions and protects highlights from clipping.

• Peak QE of 80%, ensuring efficient light capture across visible wavelengths.

Versatile Across Imaging Styles

While engineered for deep-sky imaging, the ASI6200MC Pro also performs remarkably well in planetary imaging. Its fine pixel scale, low noise, and full-frame format make it one of the most versatile cameras available for advanced astrophotographers. ZWO recommends using Gain 0 or Gain 100 for optimal performance in deep-sky imaging.

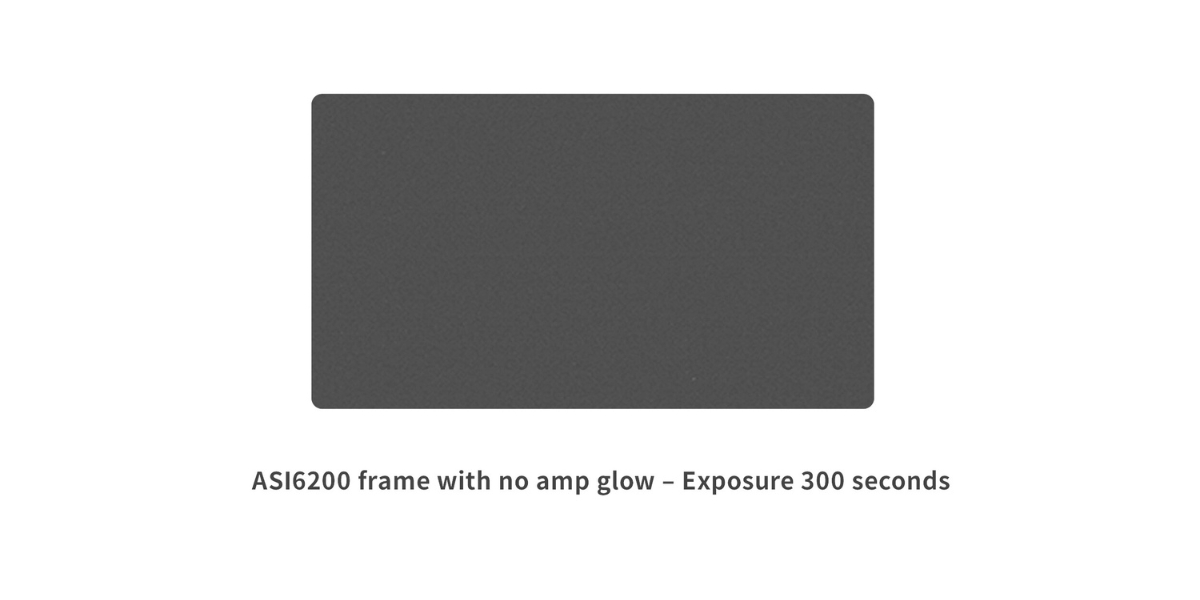

Zero Amp Glow for Cleaner Data

The ASI6200 Pro’s advanced back-illuminated sensor and optimised internal design completely eliminate amp glow—even during long exposures or at high gain. When paired with its ultra-low read noise, this ensures exceptionally clean images straight out of the camera, reducing the need for heavy post-processing. It’s a major benefit for astrophotographers chasing sharp, low-noise results in both narrowband and broadband imaging.

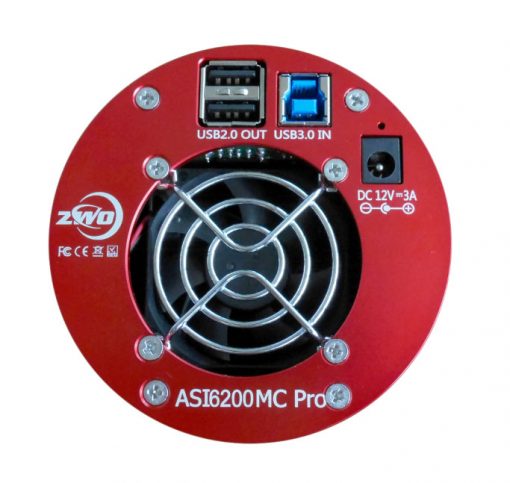

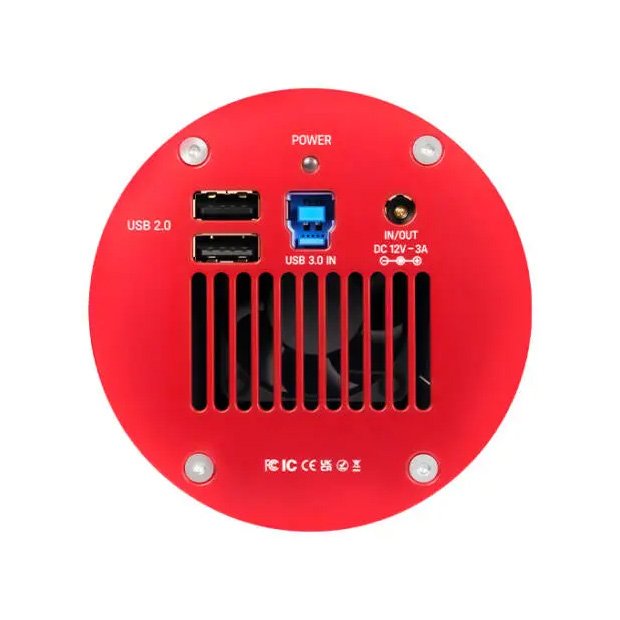

Connectivity and Compatibility

• USB 3.0 high-speed interface for fast data transfer.

• Standard M54 x 0.75 thread, compatible with ZWO’s filter wheels, adapters, and accessories.

• 6.5mm back focus, allowing flexible configuration for a wide range of optical setups.

Why Choose the Upgraded ZWO ASI6200 Pro?

If you’re after ultra-high resolution, clean long exposures, low read noise, and wide compatibility—all in a lightweight full-frame design—the ASI6200MC Pro Colour delivers in every category. This upgraded version builds on ZWO’s proven platform with better electronics and a sleek design to match its powerful performance.

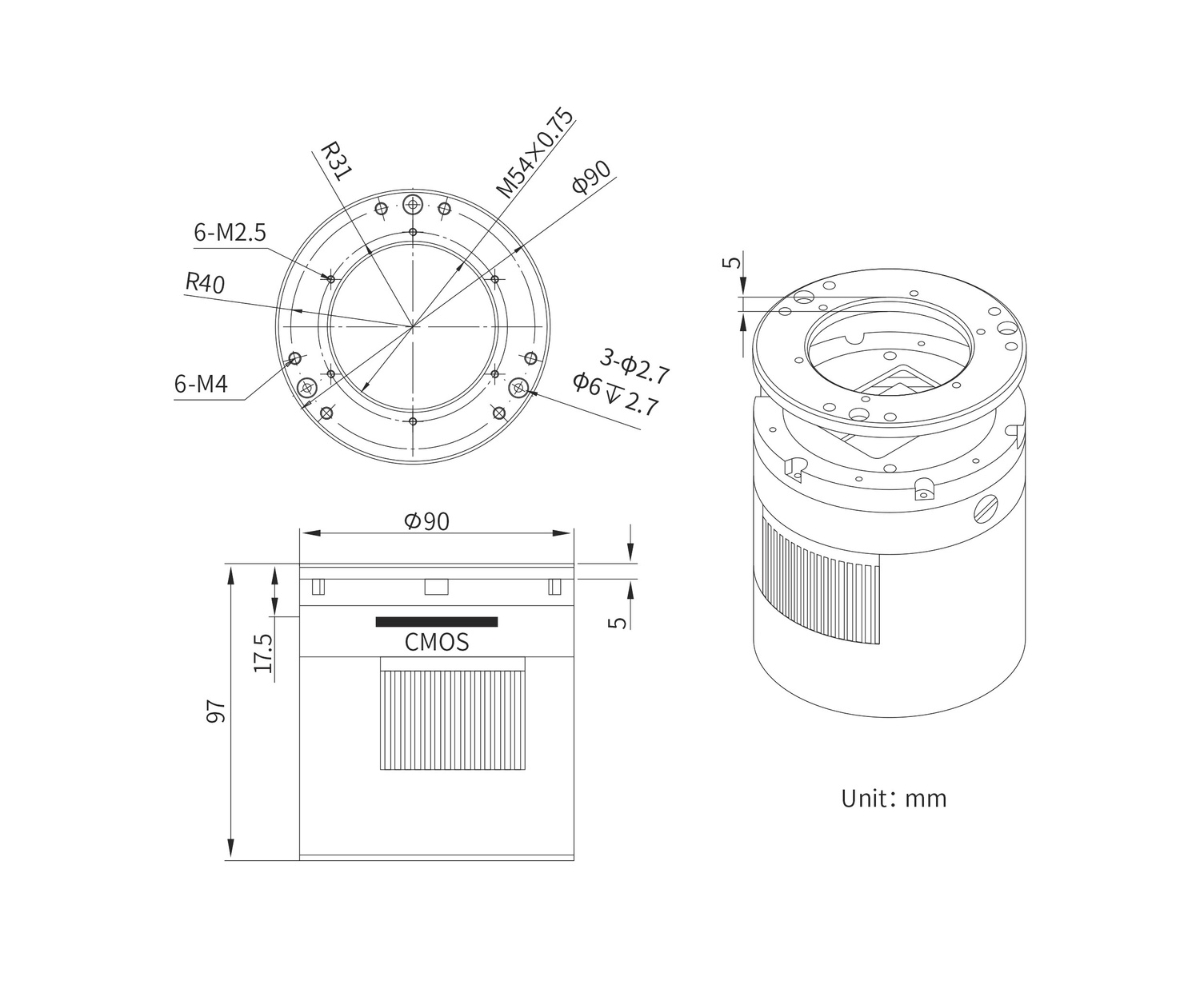

Mechanical Diagram
