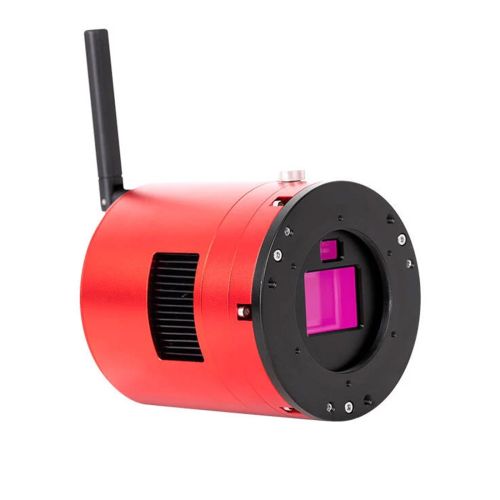

ZWO ASI2600MM Air – Monochrome Performance, Wireless Control

ZWO designed the ASI2600MM Air as a powerful monochrome smart camera for deep-sky imaging. It runs on Sony’s high-performance IMX571 sensor and includes built-in autoguiding and a fully integrated control system—all within a compact, cable-efficient design. With wireless control, onboard storage, and smooth compatibility with complex setups, it delivers professional results without the clutter or complexity.

Sony IMX571 Monochrome Sensor

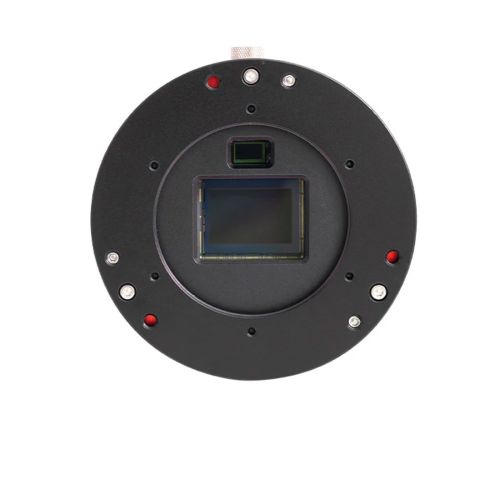

The ASI2600MM Air features the renowned Sony IMX571 monochrome sensor, delivering 26MP resolution at 6248 × 4176 pixels. This APS-C format CMOS sensor measures 23.5mm × 15.7mm with a 28.3mm diagonal, offering a generous field of view ideal for deep-sky targets. With 3.76μm pixels, it strikes the perfect balance between fine detail and strong sensitivity. A native full well depth of 50,000 electrons – expandable to 73,000 in extended mode—gives you outstanding dynamic range, capturing bright stars and faint nebulae together without sacrificing highlights or shadow detail.

Integrated SC2210 Guide Sensor

ZWO built the ASI2600MM Air with its trusted SC2210 guide sensor onboard—the same high-performance sensor used in the ASI220MM Mini. It reaches a peak quantum efficiency of 92% at 500nm and keeps read noise as low as 0.6e. Thousands of astrophotographers have tested its sensitivity and precision in the field, proving it delivers reliable, accurate tracking. By integrating the guide sensor directly into the camera, ZWO simplifies your setup, reduces cable clutter, and improves portability.

Exceptional Sensitivity with High Quantum Efficiency

The ASI2600MM Air captures faint detail with impressive sensitivity, reaching a peak quantum efficiency of around 91%. This makes it an excellent choice for narrowband and low-light imaging, pulling in more signal from distant galaxies, nebulae, and emission lines. ZWO coats the sensor’s front window with an anti-reflective (AR) layer to boost light transmission and protect the sensor, delivering clean, high-contrast images across the visible spectrum.

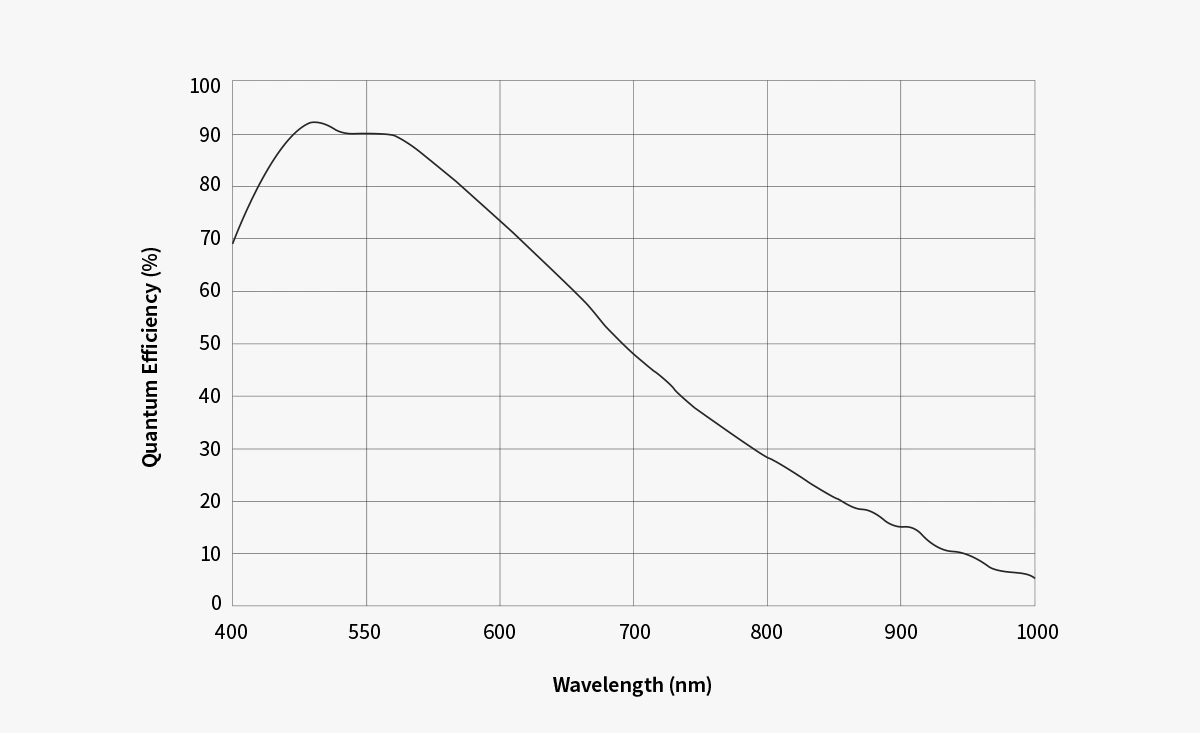

Main Sensor (QE)

Guide camera (QE)

Robust Internal Storage and Versatile Power Distribution

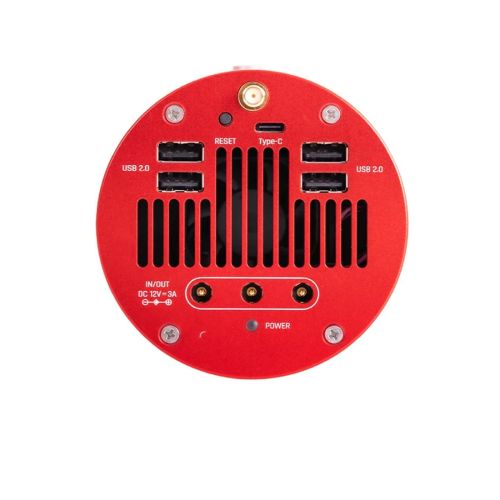

The ASI2600MM Air comes equipped with 256GB of onboard eMMC storage, giving you ample space for hours of long-exposure imaging or capturing multiple targets in one session. For even more capacity, you can connect up to 1TB of external USB storage using any of the four built-in USB 2.0 ports. Additionally, ZWO includes three DC 12V 10A power ports, letting you run your camera, mount, dew heaters, and other gear from one stable, centralised hub. To ensure reliable operation, ZWO rigorously tested this configuration, delivering consistent performance throughout extended imaging runs.

Wireless Freedom with Dual-Band Wi-Fi and Bluetooth

The ASI2600MM Air features a built-in external antenna that supports both 2.4GHz and 5GHz Wi-Fi, delivering fast and reliable wireless connections within a 20-metre range. It also includes Bluetooth, allowing you to pair directly with ZWO AM3 and AM5 mounts. This wireless integration reduces cable clutter and simplifies your setup, resulting in a cleaner, more efficient imaging rig that’s easy to configure and manage.

Cross-Platform Compatibility and ASIAIR Smart Control

This camera is fully compatible with the ASIAIR app, giving you complete wireless control over your imaging session via your smartphone or tablet. From focusing and slewing to guiding and capture automation, every aspect of your workflow is available through a clean, intuitive interface. The ASI2600MM Air also connects to ZWO’s ASIStudio suite on PC and supports third-party software through the ASCOM Alpaca protocol, provided ASCOM version 6.6 or higher is installed. Whether you prefer mobile imaging or traditional PC-based control, this camera adapts to your workflow.

Real-Time Live Stacking and Direct Image Sharing

The ASI2600MM Air supports intelligent live stacking during your session, letting you view the progress of your image in real time as each subframe is added. You can adjust histogram levels, contrast, and brightness live, then immediately share your final results to social media platforms or astrophotography communities. This makes the entire imaging process – from planning to publication – faster, easier, and more rewarding.

Experience Deep-Sky Imaging Like Never Before

With its high-resolution monochrome sensor, built-in autoguiding, powerful internal storage, and wireless control, the ASI2600MM Air stands as one of the most advanced and user-friendly monochrome astrophotography cameras available. Whether you’re a seasoned imager chasing narrowband targets or a passionate beginner ready to take the leap into serious deep-sky work, this camera delivers the power, flexibility, and precision to capture the universe in incredible detail.

Technical Information

Dark Current

Power Consumption

IR-Cut Coating for the ZWO ASI2600MM Air



Frame Rate

Camera Specifications

BackFocus (56mm)

Mechanical Diagram
