New & Improved ZWO ASI6200 Pro Mono – Precision Imaging, Full-Frame Power

The ZWO ASI6200 Pro Mono is the upgraded version of ZWO’s flagship full-frame monochrome camera, formerly known as the ASI6200MM Pro. This latest model features a stylish matte finish and redesigned internal electronics that enhance stability, thermal control, and overall performance.

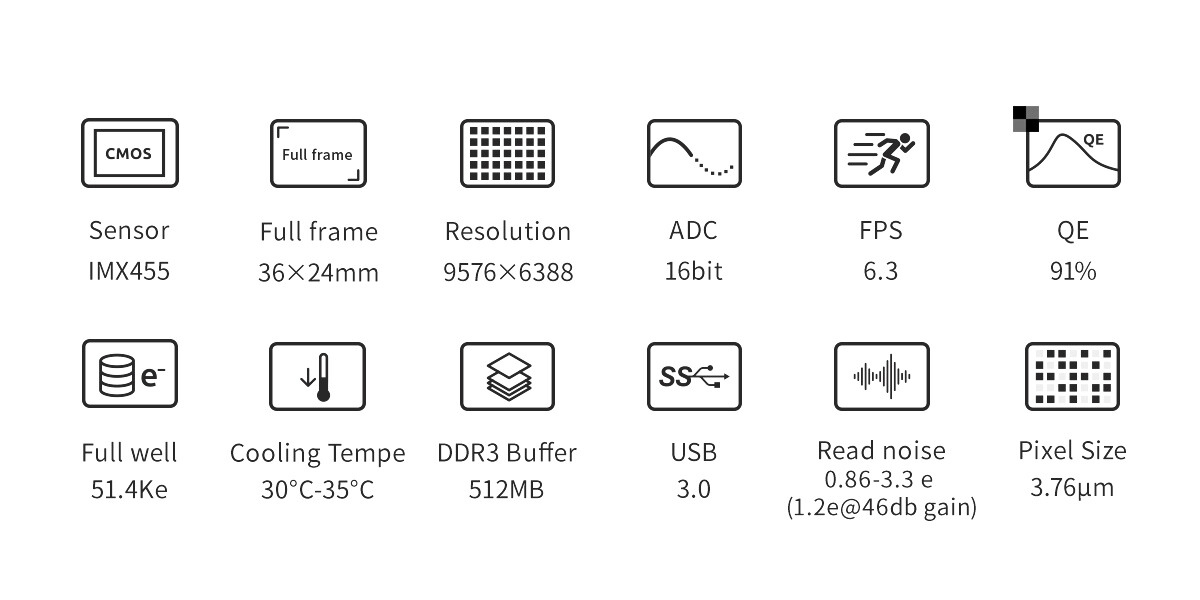

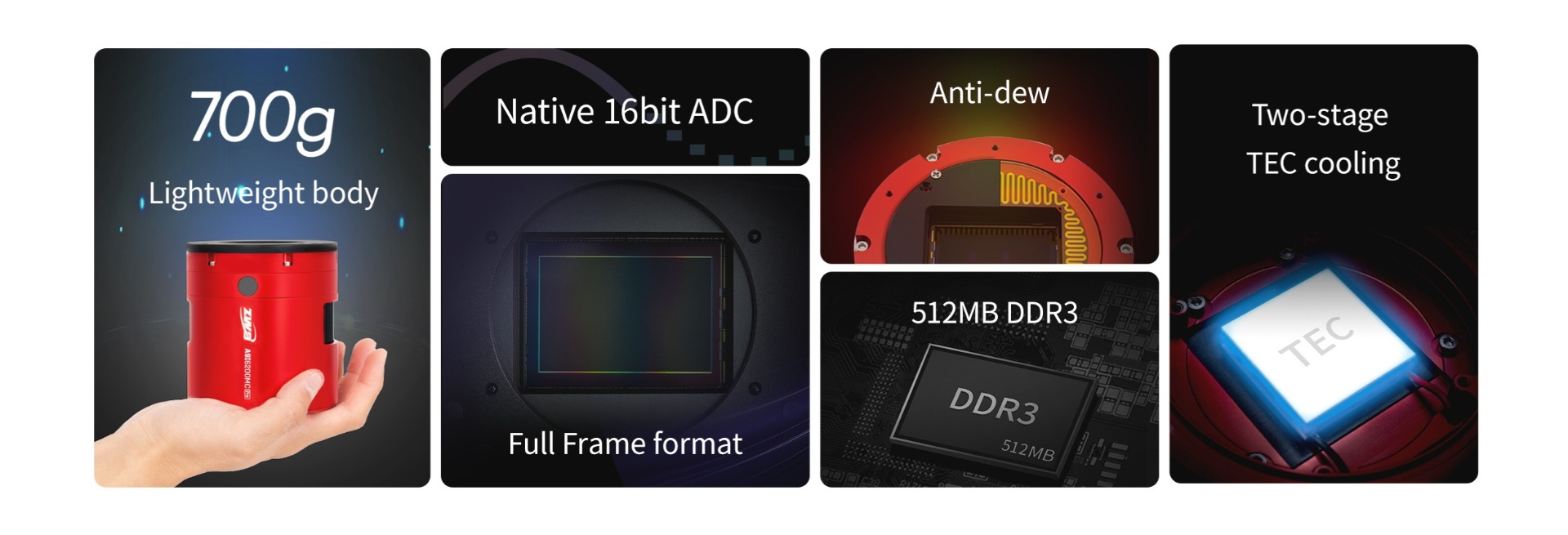

At just 700g, the ASI6200 Pro Mono remains one of the lightest full-frame cooled cameras available—perfect for both observatory setups and portable rigs. Despite its compact build, it houses the powerful Sony IMX455 monochrome sensor, offering 62MP resolution, a 3.76μm pixel size, and a generous 36mm x 24mm imaging area for exceptional wide-field deep-sky coverage.

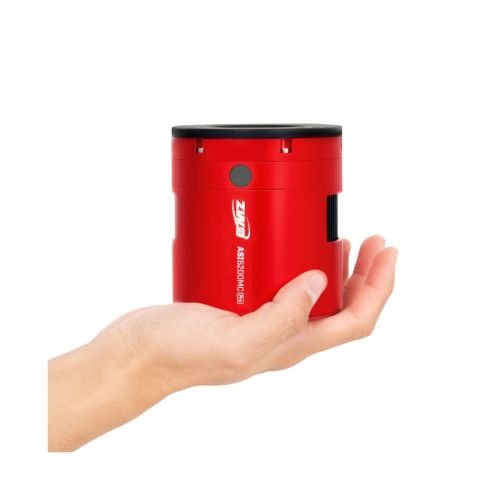

Note: images here show the colour variant, which is identical apart from labelling.

Outstanding Detail, Across the Entire Frame

The sensor’s combination of high resolution and fine pixel scale makes it ideal for precision imaging of galaxies, nebulae, star clusters, and lunar detail. Its 3.76μm pixels offer excellent sampling across a wide field, delivering sharp, detailed images with minimal artefacts.

ZWO has enhanced this model not only in appearance but in functionality. The updated internal board improves thermal efficiency and signal integrity, resulting in better stability across long imaging sessions.

Top-Class Performance Where It Matters

• Back-illuminated CMOS sensor with extremely low read noise and zero amp glow.

• 14 stops of dynamic range for capturing both faint and bright structures.

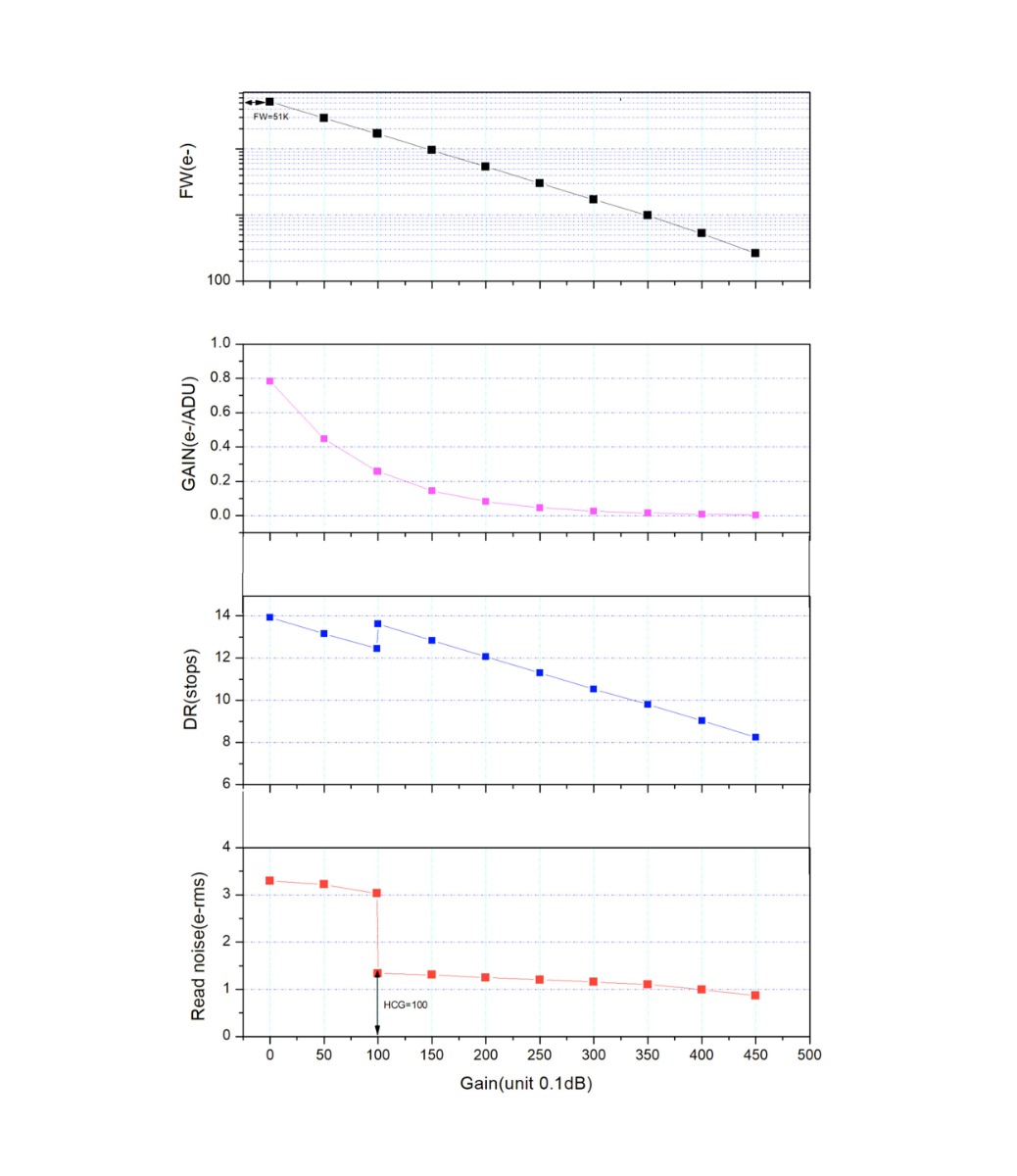

• Automatic HCG mode activates at Gain 100, lowering read noise while preserving dynamic range.

• Anti-dew heater around the sensor window prevents condensation and keeps your optics clear on cold nights.

Despite its professional-grade capabilities, the ASI6200 Pro Mono remains easy to integrate into a range of setups and imaging configurations.

Reliable, High-Speed Imaging

The ASI6200 Pro Mono supports:

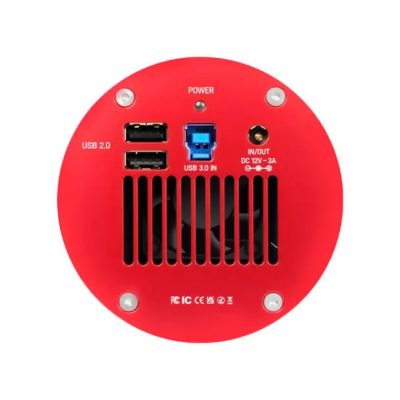

• USB 3.0 high-speed data transfer for fast, stable communication with your imaging software.

• 16-bit ADC for smooth tonal gradations and improved colour precision in post-processing.

• Built-in DDR3 memory buffer, reducing dropped frames and ensuring seamless capture.

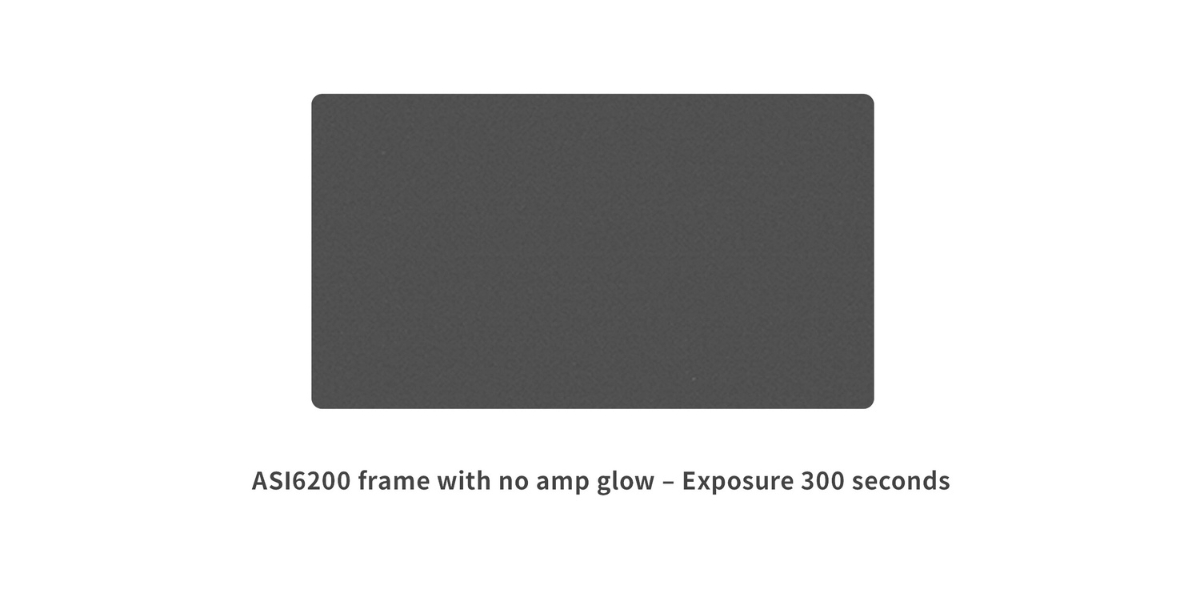

Zero Amp Glow Advantage

Thanks to its back-illuminated sensor and optimised electronics, the ASI6200 Pro Mono delivers amp glow–free imaging—even during long exposures or at high gain. Combined with ultra-low read noise, it produces cleaner data straight out of the camera, reducing your reliance on heavy post-processing. This is especially valuable for narrowband and broadband deep-sky imaging.

Versatile and Future-Proof

Whether you’re targeting dim nebulae or capturing high-resolution planetary images, the ASI6200 Pro Mono adapts effortlessly. ZWO recommends using Gain 0 or Gain 100 to unlock its best performance across various imaging conditions.

This camera stands as one of the most flexible and powerful full-frame monochrome options in the market—ideal for serious astrophotographers seeking reliability, resolution, and clarity in one streamlined package.

Mechanical Drawing
