The fringe killer filter blocks defocused light in the blue spectrum, as well as in the red part of the spectrum (IR) above 700nm, usually seen in small achromat telescopes.

The smaller details on craters of the Moon and planetary surfaces are so much more visible!

Planeoptically polished; can be used well before the focal point of the optical system, without any loss of sharpness, as a single filter in front of a binocular for afocal projection with digital cameras.

Provides the brightest picture of all industrially manufactured colour error-correction systems. Thus, the Fringe-Killer is a must for small refractors.

The following image shows the effect the filter has on a bright star.

Fringe killer filter on Sirius, a bright star

Facts and figures

  • Is due to its construction both visually and photographically a very valuable aid
  • Removes blue fringing as well as red fringing above 700nm.
  • Forms in the range between 450 to 480 nm with a plateau at around 50% transmission rate, the coating becomes more complex to produce than even the narrowest Nebula filters.
  • Achieved in the passband the highest transmission of all previously available colour fringe, whether filter or correction lens. From 486-656 nm all relevant deep sky wavelengths are completely transmitted. Visually this is enough light for even high magnifications.
  • Above of 656 nm (H-alpha), at 660nm, the transmission sinks very fast. In the NIR at 670nm, transmission is already down to 50%, and at 690nm it is already close to zero. The NIR is fully blocked up to 1150nm. This way, details on planets are shown much clearer when using CCD/CMOS-cameras, too.

Highlights of the Baader Fringe-Killer Colour Correction filter

  • Provides the brightest image of all industrially produced colour error correction systems. Thus the Fringe Killer is a must for even the smallest telescopes.
  • Removes blue fringing as well as red fringing above 700nm.
  • Cancels the devastating intensity of the disturbing purple fringing in a new form, which was never implemented to date in astronomical filters
  • Even weak nuances remain clearly visible in the planet due to the excellent colour balance.
  • In conjunction with an RG-610 Red Filter produces a narrowband Ha-pass filter with an only 70 nm wide windows and 95% light transmission – at an incredibly low price!
  • The combination with the Neodymium Skyglow Filter (with Phantom-Group-Coating) results in a balanced, breathtaking contrast to the observation of fine lunar and planetary details.
  • Planeoptically polished for perfect sharpness, even when the filter is assembled well before the focal point (or binocular digital camera insert).
  • No deterioration of resolution with high magnification – as would happen with flame-polished (raw polished) glass, commonly used for all sorts of filters!
  • Hight Quality Coating: Plasma-enhanced dielectric coatings result in hard, scratch-resistant and waterproof filters. Almost 50 layers on either side, carefully positioned as not to impair the optical quality of the substrate surface
  • Makes the performance of a simple f/8 economy refractor look like a classic f/15 Fraunhofer achromat. See it to believe it!

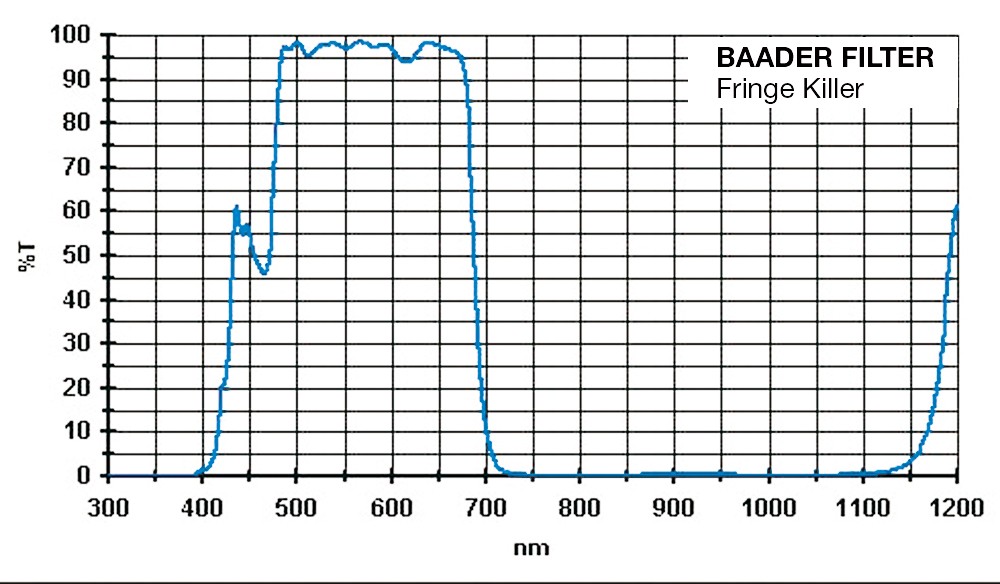

Frequency transmission curve

Frequency transmission curve

Reviews

There are no reviews yet.

Be the first to review “Baader Fringe Killer Colour Correction Filter”

Your email address will not be published. Required fields are marked *

Baader Fringe Killer Colour Correction Filter

SKU: N/A

$149.00$219.00

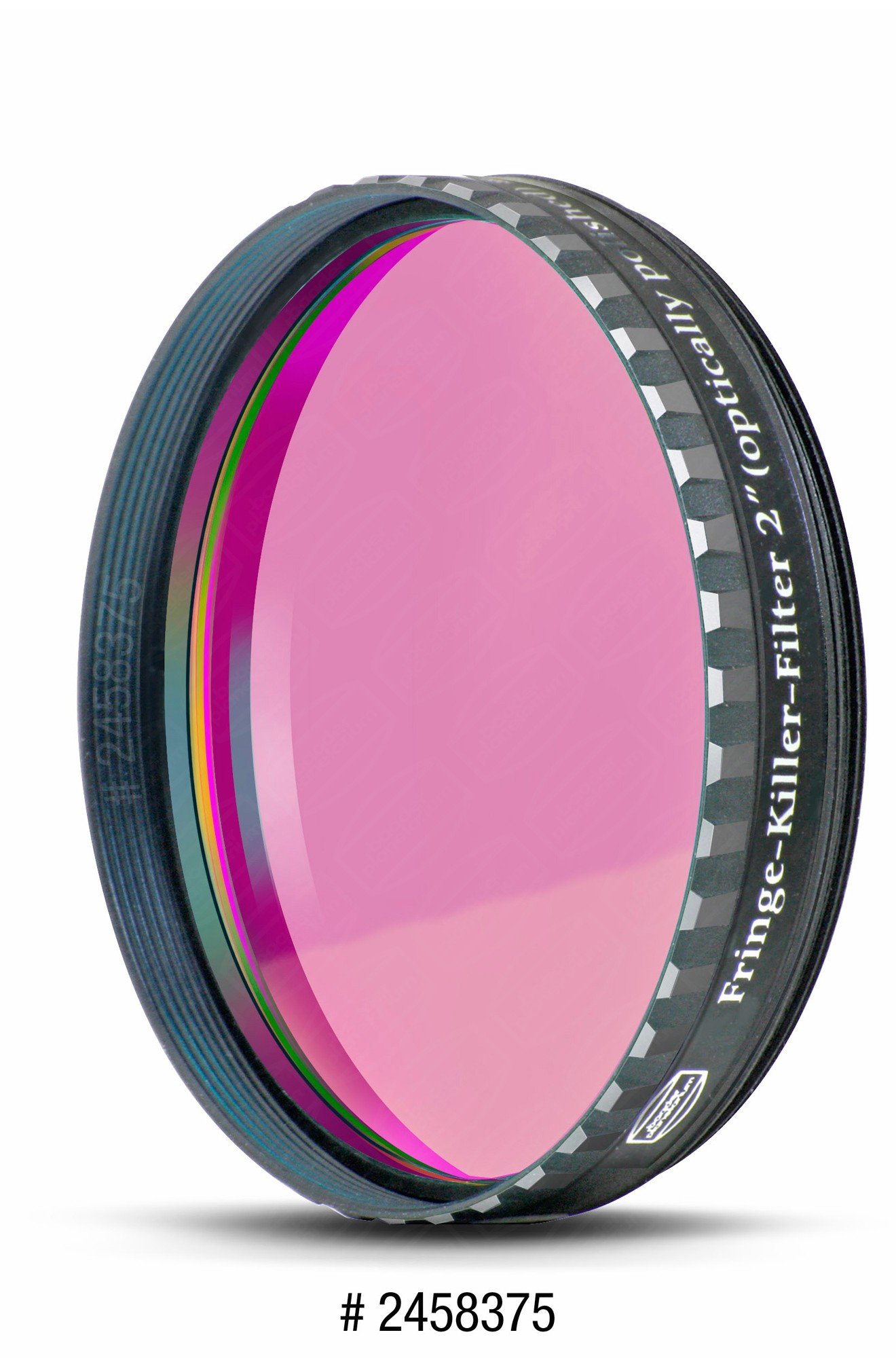

Filter size: 1.25" mounted, 2" mounted
