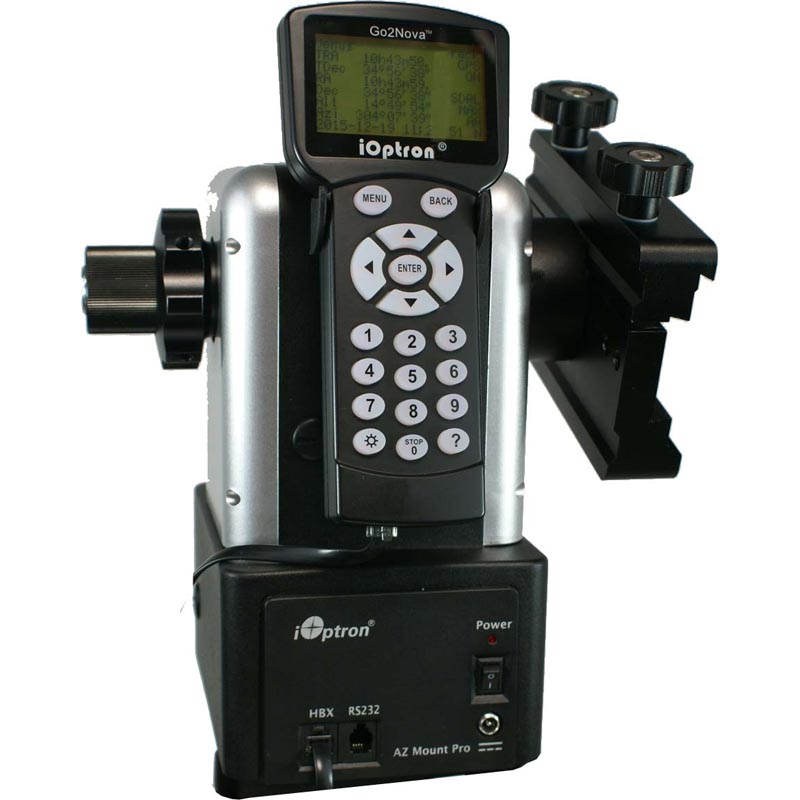

Introducing the AZ Mount Pro featuring “level and go” intuitive GOTO setup.

We call it “level and go”, the term used to describe iOptron new AZ Mount Pro’s simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.

Note that a Counterweight and Tripod are not included with this product.

Features:

  • On board rechargeable lithium-ion battery for up to 10 hours of use
  • 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
  • Whisper quiet low-power consumption stepper motors
  • Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
  • Zero backlash driver system
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
  • Serial port for computer control and firmware upgrades
  • Retractable counterweight shaft
  • Position memorization at power interruption
  • Die-cast aluminium body
  • Includes AZ Mount Pro Altitude Lock Levers (#8954)
  • 3-Point easy level adjustment (need part #8340-PIER for a pier top, or #8340 for a MT tripod, not included)
  • 6 inch dual dovetail saddle (Losmandy/Vixen styles)
  • Stands a mere 10 inches tall (mount head only)
  • Built-in 32-channel GPS receiver
  • Automatic position and angular detection sensors
  • 100 ~ 240V Battery Charger included
  • Aluminium Hard Case
  • Two-year limited warranty (90 day for battery)

Optional Accessories

Mount AltAzimuth Mount
Body Materials Die-cast Aluminum
System GoToNova®
Primary Payload 33 lb
Secondary Payload 10 lb
Mount Weight 13 lb (including CW shaft and battery)
Gear Aluminium worm wheel/Brass worm gear
Motor 128X microstep stepper motor
Transmission Synchronous belt
Resolution 0.1 arc second
Tracking Automatic
Tracking Rate celestial, solar, lunar and user defined
Hand controller Go2Nova® 8407 with over 212,000 object database
Slew Speed 1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X)
GPS 32-channel GPS
Sensors Position and angular detection
Level indicator Yes
Dovetail Saddle 6″ Losmandy/Vixen dual saddle
Optional secondary Vixen saddle
Battery Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
Battery Running Time 10 hour at 20ºC
Battery Charger 100-240V AC input /12.6V DC 2000mA output (Included)
Wireless Control Yes, full control via built-in WIFI adapter
Firmware Upgrade Yes, via serial port
Computer Control Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI
Counterweight Not induced (Optional 10lb CW #3006-10)
Tripod/Pier/Tri-Pier Not included
Warranty Two year limited for mount
90 days limited for battery
