The iOptron AZ/EQ HAE29C-EC strain wave gear mount features light weight and a high payload. This little titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29C-EC brings this vision to reality.

The mount also features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image without guiding.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29C-EC delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (no need to realign and start from the beginning).

The HAE29C-EC dual SWG Alt-az/Eq mount now has an internal main board and no longer requires a hand controller. The mount has USB ports on both the mount base and saddle that connect directly to the main board for mount control and firmware upgrade. It also features a built-in Wi-Fi for connection.

An HAE29C-EC mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

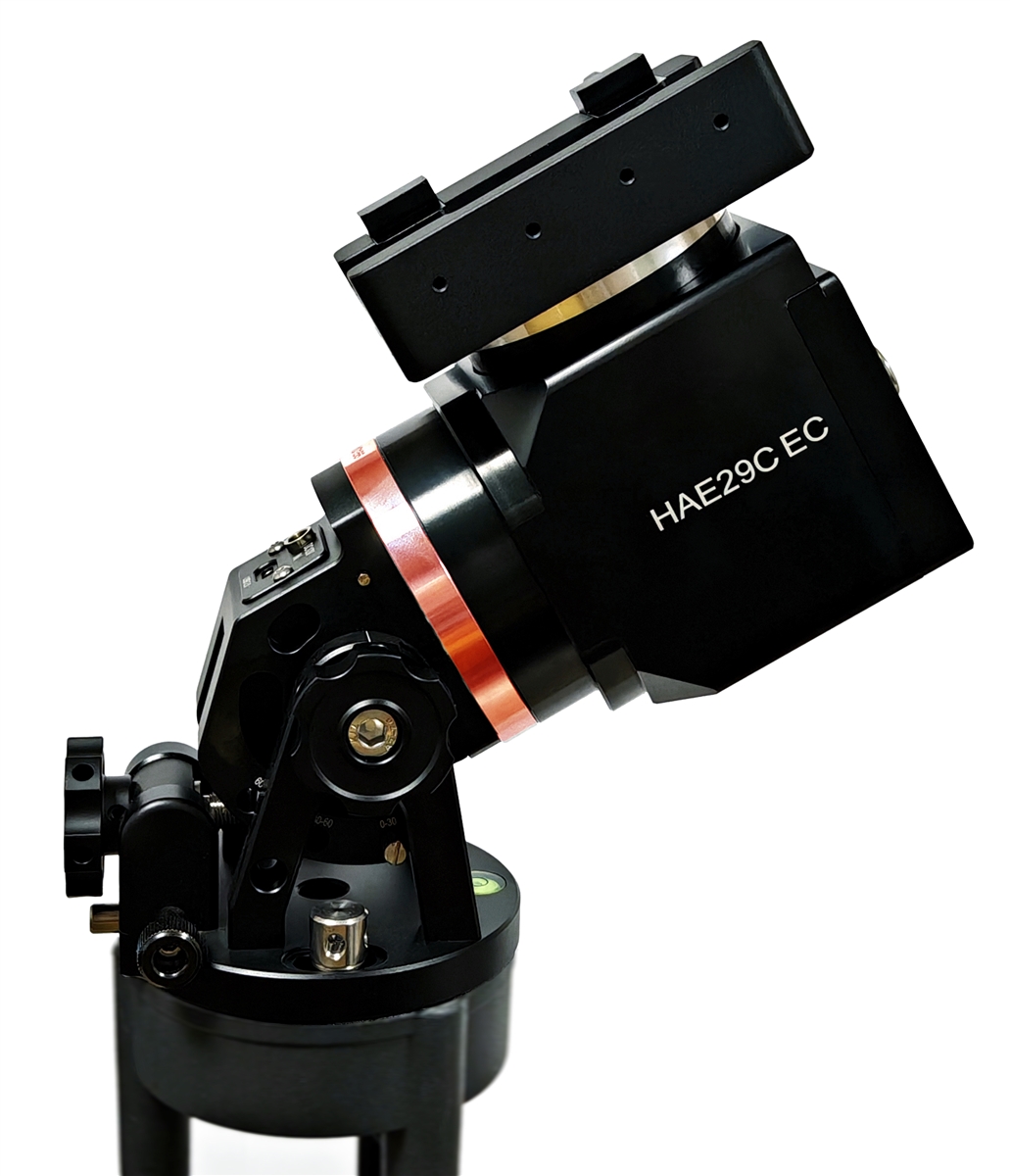

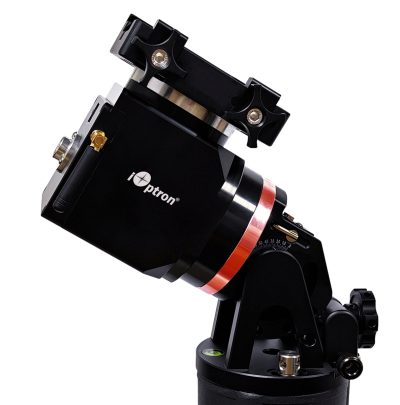

(Actual mount may differ from the image)

Features

  • Advanced strain wave gear system technology
  • Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
  • CNC machined
  • Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
  • 360 second gear period
  • Customer cable management system ready
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi
  • USB port for firmware upgrade and computer control
  • Carrying case
  • Two year warranty

Technical Specifications

Mount Strain Wave Altazimuth/Equatorial Mount
RA gear system Strain Wave Gear
DEC gear system Strain Wave Gear
Reduction ratio RA 480:1, DEC 360:1
Payload w/o CW * 29.7 lbs (13.5 kg)
Mount weight 8.15 lbs (3.7 kg) with dovetail saddle
Payload/Mount weight 3.65
Payload with CW* 40 lbs (18 kg)
Period 360 second
Drive motor Stepper motor
Structure Material All metal, CNC machined
Exterior finish Anodized black
Level indicator Level bubble
Control system GOTONOVA/Commander
Optional Hand Controller Optional Go2Nova® 8411
Tracking Automatic
Maximum slew speed 6º/sec
Power consumption 0.6A(Tracking), 1A(GOTO)
Power DC12V-5A (5.5/2.5mm DC plug)
AC adapter 100V ~ 240V (included, indoor use only)
Cable management Ready for DIY
Power off brake Electronic friction brake
Power-down memory Yes
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB, via HC)
Autoguide port Yes (ST-4 compatible)
Firmware upgrade Yes
Dovetail saddle Vixen & Losmandy
Tripod Optional
Counterweight Shaft SS Φ20X200mm, 3/8″-16 thread (Optional)
Counterweight 10 lbs (4.5kg)(Optional)
Operation temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty Two year limited

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
