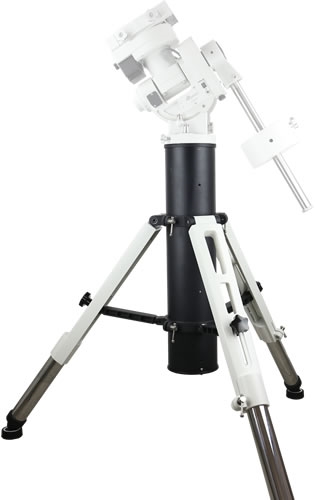

The iOptron Tri-Pier combines the strength and stableness of a pier with the levelling flexibility of a tripod. Aluminum pier and leg tops. Stainless steel leg extensions. The Tri-Pier feet has built-in vibration suspension pads.
The Tri-pier fits these iOptron mounts (may need extra mounting accessories):
- iEQ45/iEQ45 Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- AZ Mount Pro/MiniTower/MiniTower II/MiniTower Pro (needs a center post and three leveling screws #8340-PIER)
The Tri-pier also fits other brand mounts with a suitable adapter.
|Max Payload||220 lbs (100 kg)|
|Self Weight||~25.8 lbs (11.7 kg)|
|Pier Diameter||5.7″ (144 mm) with 150mm top plate|
|Adjustable Height||31.5″-42.5″ (800-1080 mm)|
|Uneven Ground Range||3.35″ (85 mm)|
|Leg Maximum Spread||Ø48.8″ (Ø1240 mm)|
|Pier Dimension (folded)||Ø12.8″x 26” (Ø325 x 660 mm)|
|Warranty||One year limited|
