Dragonfly Tilt sensor V.2

Dragonfly Tilt sensor V.2

Tilt sensor switch for Dragonfly or Dragonfly with Din Cradle

If your observatory roof needs the telescope parked – in the horizontal position -, attach the sensor to your scope (to the plate, rings…) and your Dragonfly will be able to check the position before opening or closing the roof.

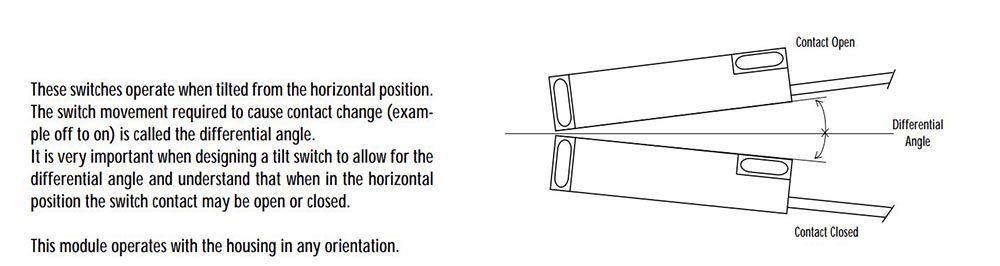

Tilt Sensor diagram

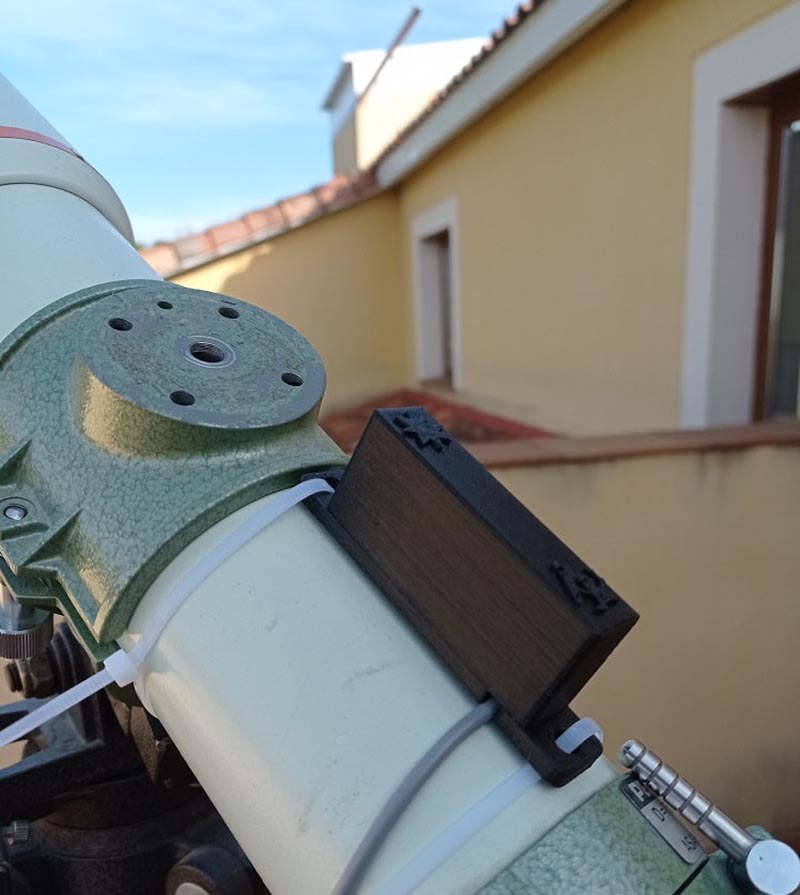

Dragonfly Tilt sensor installed on OTA

2m. cable for connection with Dragonfly
Switching Voltage Max Volts DC 60V
Switching Current Max 25mA
Contact Resistance 30Ω
Differential angle 15 °
With one pass-through hole for screws making very easy to install them

Reviews

There are no reviews yet.

Be the first to review “Lunatico Tilt Sensor Switch for Dragonfly”

Lunatico Tilt Sensor Switch for Dragonfly

SKU: LUN-ACASEL22-2

$65.00

Available on back-order

✅ Fast Shipping & Tracking

✅ Stocked in Melbourne, Australia

✅ Expert Advice

✅ Lifetime Technical Support

Dragonfly Tilt sensor V.2

Dragonfly Tilt sensor V.2

Lunatico Tilt Sensor Switch for Dragonfly

SKU: LUN-ACASEL22-2

$65.00

Available on back-order

Tilt sensor switch for Dragonfly or Dragonfly with Din Cradle

If your observatory roof needs the telescope parked – in the horizontal position -, attach the sensor to your scope (to the plate, rings…) and your Dragonfly will be able to check the position before opening or closing the roof.

Tilt Sensor diagram

Dragonfly Tilt sensor installed on OTA

2m. cable for connection with Dragonfly
Switching Voltage Max Volts DC 60V
Switching Current Max 25mA
Contact Resistance 30Ω
Differential angle 15 °
With one pass-through hole for screws making very easy to install them
