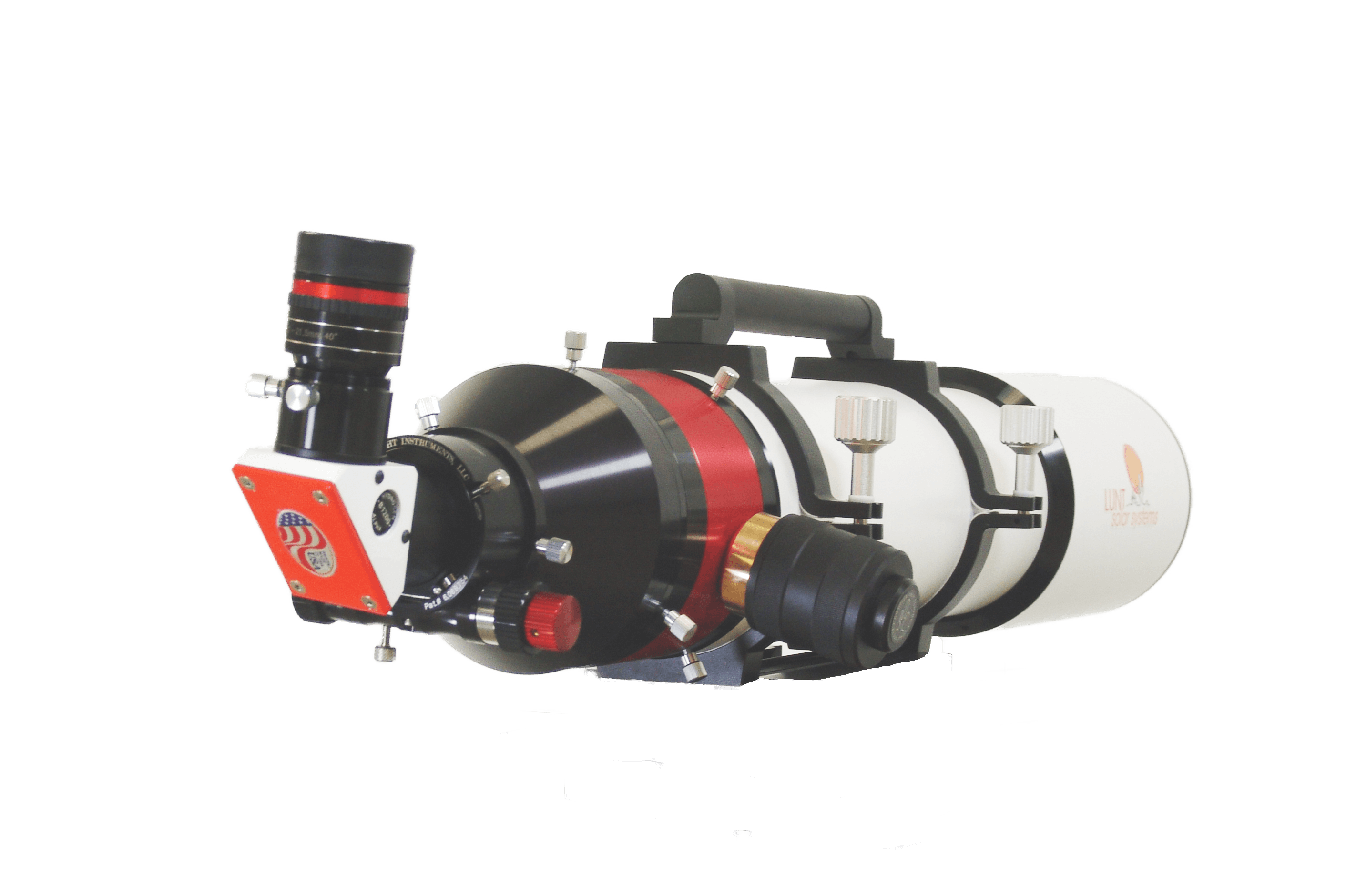

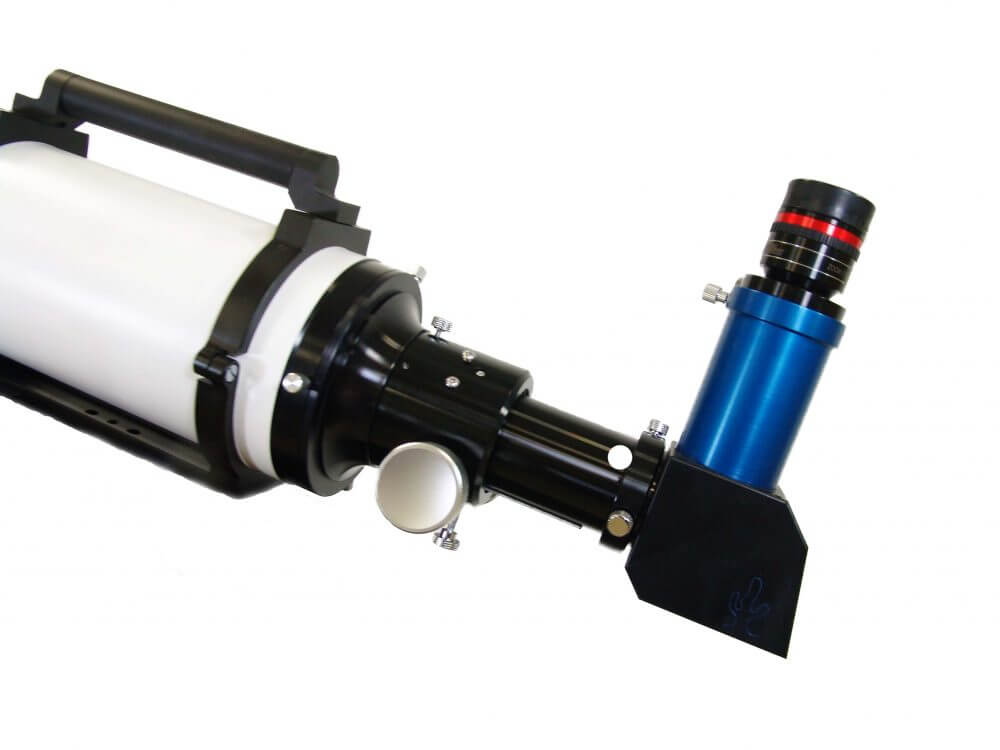

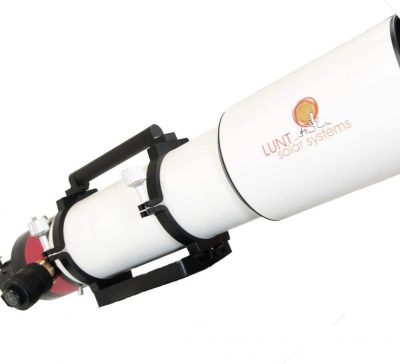

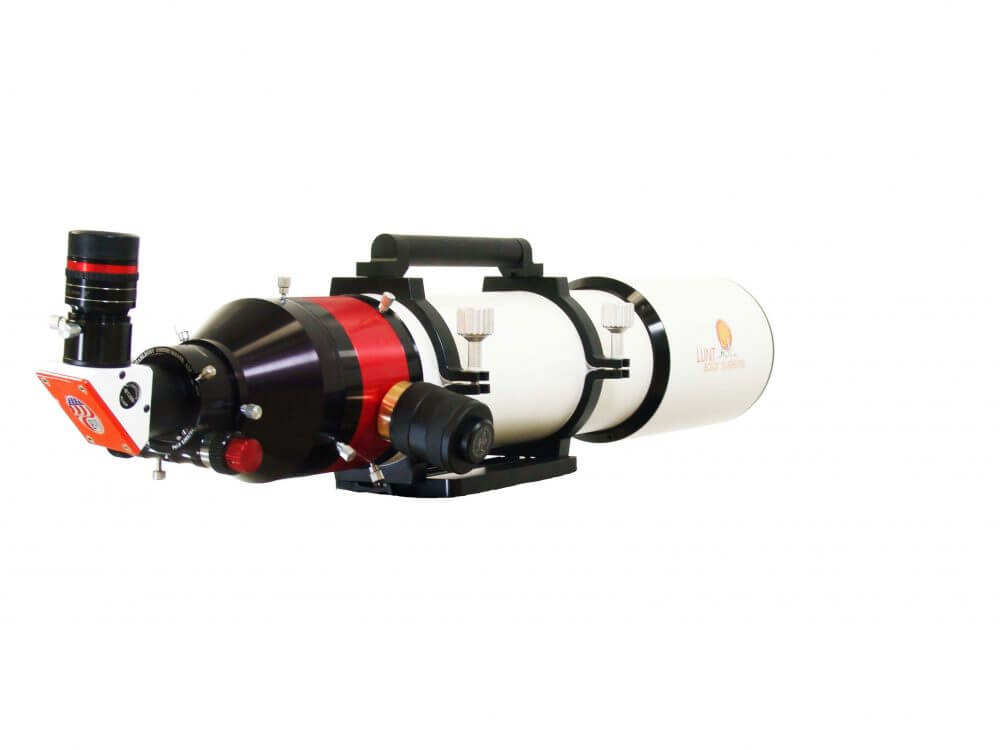

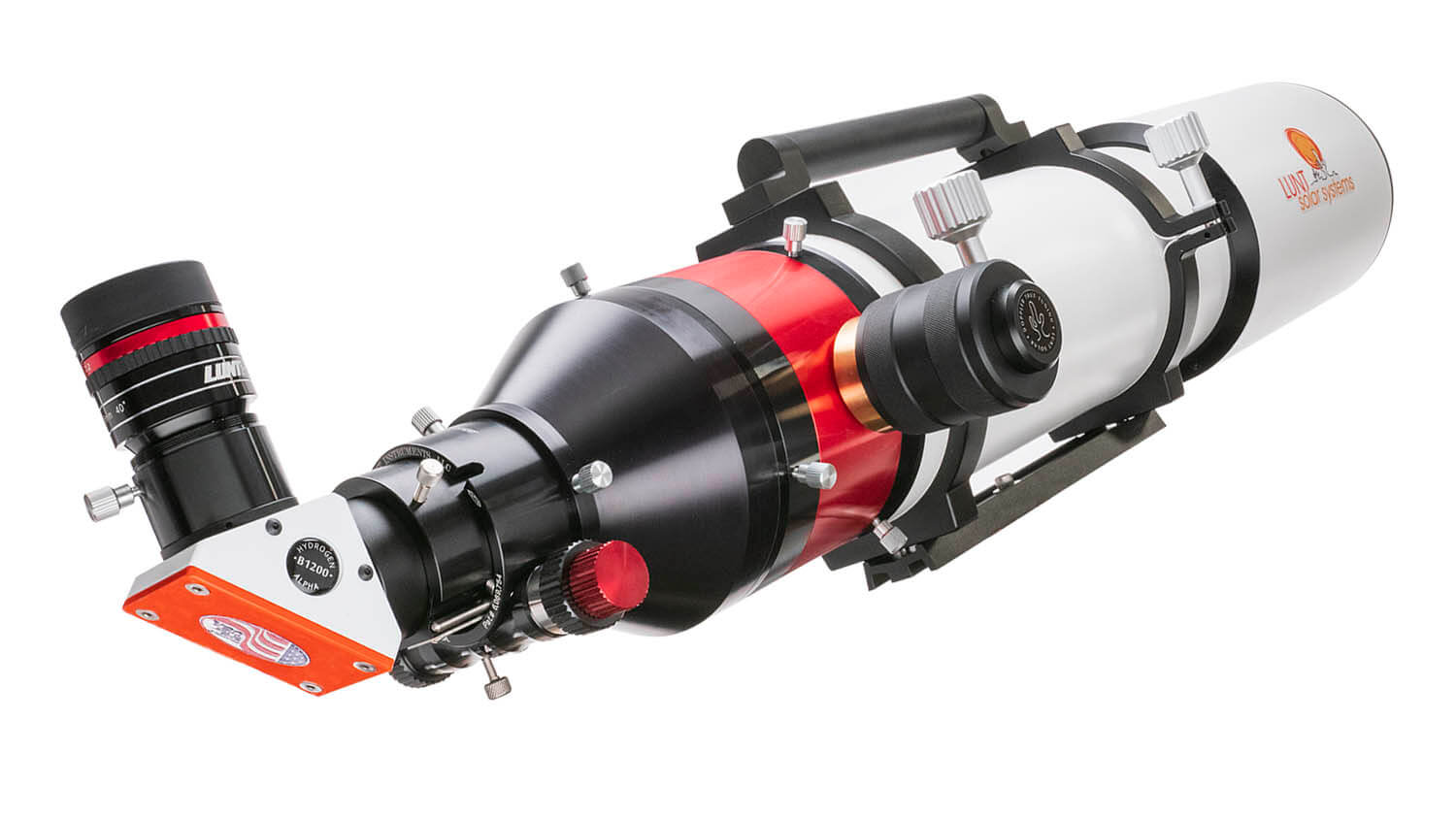

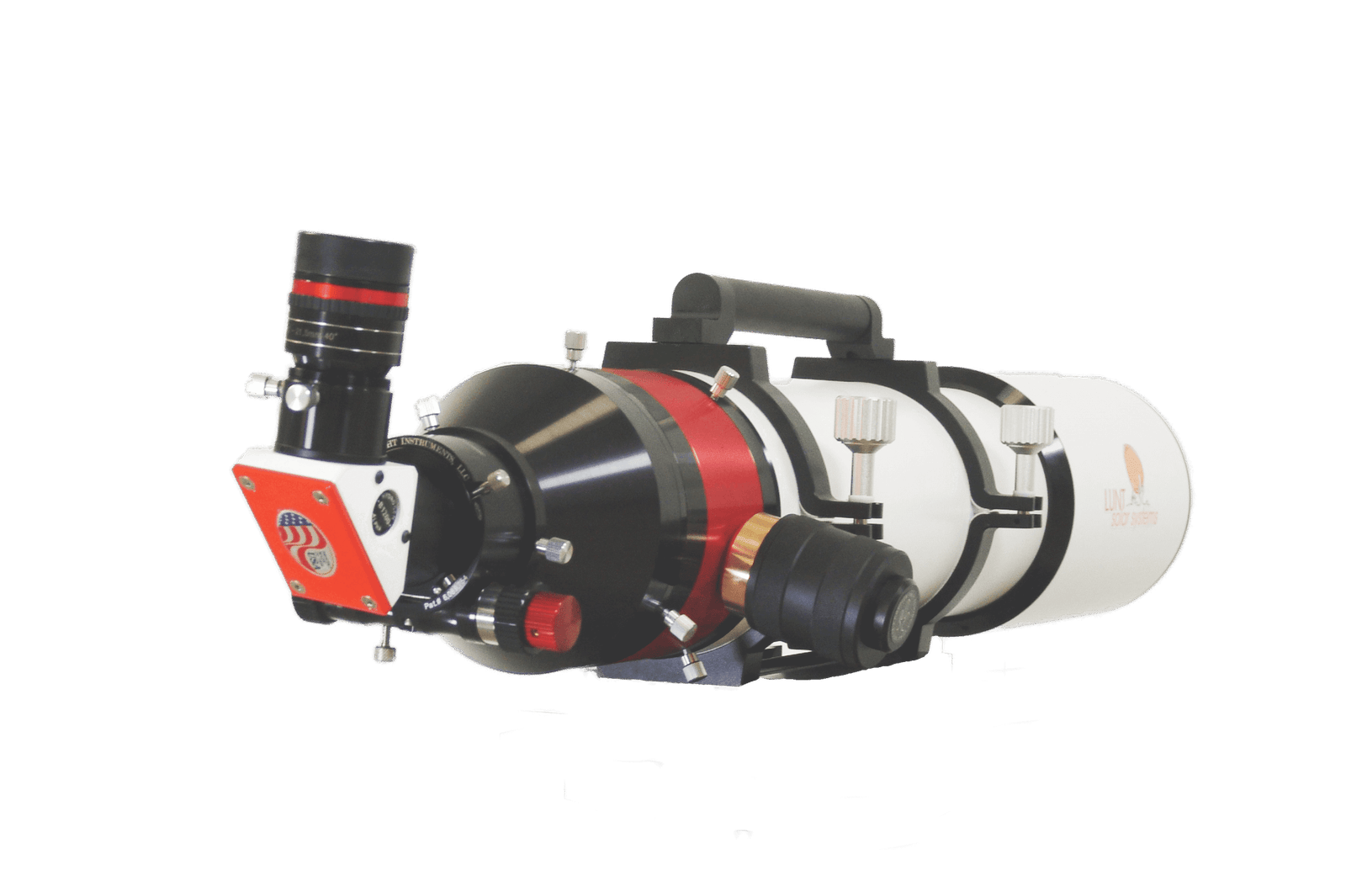

The Lunt 130MT Modular Day and Night is the complete telescope system. This refractor-based system has a precision-aligned triplet ED lens with a 130mm aperture, for truly stunning solar observation as well as beautiful nighttime applications.

The Lunt 130MT easily switches from Hydrogen Alpha (solar) configuration to its nighttime mode by removing its internal module. With the Lunt 130MT by your side, you won’t need anything else!

When configuring the Lunt 130MT, you must select a desired blocking filter that is inserted at the eyepiece end of the tube.  However, there is a range of additional options that make this telescope the complete system for daytime and nighttime viewing:

Blocking filter options

Which blocking filter you will require will be determined by how you are going to use the scope. The size of the blocking filter determines the size of the field you can see, and for large camera sensors, a small blocking filter may result in vignetting, meaning the corners of the sensor will not receive the required quantity of light.

  • 12mm in a 2″ diagonal or straight-through tube configuration
  • 18mm in a 2″ diagonal or straight-through tube configuration
  • 34mm in a 2″ straight-through tube configuration

Focuser Options

The Lunt 130MT Modular telescope is currently supplied wth 2″Rack and Pinion focuser.

Feather Touch focusers are also available but these are shipped separately due the long lead times.

Additional optional extras (sold separately)

Double Stack filter module

The Double Stack module narrows the bandpass for solar viewing from <0.65 Angstroms to <0.45 Angstroms. This enables you to see significantly sharper details on the sun and in the corona.

White light solar wedge

The white light (or Herschel) wedge is an optical method of passing all frequencies of light but attenuating (dimming) them, so the sun’s image is safe to view (with a Hydrogen Alpha filter). Most of the light is not sent towards the observer, but downwards to the bottom of the diagonal. This can make the diagonal hot to the touch.

Polarising filter for white light

A Polarising Filter will help control the brightness of the Sun’s image when using a Lunt White Light Wedge visually.

Calcium K wedge

A Calcium K wedge enables the viewer to observe the sun through an entirely different wavelength of light – near ultraviolet. This is especially suited to a camera as the human eye is not very sensitive to this frequency.



Telescope Type Universal Day and Night
Universal Capabilities H-alpha, CaK, White Light, Lunar, Planetary, Deep Space, Terrestrial
Aperture 130mm
Objective Type Professional Grade APO Triplet
Objective Material FPL51
Objective Coating Ion Assist Broadband AR
Focal Ratio F/7
Focal Length 910mm
Mounting CNC Mounting Rings and Vixen Style Dovetail
Storage Aluminum Finished Hard Case with Fitted Foam
H-alpha Etalon Type Modular
Etalon Wavelength 656.28 nm
Etalon Bandpass <0.65Å Single Stack, <0.45Å Double Stack*
Telescope Weight 25lbs
Etalon Material UV Grade Fused Silica
Etalon Tuning Doppler True Barometric Pressure Tuning
Doppler Shifting Instant
Blocking Filter Size 12 mm, 18 mm, 34 mm, Diagonal and Straight Through
Blocking Filter Bandpass
Sun Finder Red Dot Sun Finder Handle
CaK*Filter Type Rear Mount CaK Module
Filter Wavelength 393.4 nm
Filter Bandpass 2.2Å
White Light*Filter Type Front Mount Film Filter, Rear Mount White Light Wedge
Filter Bandpass Broadband White Light. AR/UV Blocking
Lunar, Planetary, Deep Space, Terrestrial Converts to a conventional professional grade APO triplet for all your nighttime requirements. See optional equipment for additional specifications
Theoretical Max Magnification 225x

*Optional Capabilities

Includes:
  • Lunt 130 mm Universal Day & Night OTA
  • Ring set assembly (with dovetail & Red Dot Sun Finder handle)
  • Hard case with custom foam insert.

Reviews

There are no reviews yet.

Be the first to review “Lunt 130mm Modular Day and Night Telescope”

Your email address will not be published. Required fields are marked *

Optional Products

Lunt 130mm Modular Day and Night Telescope

SKU: N/A

$17,949.00$20,949.00

✅ Expert Advice
✅ Australian Owned
✅ Lifetime Technical Support

    Need Expert Advice?

    Visual Astronomy, Astrophotography, Microscopy and Macro Photography can be a little complicated sometimes as there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!

    Enquire now or call us (03) 9042 2293

    Lunt 130mm Modular Day and Night Telescope

    SKU: N/A

    $17,949.00$20,949.00

    The Lunt 130MT Modular Day and Night is the complete telescope system. This refractor-based system has a precision-aligned triplet ED lens with a 130mm aperture, for truly stunning solar observation as well as beautiful nighttime applications.

    The Lunt 130MT easily switches from Hydrogen Alpha (solar) configuration to its nighttime mode by removing its internal module. With the Lunt 130MT by your side, you won’t need anything else!

    When configuring the Lunt 130MT, you must select a desired blocking filter that is inserted at the eyepiece end of the tube.  However, there is a range of additional options that make this telescope the complete system for daytime and nighttime viewing:

    Blocking filter options

    Which blocking filter you will require will be determined by how you are going to use the scope. The size of the blocking filter determines the size of the field you can see, and for large camera sensors, a small blocking filter may result in vignetting, meaning the corners of the sensor will not receive the required quantity of light.

    • 12mm in a 2″ diagonal or straight-through tube configuration
    • 18mm in a 2″ diagonal or straight-through tube configuration
    • 34mm in a 2″ straight-through tube configuration

    Focuser Options

    The Lunt 130MT Modular telescope is currently supplied wth 2″Rack and Pinion focuser.

    Feather Touch focusers are also available but these are shipped separately due the long lead times.

    Additional optional extras (sold separately)

    Double Stack filter module

    The Double Stack module narrows the bandpass for solar viewing from <0.65 Angstroms to <0.45 Angstroms. This enables you to see significantly sharper details on the sun and in the corona.

    White light solar wedge

    The white light (or Herschel) wedge is an optical method of passing all frequencies of light but attenuating (dimming) them, so the sun’s image is safe to view (with a Hydrogen Alpha filter). Most of the light is not sent towards the observer, but downwards to the bottom of the diagonal. This can make the diagonal hot to the touch.

    Polarising filter for white light

    A Polarising Filter will help control the brightness of the Sun’s image when using a Lunt White Light Wedge visually.

    Calcium K wedge

    A Calcium K wedge enables the viewer to observe the sun through an entirely different wavelength of light – near ultraviolet. This is especially suited to a camera as the human eye is not very sensitive to this frequency.



    Telescope Type Universal Day and Night
    Universal Capabilities H-alpha, CaK, White Light, Lunar, Planetary, Deep Space, Terrestrial
    Aperture 130mm
    Objective Type Professional Grade APO Triplet
    Objective Material FPL51
    Objective Coating Ion Assist Broadband AR
    Focal Ratio F/7
    Focal Length 910mm
    Mounting CNC Mounting Rings and Vixen Style Dovetail
    Storage Aluminum Finished Hard Case with Fitted Foam
    H-alpha Etalon Type Modular
    Etalon Wavelength 656.28 nm
    Etalon Bandpass <0.65Å Single Stack, <0.45Å Double Stack*
    Telescope Weight 25lbs
    Etalon Material UV Grade Fused Silica
    Etalon Tuning Doppler True Barometric Pressure Tuning
    Doppler Shifting Instant
    Blocking Filter Size 12 mm, 18 mm, 34 mm, Diagonal and Straight Through
    Blocking Filter Bandpass
    Sun Finder Red Dot Sun Finder Handle
    CaK*Filter Type Rear Mount CaK Module
    Filter Wavelength 393.4 nm
    Filter Bandpass 2.2Å
    White Light*Filter Type Front Mount Film Filter, Rear Mount White Light Wedge
    Filter Bandpass Broadband White Light. AR/UV Blocking
    Lunar, Planetary, Deep Space, Terrestrial Converts to a conventional professional grade APO triplet for all your nighttime requirements. See optional equipment for additional specifications
    Theoretical Max Magnification 225x

    *Optional Capabilities

    Includes:
    • Lunt 130 mm Universal Day & Night OTA
    • Ring set assembly (with dovetail & Red Dot Sun Finder handle)
    • Hard case with custom foam insert.
