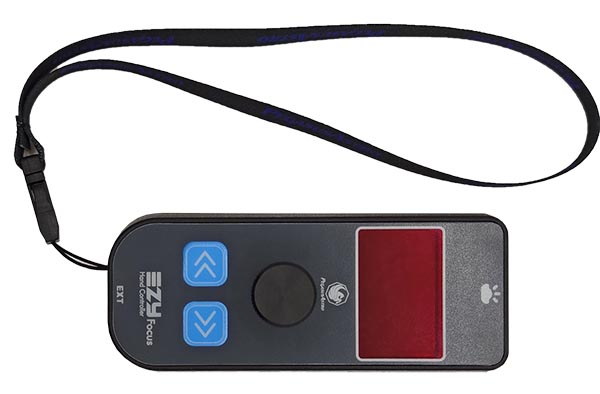

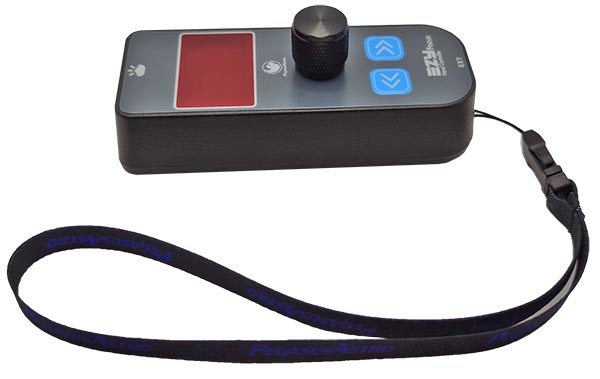

The EZY Focus Hand Controller is a perfect match for your Ultimate Powerbox v2 or Prodigy Microfocuser. This little device allows precision control of your motorized focuser. It also ensures a vibration free focus routine!

Digital Encoder with a Push button

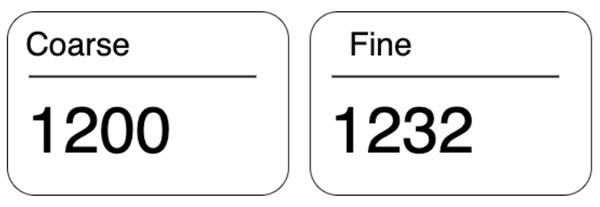

The rotary knob simulates the knob of your focuser. Rotate the digital knob and easily focus! Precision can be achieved when you press the knob inside. Speed is reduced to 1:10 just like the fine focus knob of your focuser! Click it again to switch to coarse focus.

Pushbuttons to Focus IN and OUT

Two additional buttons “<< and >>” allows you to move the focuser IN or OUT by the exact and preconfigured step count you have set in the EZY Focus menu. Every time you press the button an audible beep confirms the motor movement.

Can work simultaneously with PC motor operation

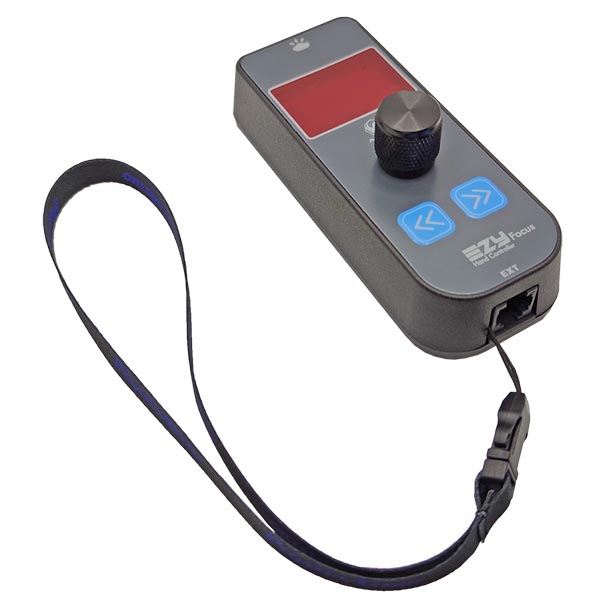

Just plug the hand controller in the EXT port of the Ultimate Powerbox v2 or Prodigy Microfocuser and enjoy precision in manual focusing without vibrations. No need to remove the hand controller when you use your PC to control the motor. Both can work in parallel and sync motor position in screen.

Organic LED display with Red Film

A 1.3 inch 128 x 64 pixel Organic LED (red film) screen is used for the device. It will ensure that your night vision will be unaffected.

Large fonts, Legible letters displaying motor position, motor position presets and settings menu



Main Display

Motor Preset Menu

Settings Menu

Temperature and Humidity Sensor.

EZY Focus has an embedded high accuracy temperature and relative humidity sensor. The Ultimate Powerbox v2 automatically uses this sensor discarding the stock UPBv2 sensor.

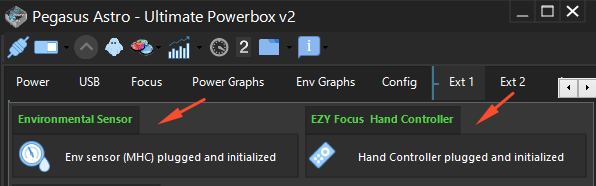

EZY Focus and sensor is discovered in the Ultimate Powerbox v2 software and displays readings just like your stock sensor.

Bright adjustable red LED light

A large red coloured LED is placed in the front of the device, allowing you to use the “EZY Focus Hand Controller” as an astronomical map red light. LED’s brightness can be configured from the device menu.
