We proudly present the Pegasus Astro – USB Control Hub (UCH)

Lack of a trusty USB3.1 Hub for the astrophotography market, triggered Pegasus Astro to develop a USB3 Hub controller which also allows you to switch ON/OFF each USB port.

A SuperSpeed (SS), low power, switchable USB3.1 Gen1 hub and fully compliant with USB-IF’s USB 3.1 Gen1 specification . The Hub supports Hi-Speed (HS), Full Speed (FS) and Low Speed (LS). The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.

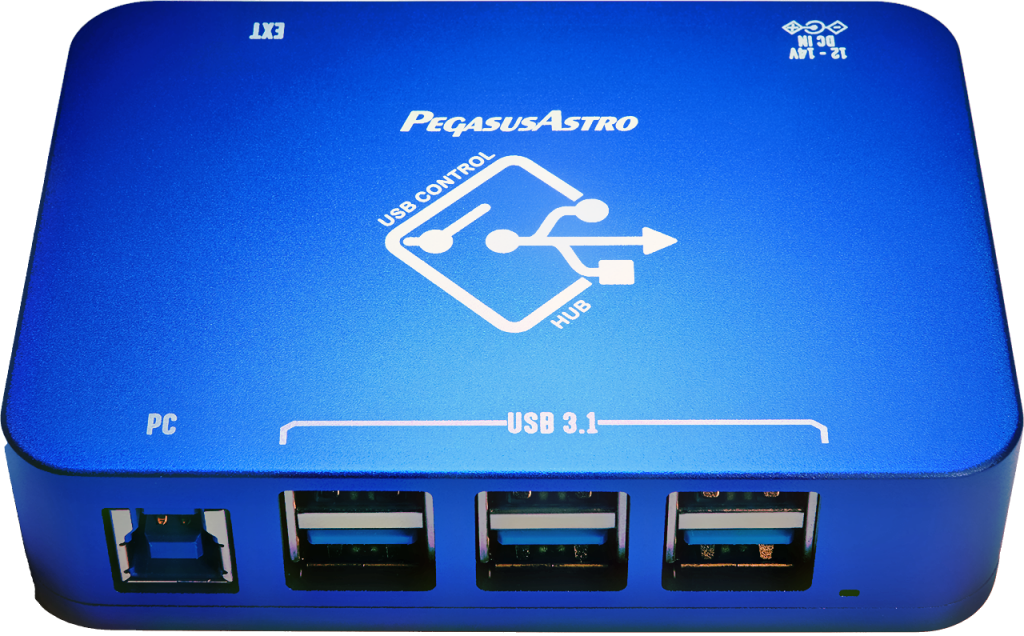

6 x USB3.1 Active Ports

Device has 6 x USB 3.1 PortsAll ports are backwards compatible with USB 1.0 and USB 2.0 devices. Moreover, each port can deliver up to 2.5Amps of current. There is a smart current limit sensor in every port which automatically limits or cuts power in case of a short-wire or power consumption that is above 2.5Amps. Each port is monitored by the USB Controller and in case of a current limit, it triggers a warning popup in the operating system.

Aluminium Enclosure

A high quality robust, blue anodised aluminium enclosure houses the electronics of the USB Hub. The metal enclosure designed and tested to survive ±5kV ESD strikes

Switchable USB Ports

Each USB port can be controlled and switched ON/OFF by our standalone software. (power + data). You are going to love this feature. No more pull out and re-plug USB cables of your equipment.

12V DC Operation

The 12V DC operation was our first design requirement. As most of your astro-equipment work with 12V DC why to use something different?

Hub accepts 12-14V of operation. This means that you can plug unregulated 12V power from a battery.

Industrial grade temperature support

Most USB Hubs in the market (well…nearly all of them) operate under room temperatures as they were design to work inside your cosy warm room. This is one of the reasons why you experience USB disconnects and instability during a cold night.

Our product is certified to work flawlessly from −40°C to +85°C. All USB Hub electronics has been selected to support Industrial grade temperature ranges.

PEG-UCH

ASCOM Switch support

Device fully supports ASCOM switch. This means that you can switch ON/OFF each USB port via ASCOM supported software.

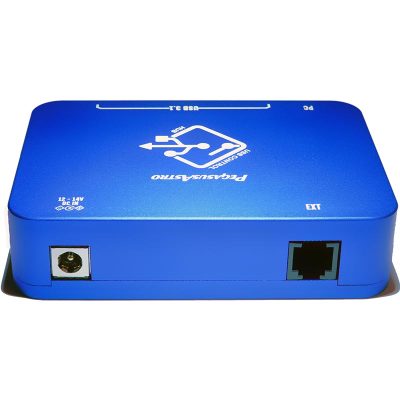

Expansion Port (EXT)

A RJ12 external ports allows future device expansion

Standalone Software

Switch ON/OFF USB Ports on demand. Monitor USB Voltage levels. Easily name each USB port based on the device that is attached on it

PEG-UCH

In the box

  • USB Control Hub Unit
  • Cigarette lighter plug to 2.1mm socket
  • USB3 cable, 1.5 meter long, male A to male B

Compatibility

Device is fully compatible with Microsoft Windows 10, 8, 7, XP, Apple OS X 10.4+, and Linux hub drivers.

Dimensions

Size: 100mm x 72mm x 24mm / 3.9” x 2.8” x 0.94”
Weight: 200g / 7 oz

Technical Specifications

USB Ports Six downstream USB3.1 Gen1/2.0 ports
USB Switchable Ports All of them [1-6]. Power & Data
DC Input 12-14V DC
Amperage on individual port 2.5 Amps
Maximum Total Amperage: 8 Amps
Operating Temperature Industrial grade temperature support
(−40°C to +85°C)
Size 100mm x 72mm x 24mm / 3.9” x 2.8” x 0.94”
Weight 200g / 7 oz

Reviews

There are no reviews yet.

Be the first to review “Pegasus Astro USB Control Hub”

Your email address will not be published. Required fields are marked *

Pegasus Astro USB Control Hub

SKU: PEG-UCH

$375.00

Available on back-order

✅ Expert Advice
✅ Australian Owned
✅ Lifetime Technical Support

    Need Expert Advice?

    Visual Astronomy, Astrophotography, Microscopy and Macro Photography can be a little complicated sometimes as there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!

    Enquire now or call us (03) 9042 2293
