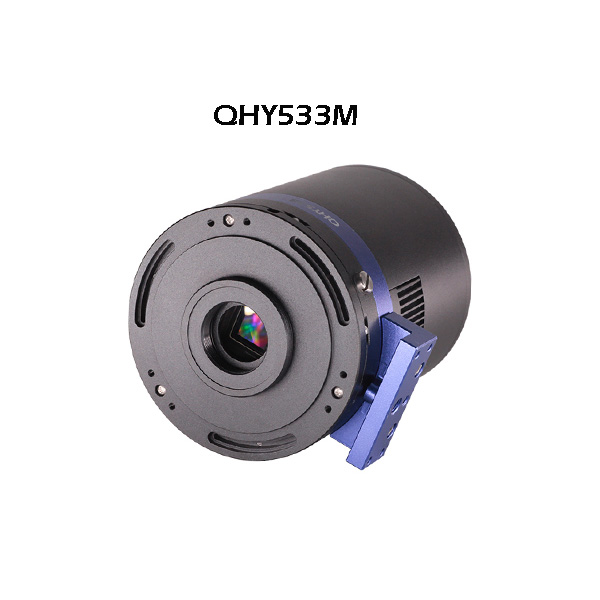

QHY533M

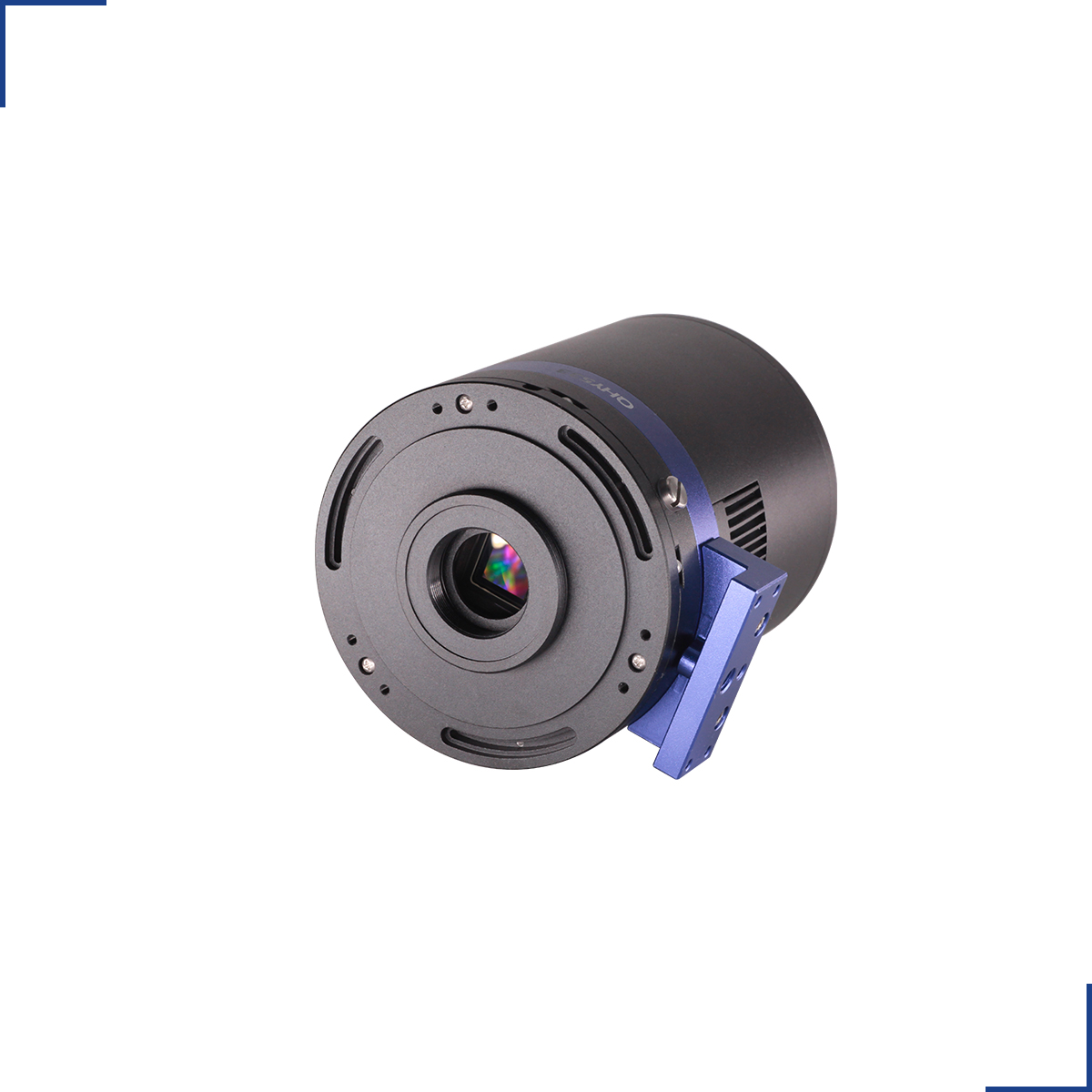

Front view

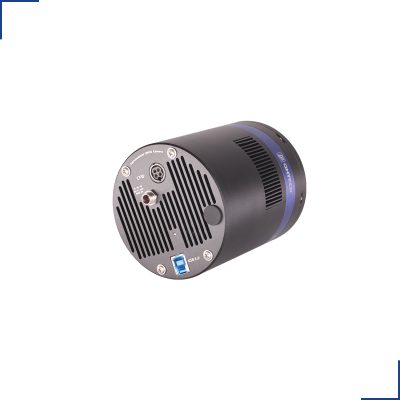

Rear view

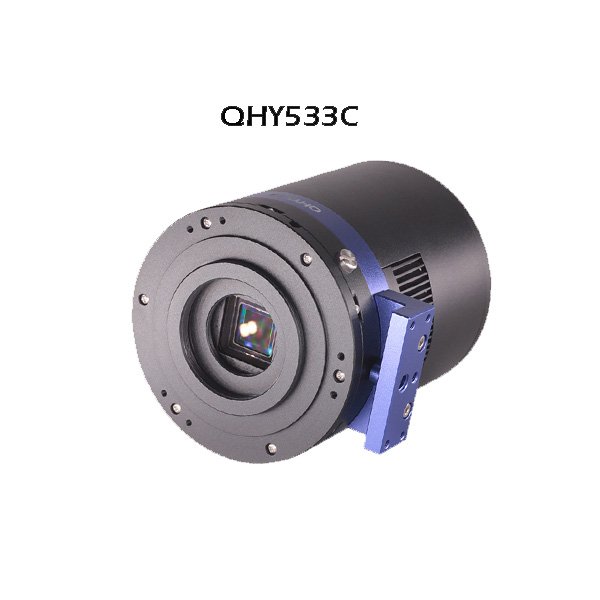

The QHY533C Colour Deep Sky Camera is back-illuminated with 3.76um pixels. The QHY533C uses a similar series of back-side illuminated sensors as the flagship models QHY600 and QHY268, featuring low noise and zero amp glow. The sensor is different from other sensors in that it has a square format.

The QHY533C comes with a range of adapters (see Combo diagram). The adapters can be directly connected to a 55mm BFL M48 coma corrector or field flattener, direct to a 2″ focuser, or (using an additional adapter sold separately) a Nikon or Canon DSLR lens. At the same time, the C-port thread can be provided with the QHY533C and you can directly mount the C-port lens.

The QHY533C also comes with an additional adapter for a tripod interface. This makes it easier to image wide-field targets using a DSLR lens.

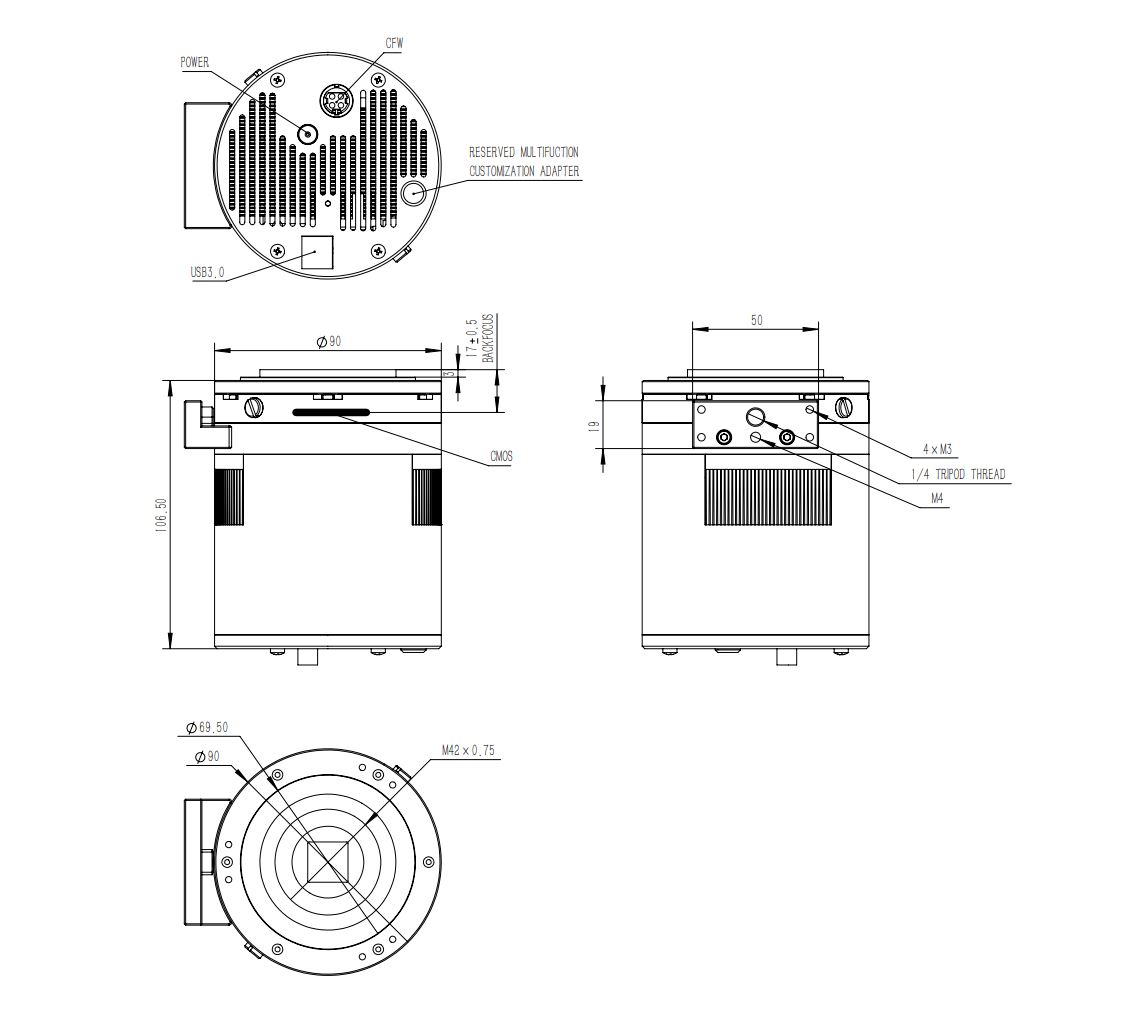

QHY533C mechanical drawing

Model QHY533M
Colour/mono Colour
Image Sensor Sony CMOS Sensor IMX533
Sensor Type Back Illuminated (BSI)
Pixel Size 3.76um x 3.76um
Sensor Surface Glass Multi Layer AR coating
Effective Pixels 9 Megapixels
Effective Image Area 3008*3028 (includes the optically black area and overscan area)
Full Well Capacity 58ke-
A/D Native 14-bit A/D
Sensor Size  1″ format
Full Frame Rate USB3.0 Port:
Full Resolution  26.5FPS  @8BIT         20FPS @16BIT
2160Lines          37FPS     @8BIT          28.5FPS@16BIT
1080Lines          71.5FPS   @8BIT          55FPS @16BIT
768Lines             97FPS      @8BIT          76FPS @16BIT
480Lines             152FPS    @8BIT          117FPS @16BIT
240Lines             280FPS    @8BIT         215FPS@16BIT
Read Noise 1.3 to 3.4e-
Dark Current -20℃，0.0005e- /pixel/sec
Amplifier Glow Near zero (only visible at max gain)
Exposure Time Range 30µs – 3600sec
Unity gain 68
Shutter Type Electronic Shutter
Computer Interface USB 3.0
Built-in Image Buffer 1GByte DDR3 Memory
cooling System Dual Stage TEC cooler (-30℃ in continuous mode, -35℃ in single frame mode)
Anti-Dew Heater Yes
Telescope Interface See combo drawing
Optic Window Type  AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length 17.5mm
Weight 845g

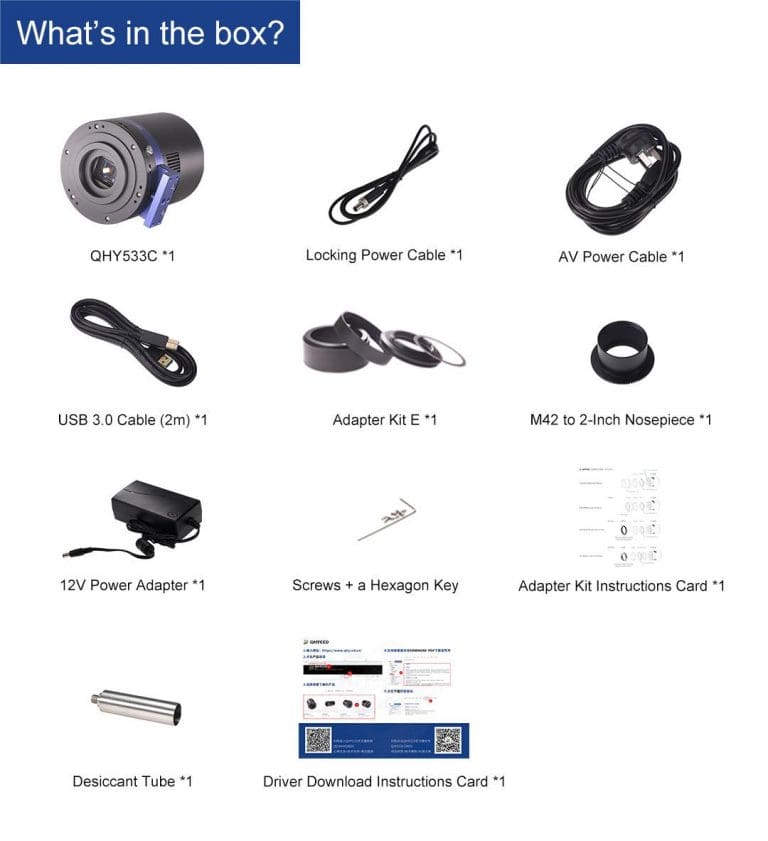

QHY533C contents

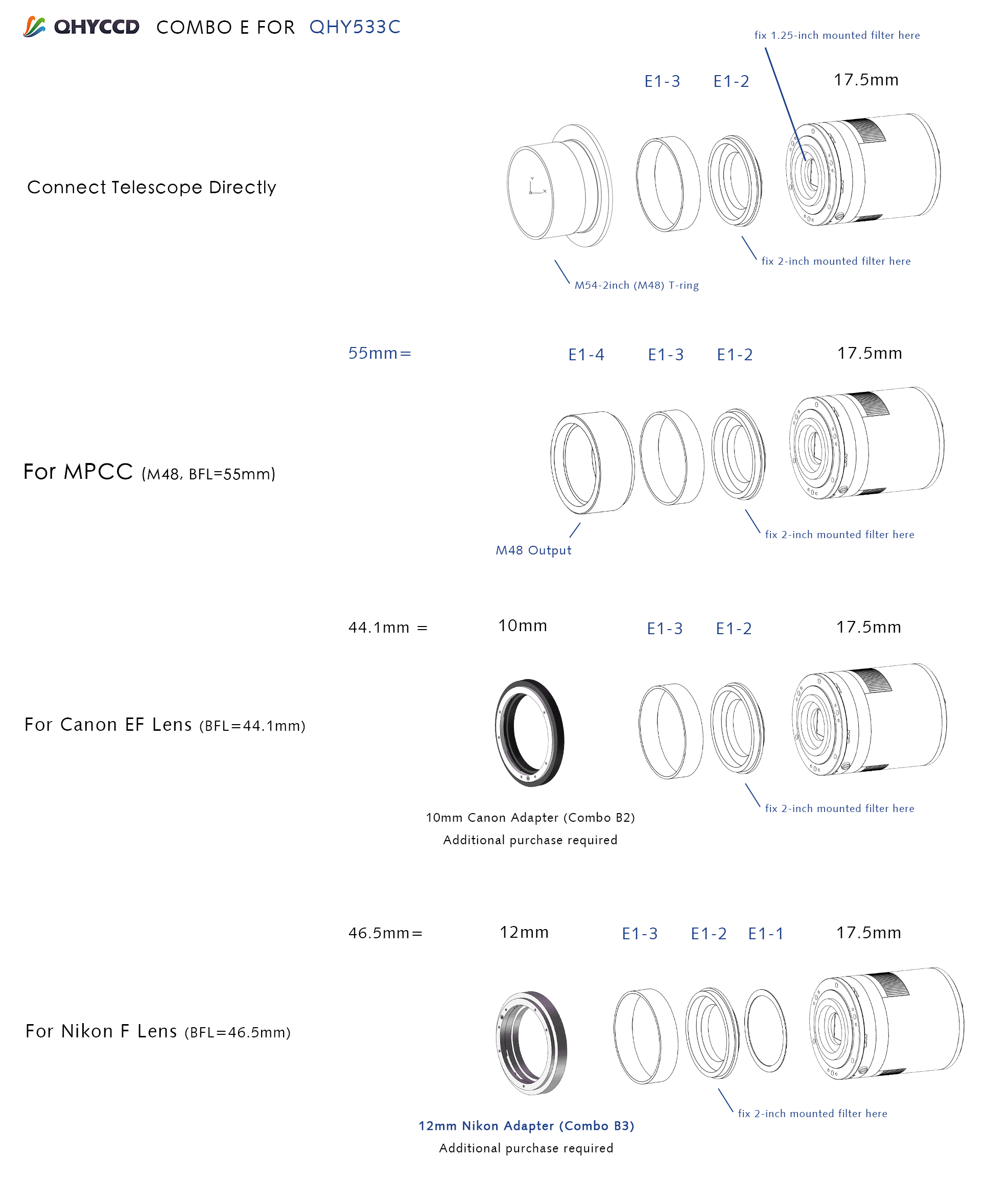

QHY533C image train
