QHY533M
Front view
Rear view

The QHY533M Monochrome Deep Sky Camera is back-illuminated with 3.76um pixels. The QHY533M uses a similar series of back-side illuminated sensors as the flagship models QHY600 and QHY268, featuring low noise and zero amp glow. The sensor is different from other sensors in that it has a square format.

The QHY533M can be directly connected to the QHYCFW3S-SR (for 7×1.25″ mounted or 7x31mm unmounted filters) without removing any part of the filter wheel (like the filter container). This combination has a total back focus of 24mm, and the combination may be attached directly to a 2″ focuser, or combined with an off-axis guider for a total of 55mm between corrector and sensor. The Camera and filter wheel can also be combined with optional adapters allowing you to attach a Nikon or Canon DSLR lens for wide-field work.

The QHY533M also comes with an additional adapter for a tripod interface. This makes it easier to image wide-field targets using a DSLR lens.

QHY533M mechanical drawing

Model QHY533M
Image Sensor Sony CMOS Sensor IMX533
Sensor Type Back Illuminated (BSI)
Pixel Size 3.76um x 3.76um
Sensor Surface Glass Multi Layer AR coating
Effective Pixels 9 Megapixels
Effective Image Area 3008*3028 (includes the optically black area and overscan area)
Full Well Capacity 58ke-
A/D Native 14-bit A/D
Sensor Size  1″ format
Full Frame Rate USB3.0 Port:
Full Resolution  26.5FPS  @8BIT         20FPS @16BIT
2160Lines          37FPS     @8BIT          28.5FPS@16BIT
1080Lines          71.5FPS   @8BIT          55FPS @16BIT
768Lines             97FPS      @8BIT          76FPS @16BIT
480Lines             152FPS    @8BIT          117FPS @16BIT
240Lines             280FPS    @8BIT         215FPS@16BIT
Read Noise 1.3 to 3.4e-
Dark Current -20℃，0.0005e- /pixel/sec
Amplifier Glow Near zero (only visible at max gain)
Exposure Time Range 30µs – 3600sec
Unity gain 68
Shutter Type Electronic Shutter
Computer Interface USB 3.0
Built-in Image Buffer 1GByte DDR3 Memory
cooling System Dual Stage TEC cooler (-30℃ in continuous mode, -35℃ in single frame mode)
Anti-Dew Heater Yes
Telescope Interface
Optic Window Type  AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length See Combo drawings
Weight 845g

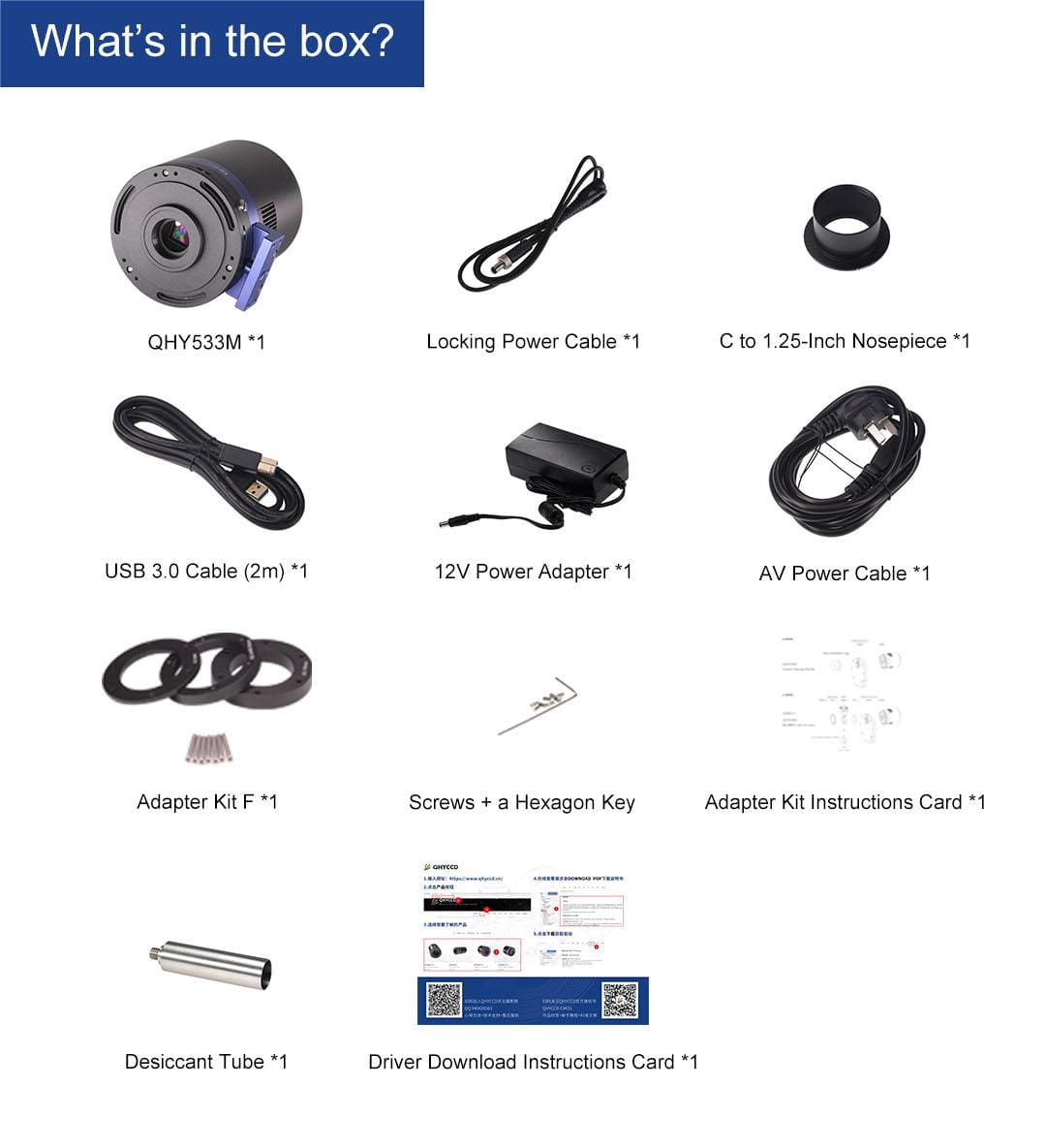

QHY533M contents

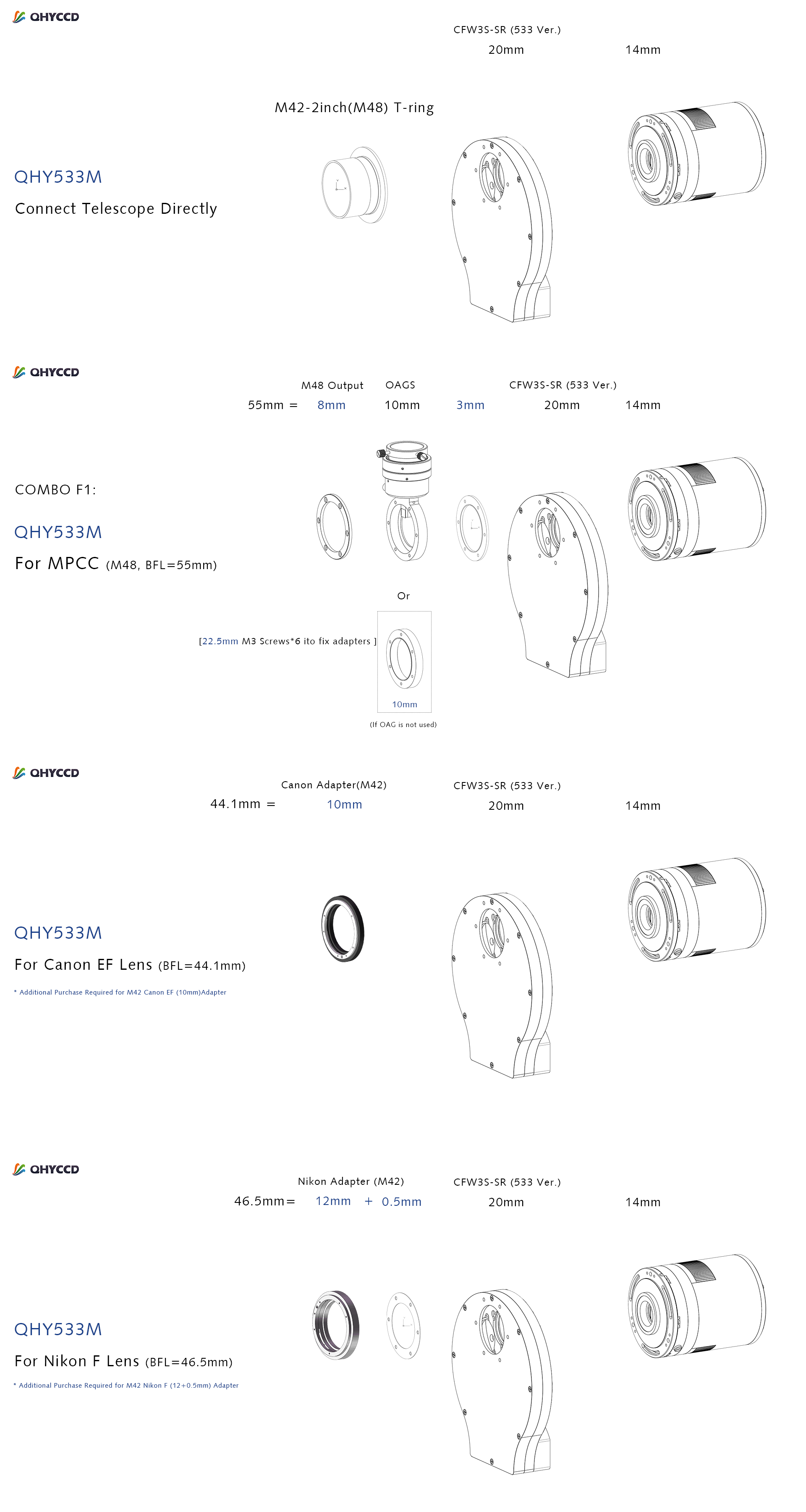

QHY533M Image train
