QHYCCD selected a high quality ultra-thin hybrid stepper motor for the 3rd generation filter wheel design. Compared to the PM stepper motor used in many filter wheels, the hybrid stepper motor has higher precision, smaller step angle, and is more expensive. The motor is enclosed to prevent dust from entering the motor, thus improving reliability and motor life. The direction of filter rotation can be reversed: The filter carousel can be rotated clockwise or counterclockwise to complete the rotation quickly which is very convenient.

The QHYCFW3L (large size) is available with 7 position 2inch mounted/50mm unmounted filter positions.

Model
Thickness
Filter Disk
Available height limitation
(shall consider leaving the gap)
Weight
QHYCFW3XL
21.5mm
7 posiition 2inch mounted

7 position 50mm unmounted

10mm
911g

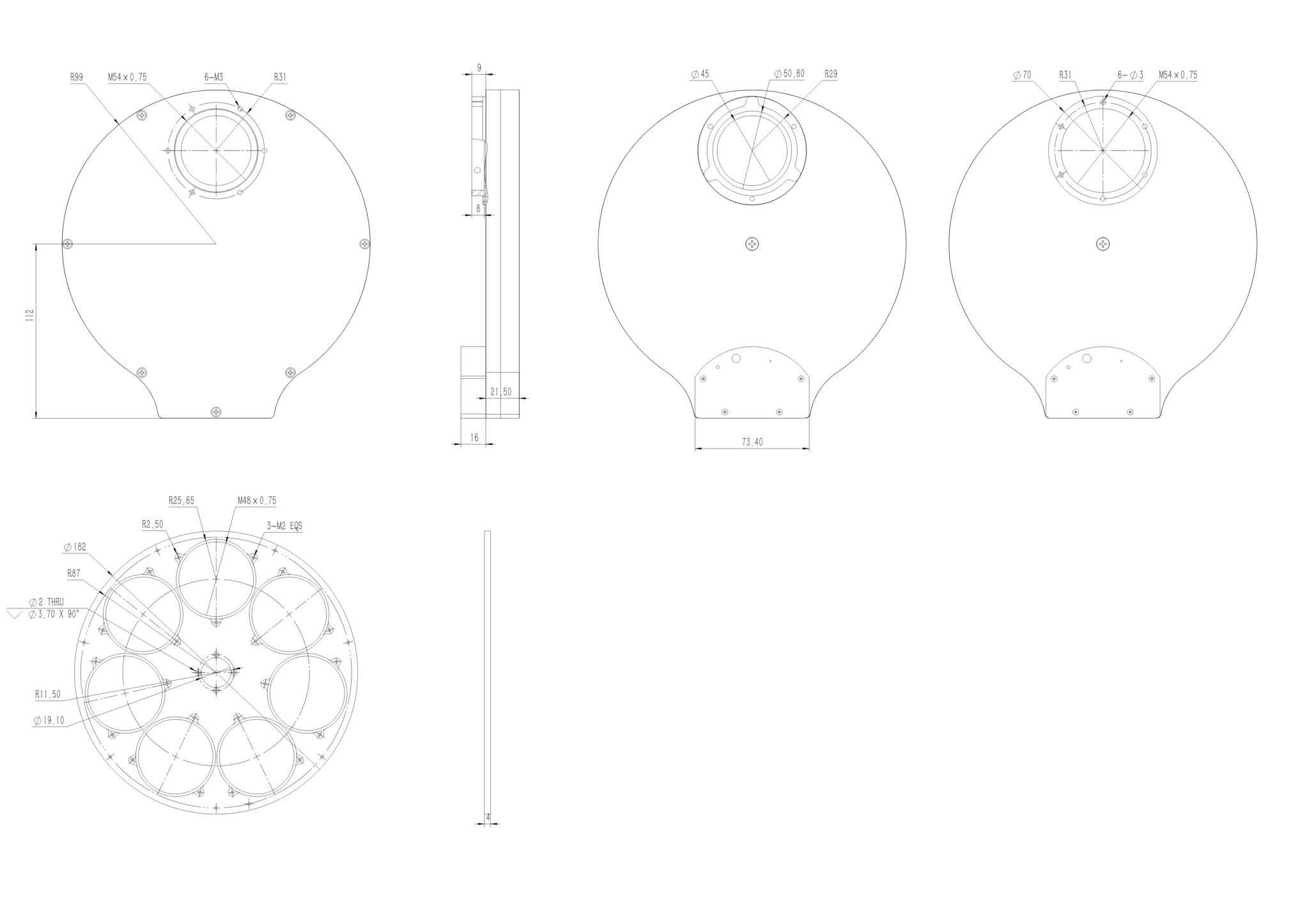

QHYCFW3L Technical Drawing

QHYCFW3L Technical Drawing

Reviews

There are no reviews yet

Be the first to review “QHYCFW3L Large Filter Wheel – Version 3”

Your email address will not be published. Required fields are marked *

QHYCFW3L Large Filter Wheel – Version 3

SKU: QHY-CFW3L

$1,149.00

Available on back-order
