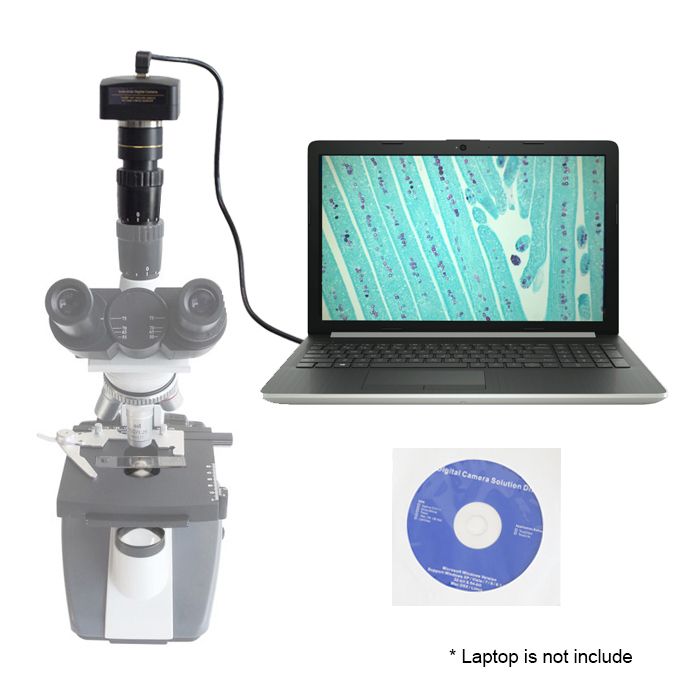

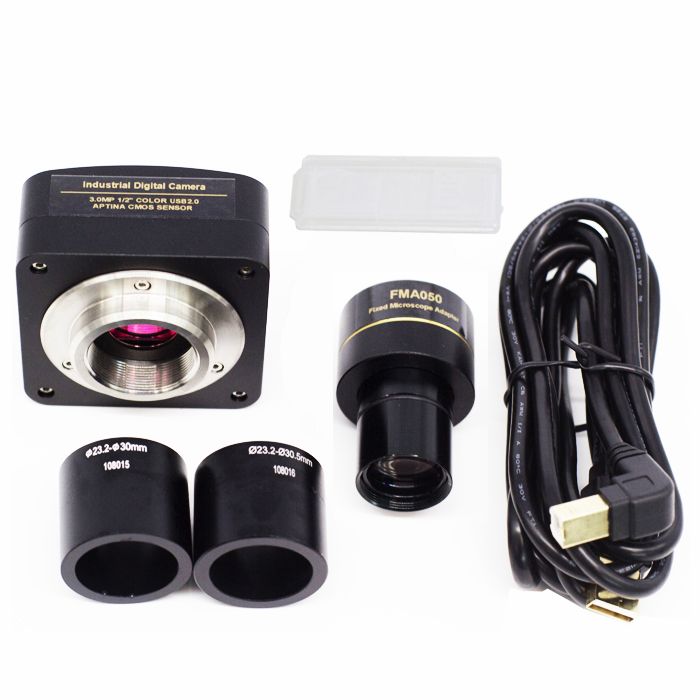

Step into the world of microscope photography with the saxon 3 Megapixel Digital Microscope Camera. This camera fits on microscopes of any size thanks to the included 30mm and 30.5mm adapter tubes. Snap pictures or record videos of specimens, observations, and manipulation.
Hardware Specifications:
| Image Pickup Device | Aptina Mt9T001 CMOS (Colour) |
| Scan Mode | Progressive |
| Max. Resolution | 2048 x 1536 (Approx. 3,200,000 pixels) |
| Sensor Size | 1/2″ (6.55mm(H)x4.92mm(V), Diagonal 8.19mm) |
| Pixel Size | 3.2μm x 3.2μm |
| G Sensitivity | 1.0V/lux-sec (550nm) |
| Dynamic Range | 61dB |
| A/D Converter | 10-bit, 8-bit RGB to PC |
| SN Ratio | 43dB |
| Spectral Range | 380-560nm (with IR-filter) |
| Video Format and Frame Rate | 8fps@2048×1536, 22fps@1024×768, 43fps@680×510 |
| Binning | 1×1, 2×2, 3×3 |
| Exposure | 0.128ms~2000ms, ROI Auto & Manual |
| White Balance | ROI White Balance/Manual Temp-Tint Adjustment |
| Colour Rendering Technique | Ultra Fine Colour Engine |
| Peak Quantum Efficiency | 35% |
| Radout Noise | N/A |
| Extinction Ratio | N/A |
| Smear | N/A |
| Capture/Control API | Native C/C++ SDK, DirectShow, Twain |
| Recording System | Still Picture, Movie |
Optimum Operating Range
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
Software Requirements
| Operating System | Microsoft Windows 7/8/10 Mac OS X Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or higher Memory: 2GB or more USB Port: USB2.0 High-speed port Display: 17″ or larger CD drive for installation |
