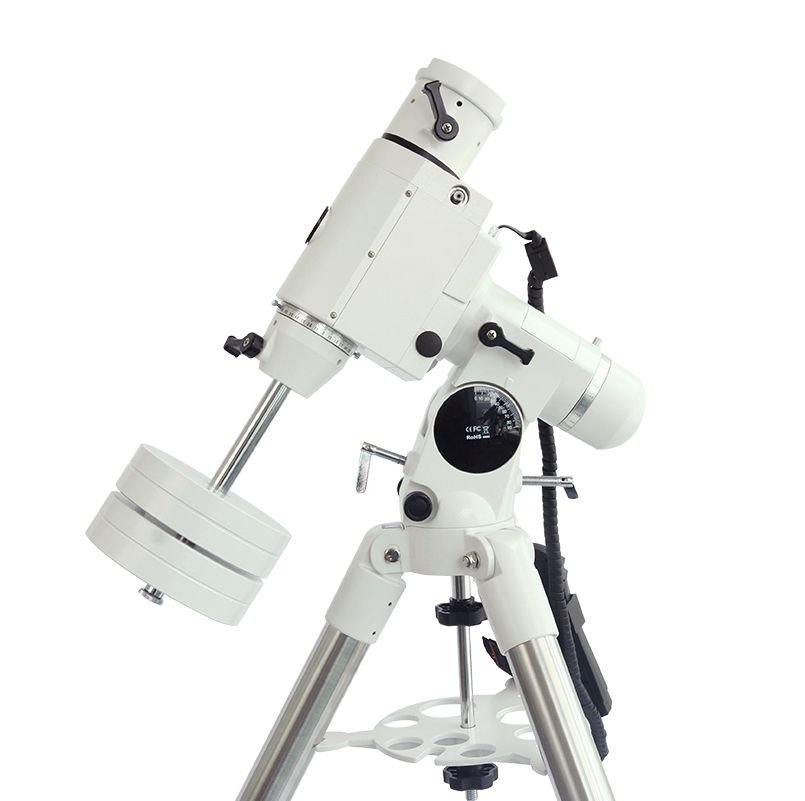

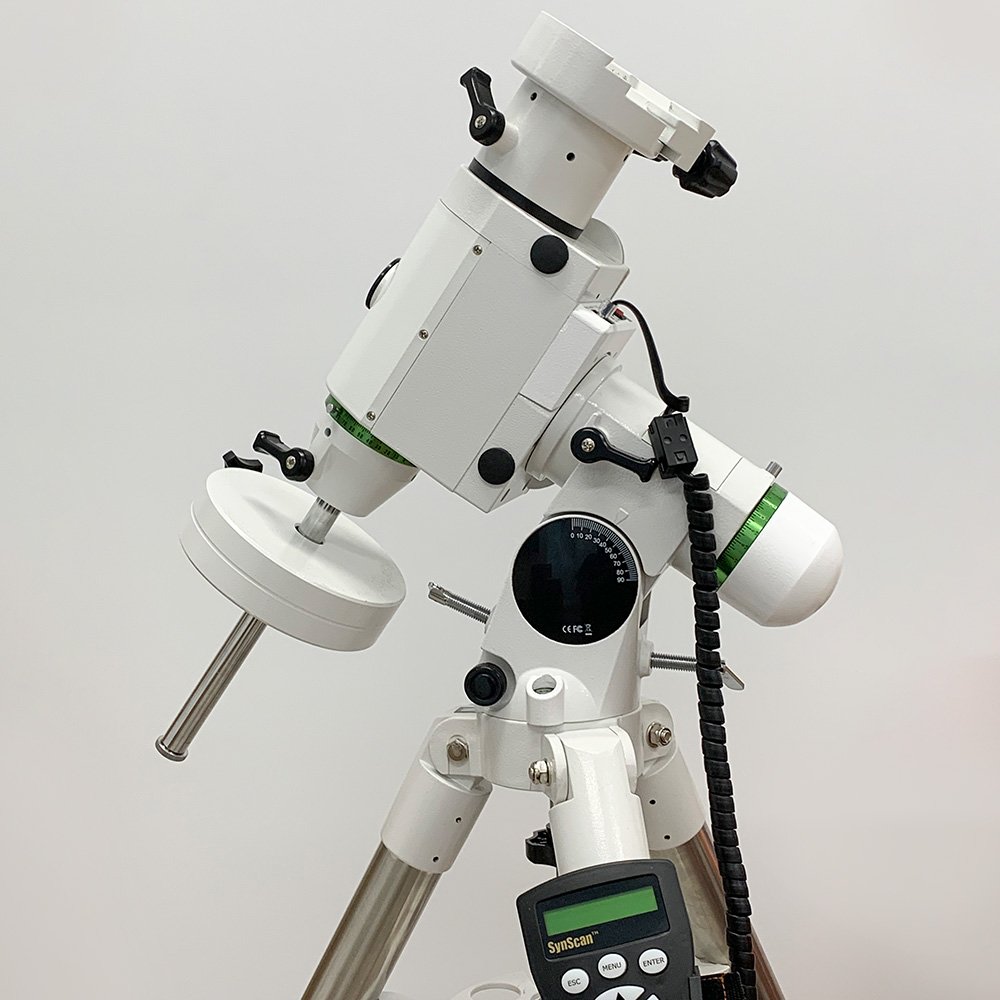

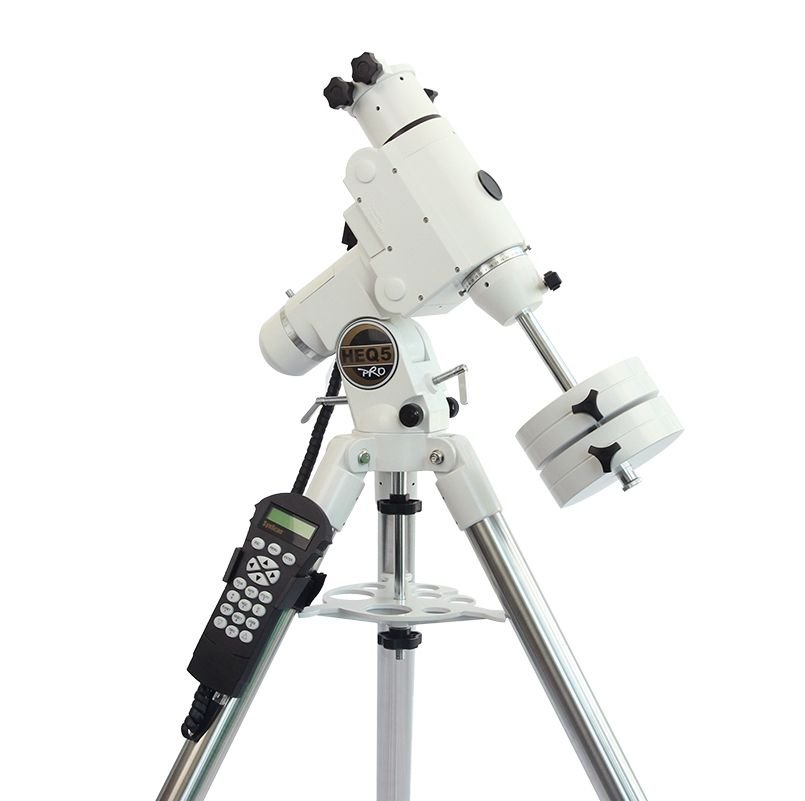

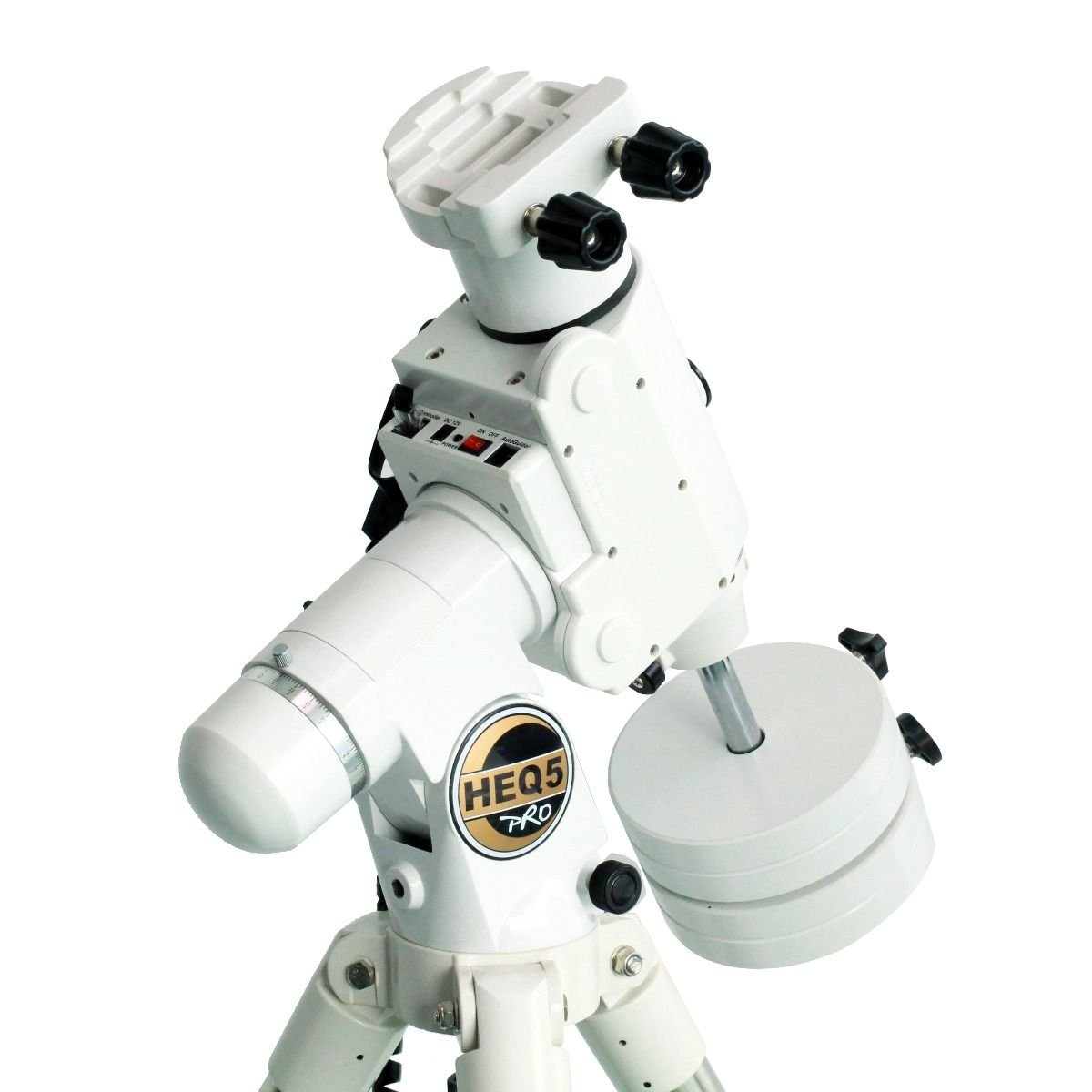

The saxon HEQ5 Pro Mount with Steel Tripod provides the precision and stability needed for serious observing or entry level astrophotography with small refractors.

This HEQ5 Pro mount includes a built-in illuminated polar scope for both Southern and Northern Hemisphere, an altitude adjuster with scale and an azimuth adjuster for polar-alignment, aluminium setting circles, bubble spirit level and steel tubular tripod legs

The saxon HEQ5 Pro Mount with Steel Tripod features and includes the following:

  • A user friendliness Synscan hand controller
  • 2x 5.1Kg counter weight
  • Large accessory tray
  • 1.75″ stainless steel tripod legs
  • Retractable counterweight shaft
  • 1.8 degree step angle and 64 micro steps driven
  • Motor resolution at 0.144arc sec (or 9.024,000 steps/rev.)
  • Slew speeds from 2x, 8x, 18x, 32x, 64x, 400x, 500x, 600x, and up to 3.4°/sec (800X)
  • Sidereal, Solar and Lunar tracking rates
  • One, Two and Three star alignment options
  • Auto guider interface for astrophotography
  • Guiding speed from 0.25x, 0.50x, 0.75x, or 1x
  • Minimal vibration for steady long-exposure astrophotography
  • Payload Capacity 13.7Kg
  • Containing over 42,900 objects with complete Messier, NGC and IC Catalogues.
  • Positioning accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation
  • Periodic error correction
  • Firmware upgradeable via internet download
  • PC Compatibility
  • Car power supply adapter included
  • Requires 11 to 15V DC 2A power supply (not included).
