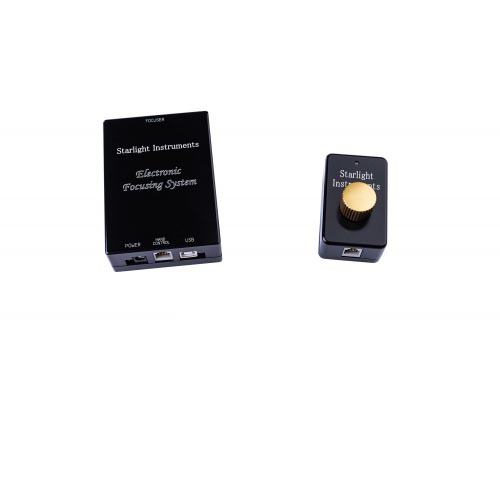

The SI-EFS Electronic Focusing System comes standard with the digital hub and hand controller. Optional Handy Stepper Motors (HSM) are available.
The control box and hand control are lightweight and compact.
The control box is 4.13″ (105mm) long, 2.87″ (73mm) wide and 1.1″ (28mm) thick.
The EFS system draws a maximum 1 amp of power @ 12V
The EFS can be controlled by standard USB cable.
The motors connect to the EFS control hub via Ethernet cable and the hand controller is connected to the EFS control hub via RJ11 cable.
The hand controller has an innovative feature in that you can change the number of steps the focuser moves from 1 step, 10 step, or 100 step increments. This is done by pressing the knob on the hand controller. Each step speed has an LED light mode, RED 1 step, Amber 10 step, 100 Green step.
All cables are supplied with the EFS
