Sky-Watcher Black Diamond ED80 Doublet OTA


    5 in stock

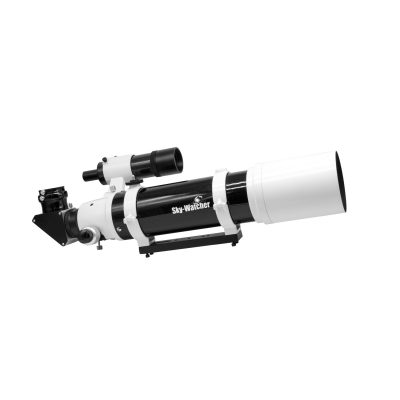

    The Sky-Watcher Black Diamond ED80 is the telescope that heralded in the way of modern imaging. It gave those with a DSLR the perfect OTA for imaging as it allowed for a fully illuminated field in the new wave of APS-C size sensor DSLR cameras. All these years later it is still a great scope for imaging.

    Metallic High-Transmission Lens Coatings

    Each air-to-glass lens surface has exotic anti-reflection metallic coatings applied to ensure optimum light through-put of approaching 99.5%. The proprietary Sky-Watcher “Metallic High-Transmission Coatings” (MHC) are the finest photon anti-rejection coatings in their class.

    Light-Baffled Optical Systems

    The objective lens cell is light-baffled to reject stray, unfocused light. The draw tube is likewise baffled to insure optimum contrast. The tube interior is flat blackened to help prevent unfocused internal light reflections from reaching the focal plane.

    Precision 2” Dual Speed Crayford Focuser is Standard

    Optical focus is achieved by means of a mechanically ultra-smooth, backlash-free, precision 2” Dual Speed Crayford Focuser-assembly. This focuser offers fine and ultra-fine focusing adjustments.

    Tube Materials

    The optical tube material is rolled steel, powder-coated reflective gloss black with gold fleck accent. The front and back cells are cast-aluminum painted white, or black.

    Telescope Tube Attachment Hardware:

    The optical tube comes with attachment hardware that allows it to be securely fastened to any Sky-Watcher mount. The quick-release tube rings provided with Black Diamond 80 ED are cast-aluminium, painted white.

    Included Components

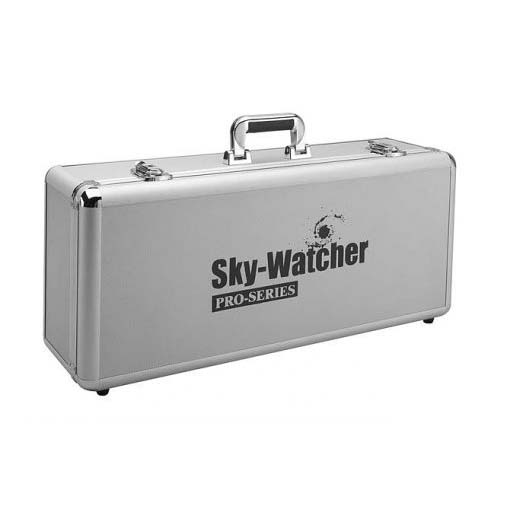

    Black Diamond 80 ED is supplied with 2” Dual Speed Crayford Focusers and a quality foam-lined aluminium carrying case as standard equipment.

    Additional components include:

    • Straight through Finderscope
    • 28mm LET Eyepiece
    • T2 (M42) threaded camera adapter tube. (for connection to an Optional T2-Ring Camera adapter)

    SkyWatcher Black Diamond ED80 OTA Telescope Specifications

    Optical Design ED Apochromatic Refractor
    Diameter 80mm
    Focal Length 600mm
    F/Ratio F/7.5
    Highest Practical Power 160x
    Finder Scope 8X50 straight through
    Focuser Diameter 2″ dual speed, crayford

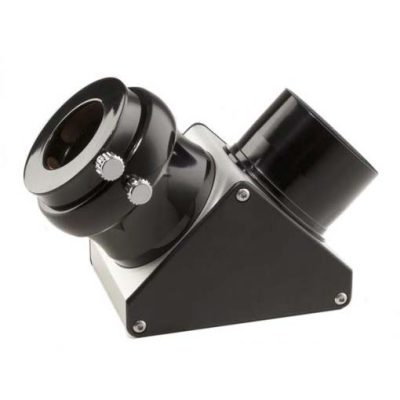

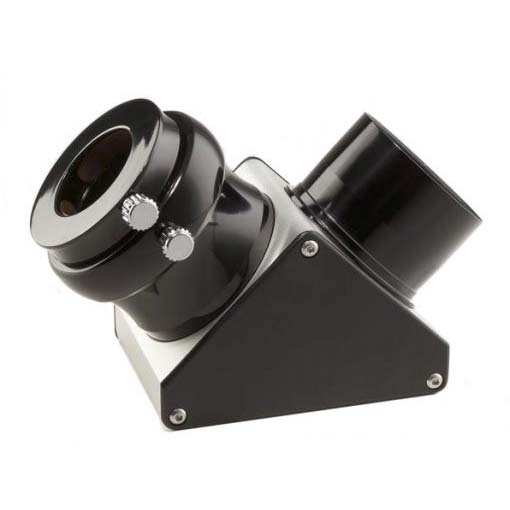

    Diagonal 2″ 90 deg. Dielectric Diagonal with 1.25″ adapter
    Tube Weight 2.47kg
    Tube Dimensions 10 cm x 62cm
    Shipping Weight 8 kg
    Shipping Dimensions 68 x 33 x 23 cm3

      Need Some Help?

      Astrophotography can be a little complicated sometimes and there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!
