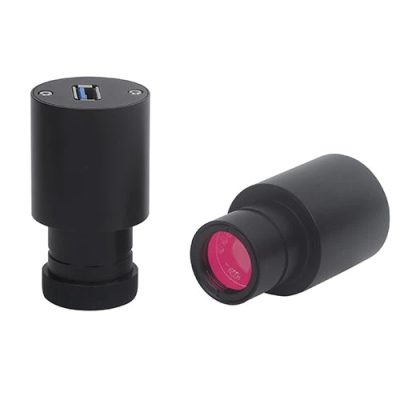

The ToupTek S3C335C Microscope Eyepiece Camera is one of the S3CMOS range of microscope eyepiece cameras. It incorporates a Sony IMX335 colour sensor, and communicates with a computer through a USB3 cable.

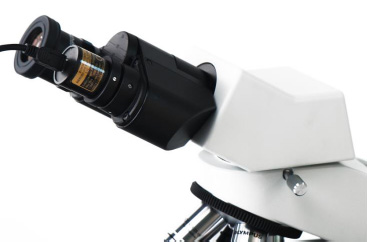

The ToupTek S3C335C is simple and compact, with no need for additional optical adapters. Using the correct adapter ring, the camera can be used instead of an eyepiece in microscopes with 23.2mm, 30mm, 30.5mm or 30.75mm eyepieces.

The S3CMOS camera body is made from aluminium alloy, which ensures a heavy duty, workhorse solution with no moving parts. The camera has a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

The high-speed USB3.0 interface provides a high frame rate that keeps the view on your computer screen smooth without interruption.

Included with the camera is the advanced video and image processing application ToupView.

Specifications of the ToupTek S3C335C

ToupTek part number TP305100A
Sensor name Sony IMX335
Size class 1/2.8″
Size (mm) 5.18 x 3.89
Full resolution (px) 2592 x 1944
Diagonal (mm) 6.52
Megapixels 5.1
C/M Colour
Pixel size (µm) 2.0
Download speed (FPS) 20
ADC 10 bit (12 bit)

S3CMOS microscope camera dimensions

Contents:

  • ToupTek S3C335C camera (23.2mm diameter eyepiece tube)
  • ToupView software, utilities and drivers (may be delivered on a USB stick)
  • USB3 cable

Optional accessories:

  • Adapter ring for 30mm eyepiece tube
  • Adapter ring for 30.5mm eyepiece tube
  • Adapter ring for 30.75mm eyepiece tube
  • Calibration kit

What's in the box



Reviews

There are no reviews yet.

Be the first to review “ToupTek S3C335C 5 Megapixel USB3 Microscope Camera”

Your email address will not be published. Required fields are marked *

ToupTek S3C335C 5 Megapixel USB3 Microscope Camera

SKU: TT-S3C335C

$259.00

Available on back-order

✅ Expert Advice
✅ Australian Owned
✅ Lifetime Technical Support

    Need Expert Advice?

    Visual Astronomy, Astrophotography, Microscopy and Macro Photography can be a little complicated sometimes as there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!

    Enquire now or call us (03) 9042 2293
