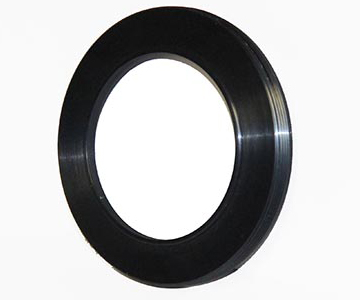

This adaptor connects the TeleVue Paracorr to M68 female thread (TS M68 – Paracorr – M48). Instead of the original 2 inch tube this adaptor is being screwed directly with the focuser unit of the CRL 2.5″ MoonLite focuser (or adaptions with M68x1 female connection). That increases the stability immensely because there is no possibility for flexions anymore. With heavy camera and accessories a clamping connection always offers a slight potential for dislocation. Screw the VIP-2010 directly into the adapter through the TeleVue thread with 65mm diameter and than screw both into the focuser. The adapter makes the right distance 55mm from the camera sensor to the camera.
|Connection thread on the telescope site:||M68x1 male thread|

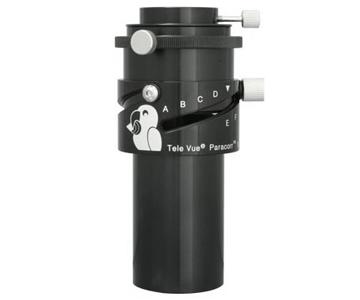

|Connection thread for the corrector:||65mm female thread – fits directly the TeleVue Paracorr and Paracorr II – VIP-2010|
|Connection threat on the camera side:||M48x0,75|
|Mechanical length:||7mm (no optical affection because the adaptor is sinking completely into the focuser unit. You even gain 7mm because the 2inch tube is replaced.)|
|Backfocus from the M48x0,75 thread to the sensor position:||55mm|
