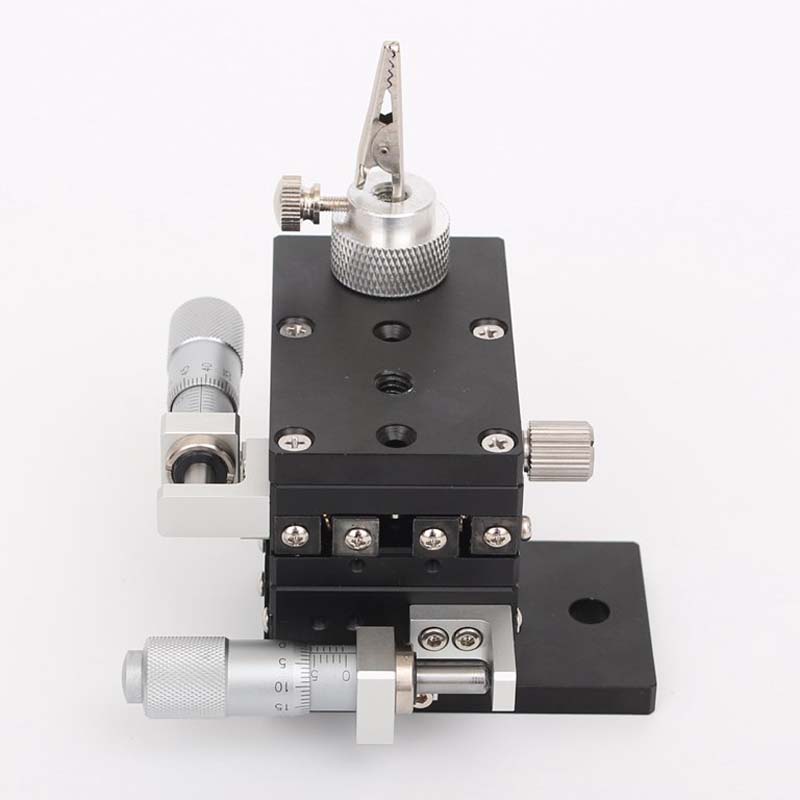

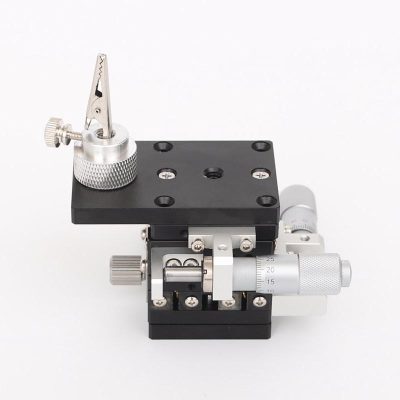

The Fine X-Y adjustment platform provides high accuracy sample positioning.

There is a 1/4 inch threaded hole in bottom. It can be installed using a 1/4 inch bolt (for example on a tripod or the Wemacro Horizontal or Vertical sample stand).

Platform Version 2.0 has  1/4 inch threaded hole on both side so the sample can be set at the side you need. The mark on the knob can be watched clearly.

 Specifications

• Total travel length for each axis is 13mm
• Total height is 52 mm, not include the nut and clip
