The WM001 control box can be controlled by:

• Windows PC by USB
• Bluetooth 4.0 on Android phone
• Bluetooth 4.0 on iphone and ipad (ios 8 at least)
• Mac OS by bluetooth 4.0
• Mac OS by USB

The WM001 package includes:

• WeMacro rail
• Control box (bluetooth build-in)
• Power supply (12V 2A)
• A Power Bank Cable for portable use. (Phone Style Power Bank Not Included)
• USB cable (about 1.5m)
• Stepper motor cable (about 1 m)
• Shutter extension cable (about 1.5 m)
• One 1/4 inch bolt for camera
• One specimen holder (easy to set your sample, there is 1/4-20 Thread in the nut, easy to install on other equipment.)
• A quick release clamp on the rail (new accessory from 2019) .Install the camera in seconds!

Optional Shutter Release Cables are also available.

• Please add a Shutter Release Cable to the shopping cart.

Unique WeMacro rail design features:

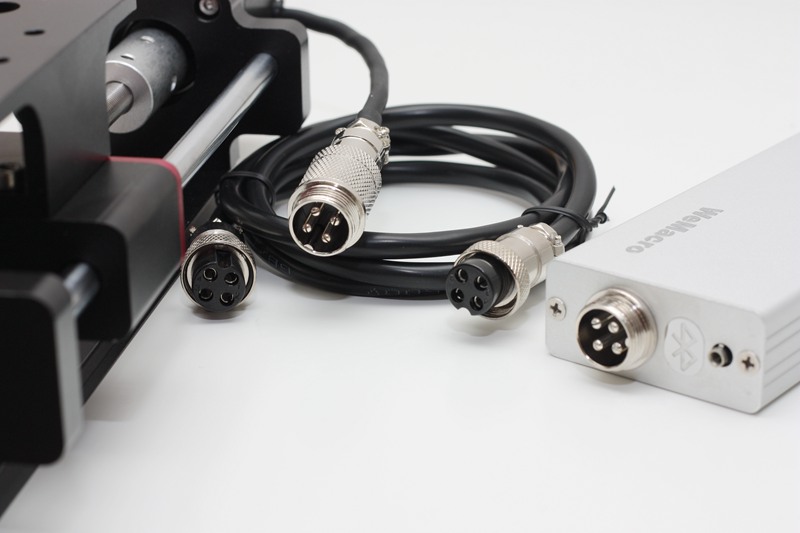

High quality aviation plugs

There are two 1/4-Inch-20 female threaded holes and two 3/8-Inch-16 female threaded holes in the front of the rail which can make the rail be installed vertically.

Multi points to support lens

Some lens, especially, tube lens with Infinity Corrected Objectives are heavy. The body of lens will be heavy and the centre of gravity will amplify the vibration from camera’s mirror.

We provide two M5 thread hole which can support the lens and reduce a lot of vibration.

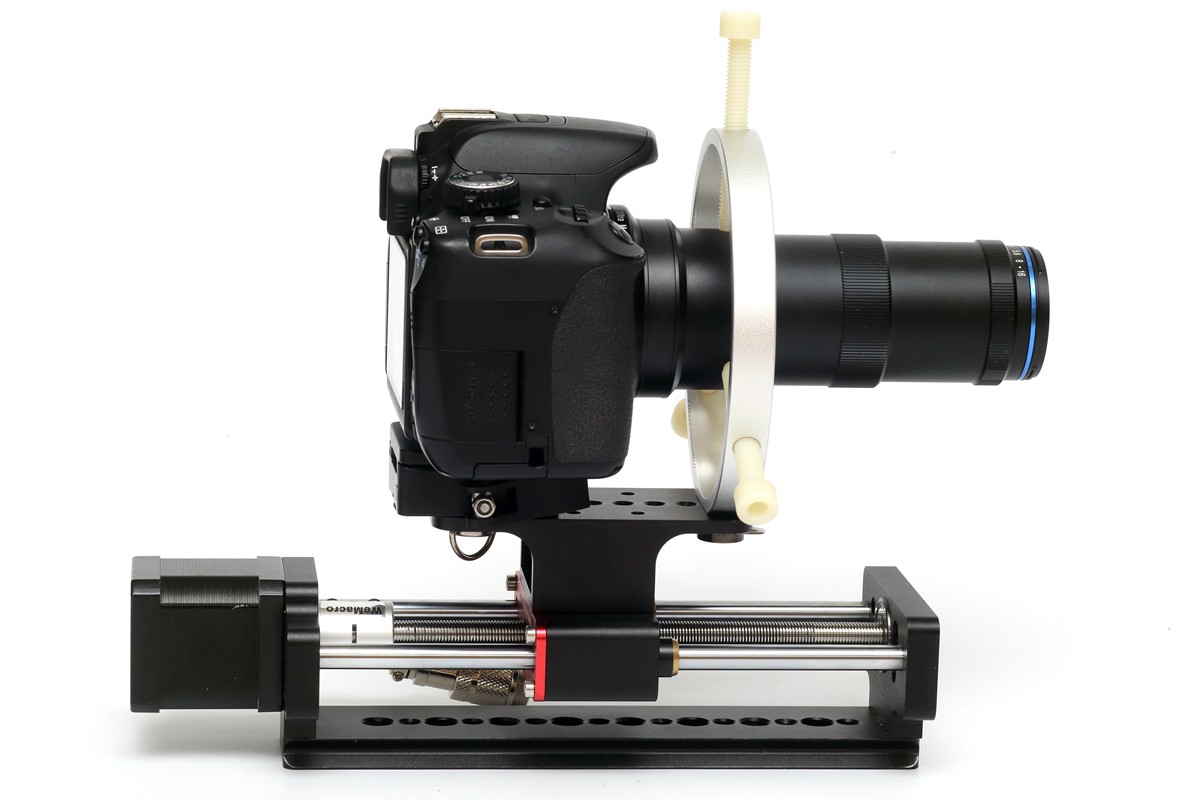

If your lens is long, we strongly recommend adding a Ring Support. It will improve the stability of lens support. See image of Laowa 25mm below.

We recommend Raynox tube lens Pro solution (not included in this package) if you need the best solution for tube lens in WeMacro shop.

The following optional Shutter Release Cables are available:

• 1C For Canon EOS 1100D(Rebel T3), 700D(T5i), 650D(T4i), 600D(T3i),60Da, 60D,70D,80D,90D, 550D(T2i), 500D (Digital Rebel T1i), 1000D (Digital Rebel XS),77D, 450D (Digital Rebel XSi ), 400D (Digital Rebel XTi ), 350D (Digital Rebel XT), 300D (Digital Rebel), Canon EOS 30, 33, 50, 50E, 300V, 300, 3000,RP…etc;
  PowershotG15,G12,G11,G10,G1X;
  PENTAX K-1/K500/K-3II/K100D Super/645D/K-50/645Z/K5II/K-5IIs/K3/K100D/K110D/K10D/ist DS2/K20D/K7/ist Ds/ist/ist DL/MZ-6/ZX-L/MZ-L/ist DL2/K5/K30/KX，Olympus Em-1 Mark II ，Fujifilm X-T3
• 3C For Canon EOS6D,6D II, 7D, 50D, 40D, 30D, 5D, 20D, 10D, 5D Mark II, 5D Mark III,5D IV, 1D X, 1D Mark IV,1Ds Mark III, 1D Mark III, 1D Mark II N, 1Ds Mark II, 1D Mark II.
• 1N For Nikon  D3, D3X, D4, D200, D300, D300S, D500, D700, D800, D800E, D810, D850
• 2N For Nikon D70s,D80
• 3N For Nikon Z6,Z7,D600, D3200,D3300, D3100, D5100,D5200, D7000, D7100,D7200, D5000, D90,D750,D90,D5300,D610,D5500,D7500,D5600
• J for Olympus E-620,E-600,E-550,E-520,E-450,E-420,E410,E-100,E-30,E-PM1,E-M5,E-PL2,E-PL3,E-P3,EP-2,EP-1,SP-590UZ,570UZ,565UZ,560UZ,550UZ,510UZ,810UZ,SZ-30MR,SZ-20,SZ-11，PEN-F
• S2 for Sony A7R3, A58, NEX-3NL, A7, A7R, A7R2, A7S, A3000, A5000, A6000, A6500, HX300, HX50V, RX100II, RX100III
• E3 for Fuji X-Pro2, X-E2S, X70, X-T10, X30, X100T, X-T1, X-E2, FinePixS1, X-M1, X-A1, XQ1, X-A2, XQ2
• S1 for Sony A900, A700, A850, A550, A500, A450, A400, A350, A300, a200, a100, a99, a77, a65, a57, a55, a35, a33
• L1 for Panasonic DMC-FZ50, DMC-FZ50K, DMC-FZ50S, DMC-FZ30, DMC-
  FZ30K, DMC-FZ30S, DMC-FZ20, DMC-FZ20K, DMC-FZ20S, LC-1, L1, G1, GH1, GF1, GH2, G3, GH3, GH4, GX7, S1R
• K70 for Pentax K70. Please choose K70 only if your camera is a Pentax K70.

Note that Nikon D3000 and D3400 can only be controlled by Nikon’s IR-remote in our shop.
