ZWO EFWmini Filter Wheel


or 4 fortnightly payments of $69.75 with Afterpay More info

Available on backorder

SKU: EFWmini Category:

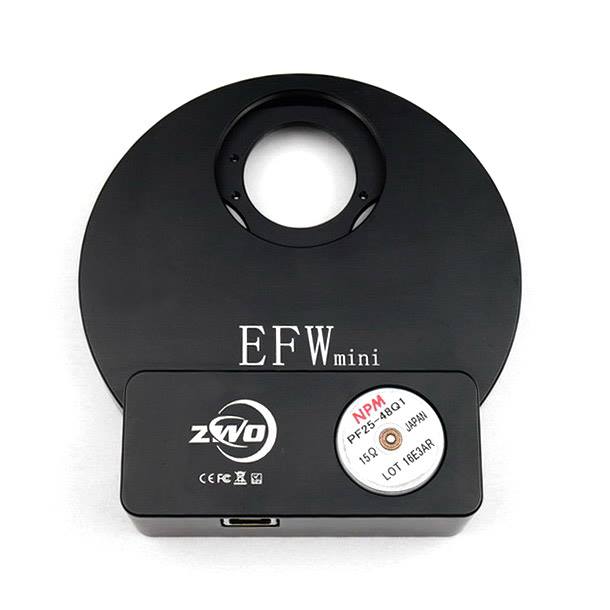

We are very excited to announce the new EFWmini Electronic Filter Wheel from ZWO.

It weighs just 300g and is small enough to fit in the palm of your hand. ZWO say it’s “the smallest and most lightweight 1.25″ Electronic Filter Wheel in the World!” But it’s big on performance –
The body is CNC machined from a full block of aircraft grade aluminium. The profile is very thin at only 20mm deep. It accepts 5 standard 1.25″ mounted filters or 31mm unmounted filters.
Japanese NPM stepper motors are at the heart of the EFWmini so you can trust the quality and reliability!

EFWmini carousel
EFWmini carousel

The carousel holds 5 filters and you have the choice of either 1.25″ mounted or 31mm unmounted filters.
Smart electronics allows the filter wheel to rotate in both directions making filter changing fast and precise.
Only one USB cable is enough to power up the EFW with maximum power consumption of only around 150ma@5V
Even better you can power it from the USB2.0 hub of ZWO’s latest cooled cameras.

ASI1600 and EFWmini
ASI1600 and EFWmini

The distance between the filters and sensor is around 10mm when you connect the ASI1600 to this EFW. This means no vignetting with 1.25″ filters down to f/5. With 31mm unmounted filters vignetting won’t be a problem as fast as f/2.

To coincide with the release of the EFWmini we also have the brand new RGBL filters. The bandpass of these new filters is optimized for the ASI1600 sensor and will produce a near perfect 1:1:1 RGB colour balance

What’s in the box?

The full EFWmini set includes:

EFWmini Body,  T2 nosepiece, 1.25″ Holder-T2, T2-T2, USB2.0 Cable

1.25″ filter requirement: threads length shorter than 3mm, height without threads less than 7mm
31mm filter: the M2 screws and washers needed to install the filters are included in the package

EFWmini Kit Contents
EFWmini Kit Contents

Additional information

Weight 0.5 kg
