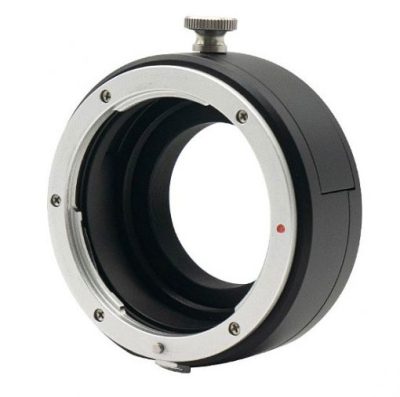

The New ZWO Filter Drawer EOS Lens is independently designed by ZWO and specifically made to match with ASI cooled cameras and EOS lens.

It adds 26.5mm to your image train.

ZWO-FD-EOS

ou can freely use the 2” mounted filter with it.

  1. It’s compatible with all ASI cooled cameras with 17.5mm back focus length (except ASI GT series).
  2. It’s compatible with all ZWO 2” filters, including the duo-band filter, narrowband filter, IR-cut filter, etc.

Below requirements must be met while using the 2” filter from third-party.

ZWO-FD-EOS

With the ability of double strong magnetic adsorption, it is more convenient and much easier to install or pull out the filter.

ZWO-FD-EOS

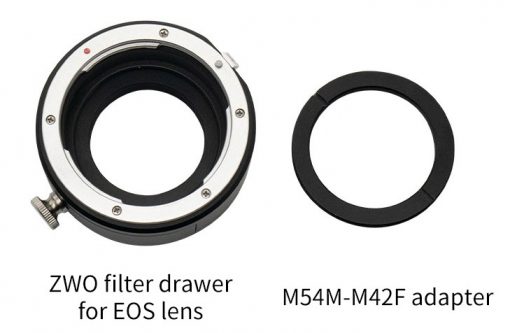

The thread of the interface is M42*0.75. You can also use the M54M-M42F adapter to connect the filter drawer to a full-frame camera.

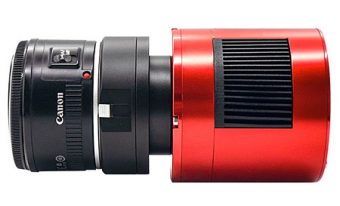

Connecting to your Canon EOS Lenses

ZWO-FD-EOS

With ASI1600/294/183/533:

ZWO-FD-EOS

With ASI6200/2600/071:

ZWO-FD-EOS

ZWO Filter Drawer EOS Mechanical Drawing and Dimensions

ZWO-FD-EOS



ZWO-FD-EOS

The ZWO website is always updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent driver and software has been installed before you start shooting:

It is also recommended to read the Manuals first before shooting.
