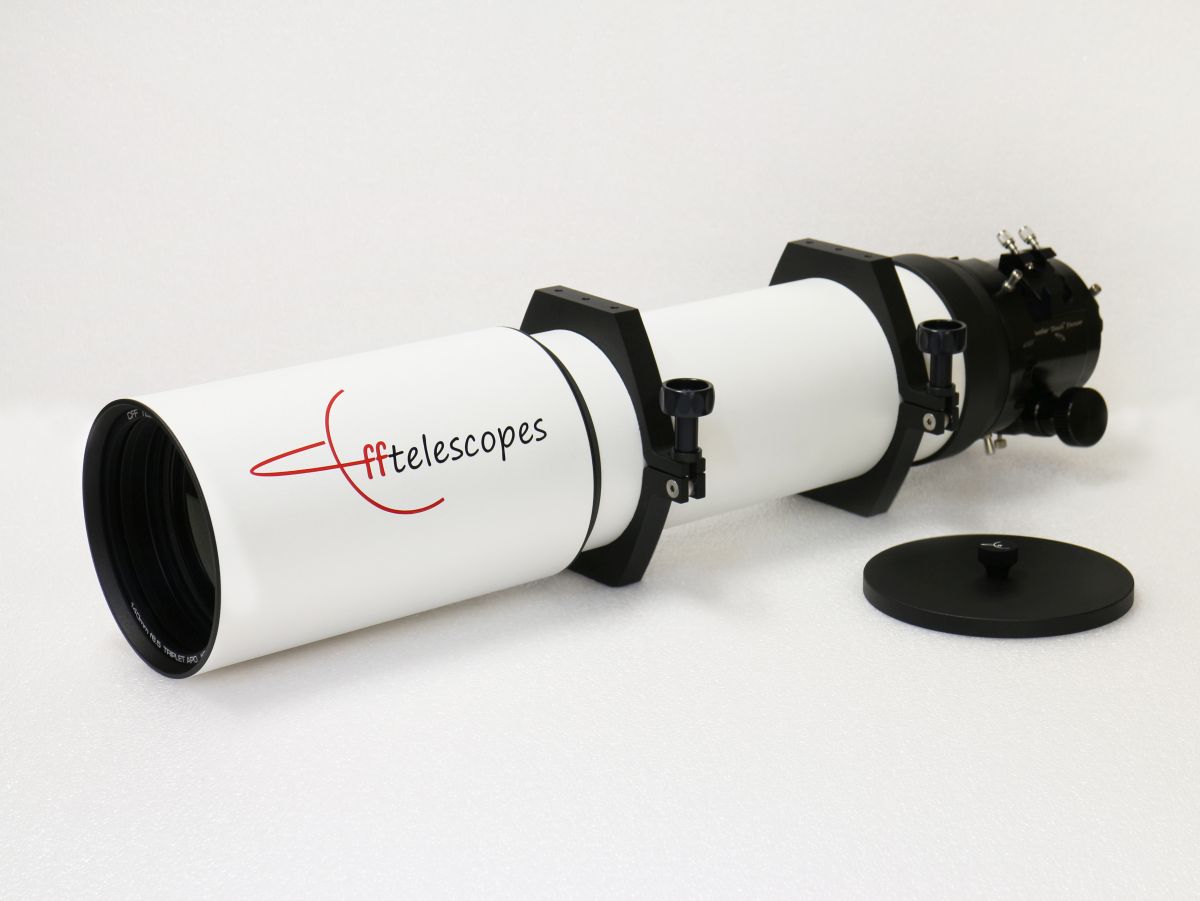

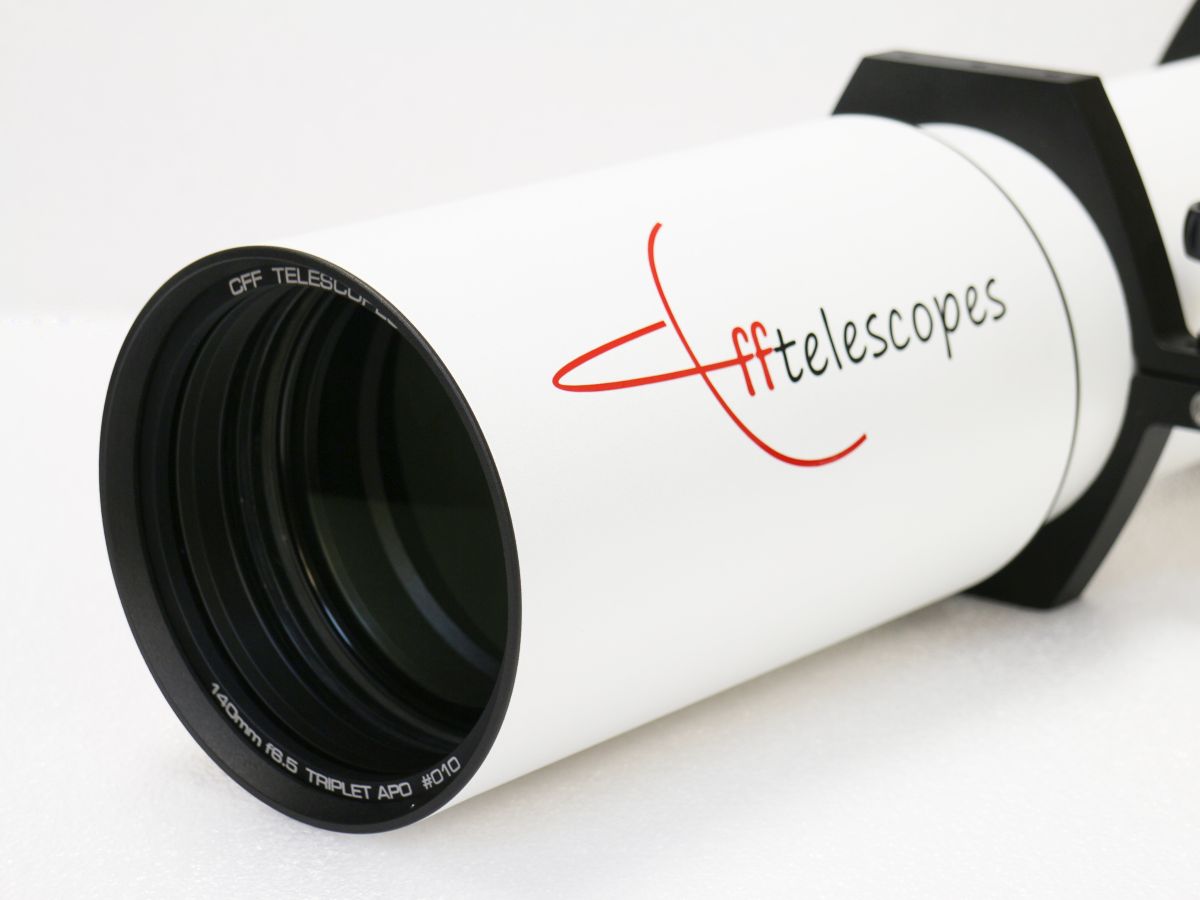

The CFF Telescopes 140mm f/6.5 Oil-spaced Triplet Refractor is a remarkable instrument. It is a medium-size refractor that targets both visual astronomers and imagers alike. Its cell contains hand-finished, European lenses, which provide top quality planetary as well as unrivalled deep-sky views.

Paired with the CFF Field Corrector for Medium Format, the 140 mm F/6.5 is suitable for imagers using sensors bigger than full-frame.

This slightly shorter (915mm) focal length versions is aimed at deep-sky observers but will also suit planetary observers that want to enjoy the best correction possible at the eyepiece. The telescope has a colour correction which is tuned specially for planetary-visual peak wavelengths.

Note: this telescope is manufactured on request.

Main features:

  • 3.5″ rack and pinion type focuser from Starlight Instruments
  • dew shield with rotate & lock feature
  • highly portable, medium size refractor
  • Oil-spaced design for best possible light transmission & highest contrast.





Specifications & technical data:

Core glass used – S-FPL55
Clear aperture – 140 mm
Focal length – 915 mm; Focal ratio – F/6.5
Optical Quality (please click for our optical manufacturing specifications)

Dimensions:

Minimum length – from 780 mm
Back-focus – 180 mm standard or by request, 220 mm
Tube diameter – 145 mm
Dew shield diameter – 164 mm
Weight – 10 kg, including rings.





Included items:

Pair of CNC rings, 1 (one) 350mm dovetail – D-type (Losmandy), transport case.

Mechanical accessories: (sold separately)

Dovetail, D-type (Losmandy), 350 mm length, lightweight
Handle, 300mm length

Visual accessories: (sold separately)

A prism or mirror diagonal will be needed, together with good quality eyepieces, to be able to extract the most of your new telescope.
If the ordered telescope has 220mm back-focus, please consider a 50mm extension for single eyepiece visual use and imaging using a field corrector (no reduction/amplification factor).

Imaging accessories: (sold separately)

Field Corrector  with Corrected Field = ~55 mm
Electronic focuser control (motor with integrated controller, from Optec)
Adapters and extensions to suit one’s observing and/or imaging needs.
