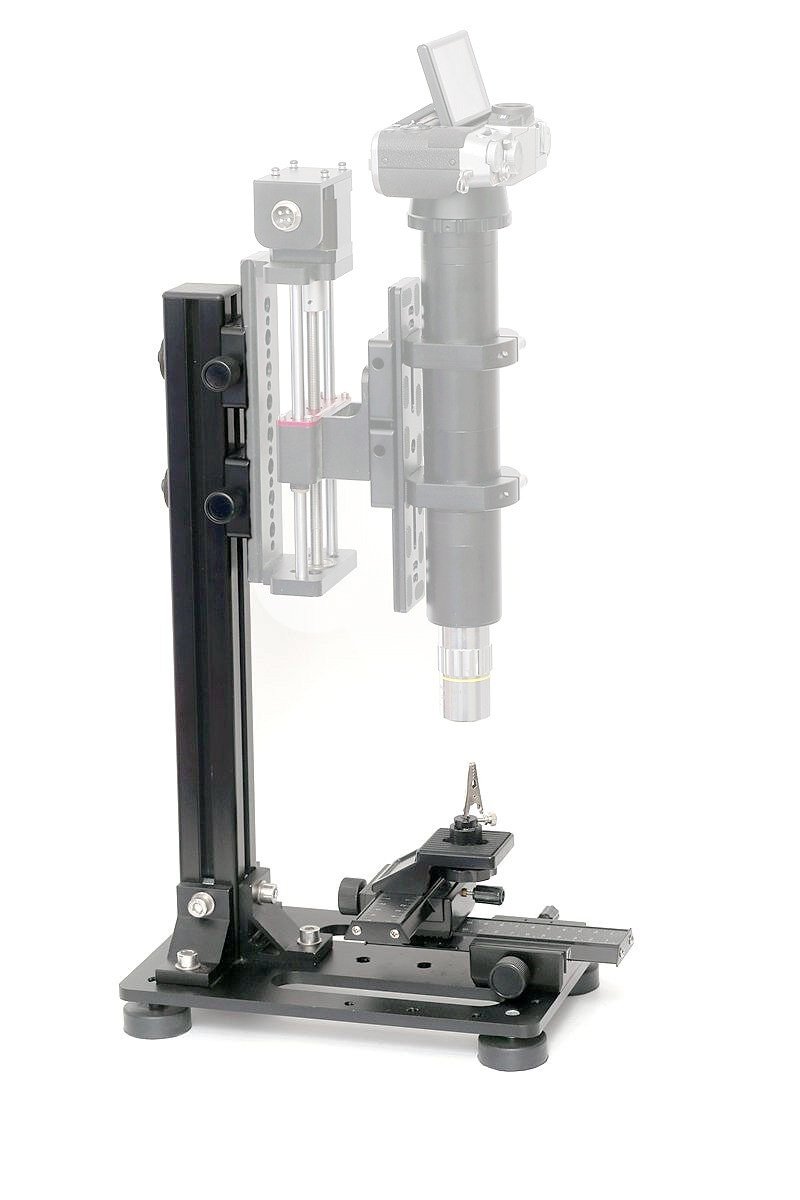

The Wemacro Vertical Stand mounts the Wemacro Focus Rail to work in a vertical or (optional) horizontal position. It can help while focus stacking small specimens such as sand, plant seed, etc. If you need the stand to work in vertical and horizontal positions, choose the Vertical and Horizontal option from the Pillar Setting drop down list.

The Wemacro Stand features:

  • A 4-way slider for accurately adjusting the sample position.
  • Six (6) 1/4 inch threaded holes to install a magic arm or flash light.
  • The rail can be installed by using screws or the quick clamp.
  • Four (4) rubber foot-pads to help reduce vibration from camera.

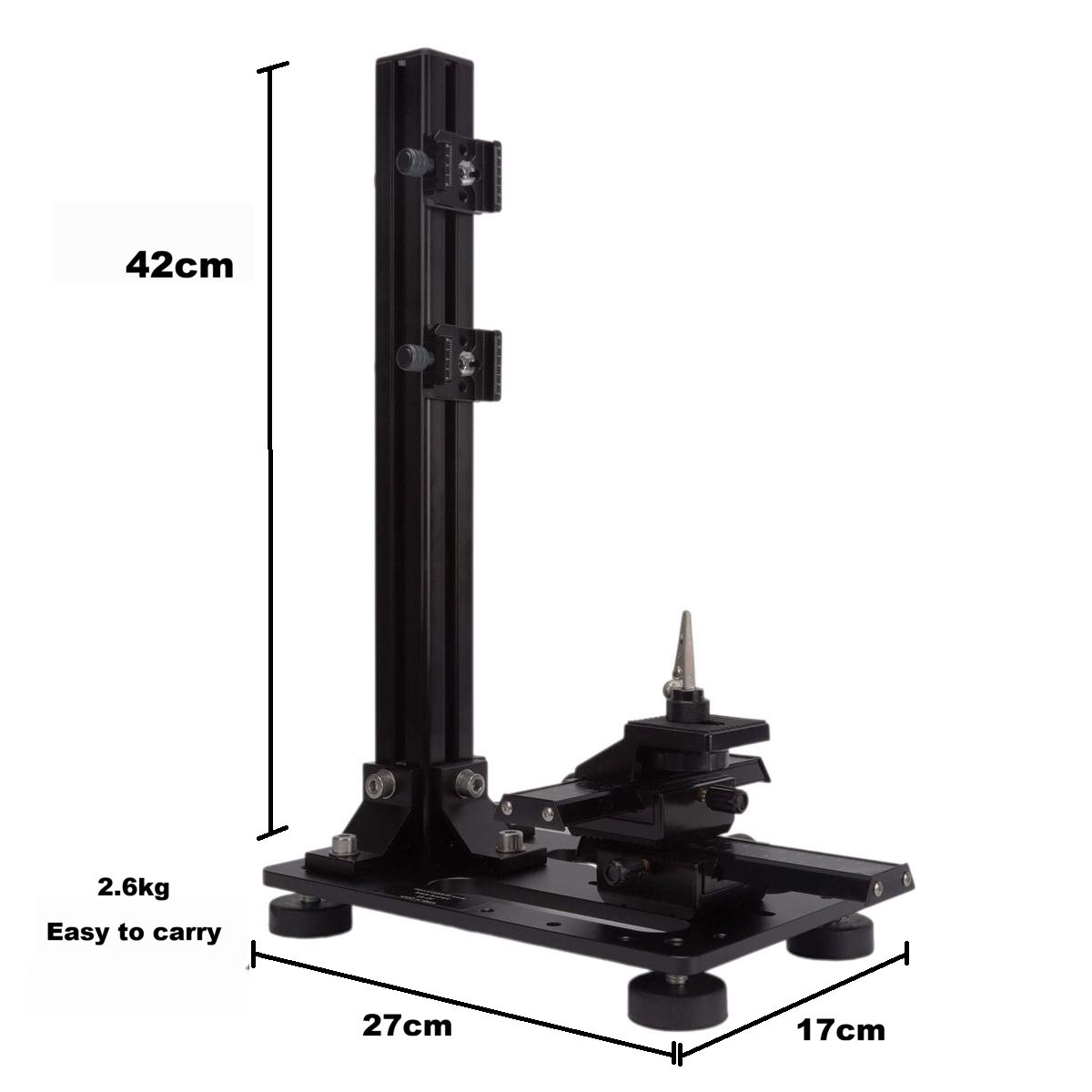

The base of the stand is 27 cm*17 cm, and minimizes the footprint on your desktop with improved stability. (Smaller than A4 paper!)

If you want to use fine X-Y adjustment platform on this stand,please use 2-way slider as the 4-way slider might be too high for some samples.

The pillar itself is 42cm high. The quick release clamp is the version in the picture blow.

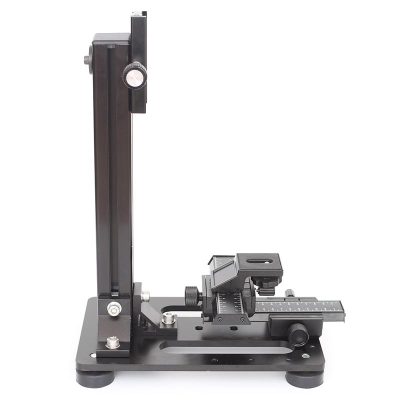

Wemacro Vertical Stand
Wemacro Vertical Stand – Wemacro Focus Rail is not included

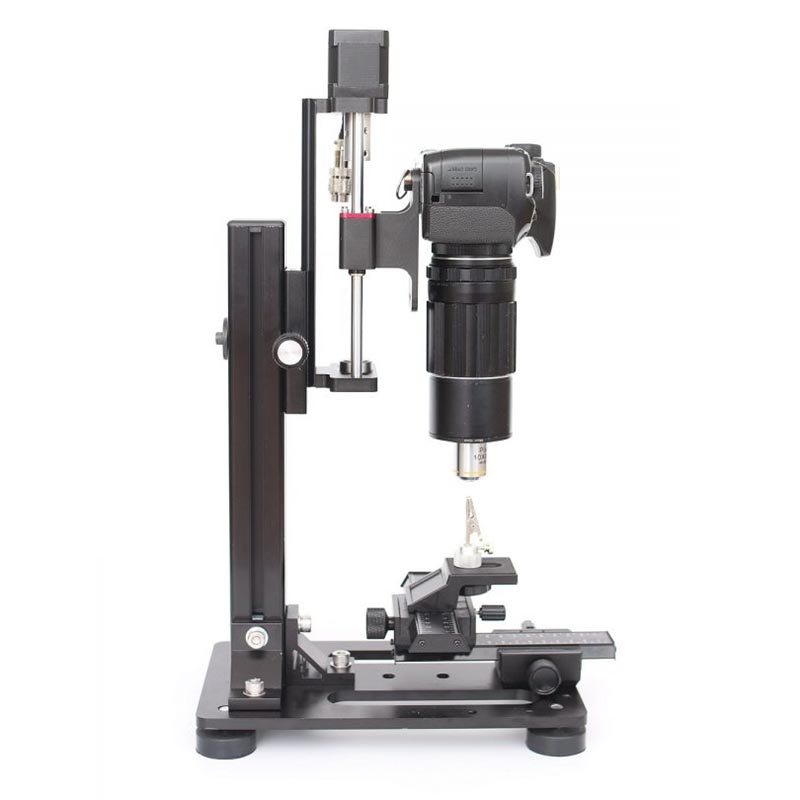

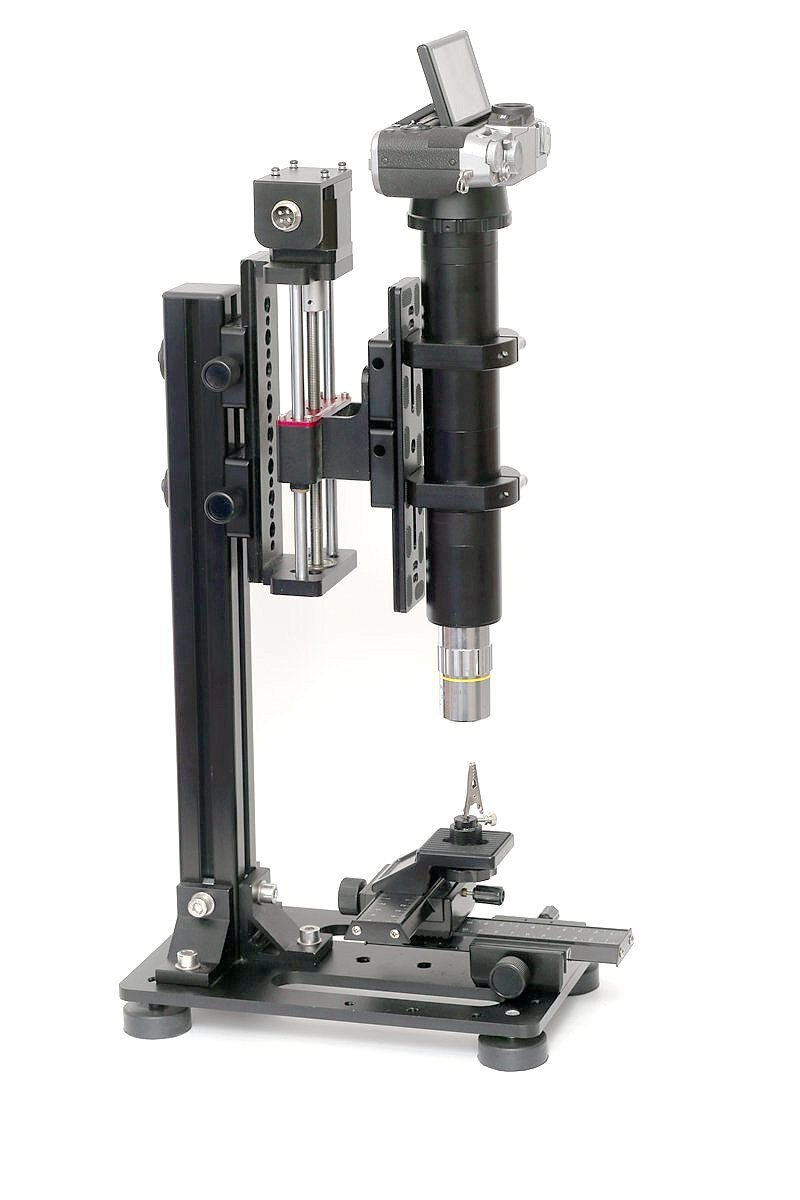

The Wemacro Vertical stand will work with a camera lens as a tube lens (Takumar 200F4 and an infinite objective lens is shown in the image below).

The Wemacro Vertical Stand is also compatible with the 11 inch magic arms. The magic arms are not included in the package.

WVH01 with Magic Arms

Vertical to Horizontal upgrade kit includes: 200 mm plate, L shape corner, 1/4 inch screw, female 1/4 inch  to M8 adapter and nut in pillar.

Wemacro Vertical to Horizontal Stand Upgrade Kit

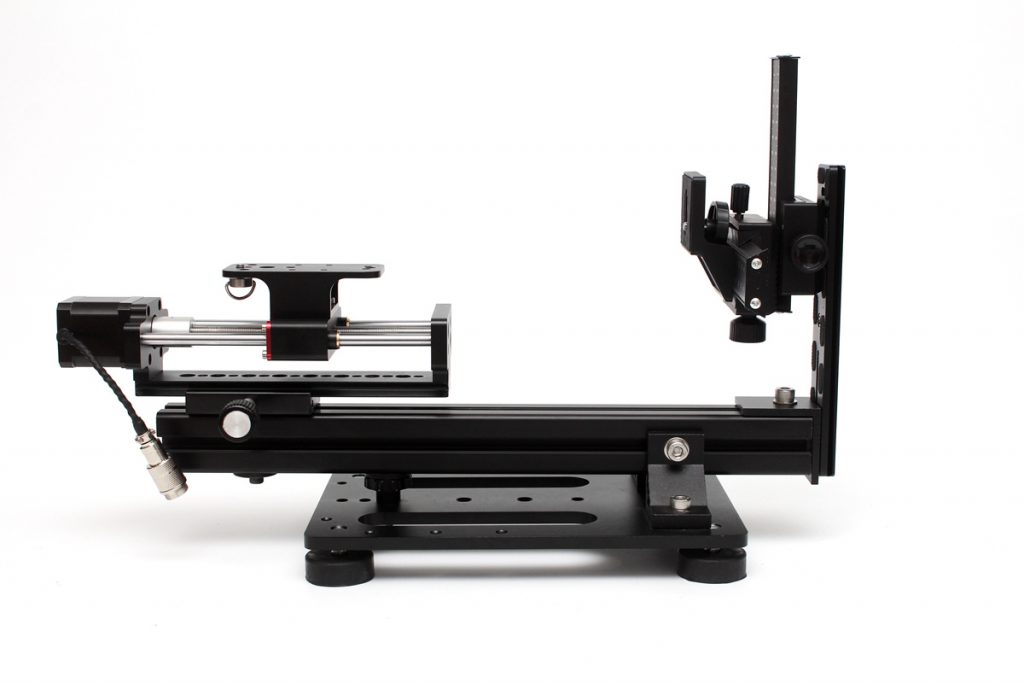

WVH01 in Horizontal Position. (The rail is not included)WVH01 in Horizontal Position

WVH01 in Horizontal Position with MP-E65 and Fine XY platform

WVH01 in Horizontal Position

All parts in the package with the horizontal option.

WVH01 Packing List

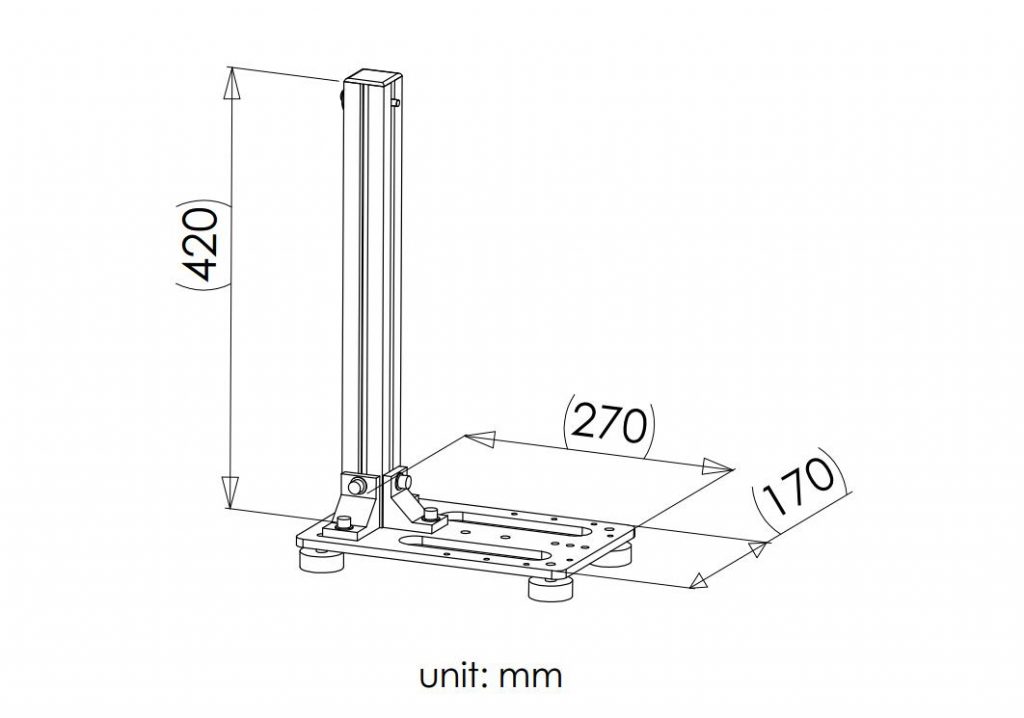

Techincal Drawing:

WVH01 Dimensions
